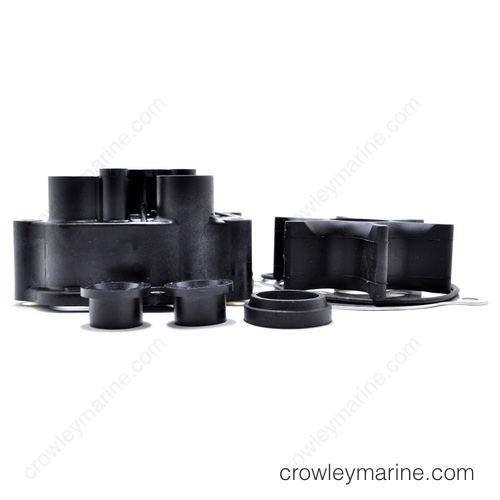

KIT AY,WATER PUMP 0439140
- Guaranteed fitment for 6 different models
- This is an OEM part manufactured by Evinrude & Johnson, OMC
- Flat rate shipping starting at $4.95
- 30 day return policy
Product Description
1 Product Questions
Marshall
Answer:
The kit itself does not come with instructions. Here is a link that may be helpful. https://www.youtube.com/watch?v=vSH042MqBh8
31 Product Reviews
Evinrude 85
115 Johnson
Evenrude 85hp
Johnson 85ph
- Repair Difficulty
- Medium
- Repair Time
- 1 to 2 hours
Problem fixed: Water pump and fuse replacement
Follow u tube.
Johnson 115
- Repair Difficulty
- Medium
- Repair Time
- 1 to 2 hours
Problem fixed: Motor was overheating
Had to remove lower unit , & replace water pump
Jhonson 115hp
- Repair Difficulty
- Medium
- Repair Time
- 1 to 2 hours
Problem fixed: Water pump
Took off shifter by carburetor, took off 4 bolts at bottom, two on top, slid it out and replaced. Put everything back together
Johnson
- Repair Difficulty
- Easy
- Repair Time
- 2 to 4 hours
Problem fixed: Water pump failure
Water pump melt down
Evinrude/115HP
9.9 evinrude
- Repair Difficulty
- lProfessional
- Repair Time
- More than 4 hours
Problem fixed: Old 1974 motor
Still at the shop
Johnson 115cv
- Repair Difficulty
- Easy
- Repair Time
- 30 to 60 mins
Problem fixed: Remplacement pompe à eau
Remplacement préventif de la pompe à eau
1976 Evinrude 85HP
- Repair Difficulty
- Easy
- Repair Time
- 1 to 2 hours
Problem fixed: Waterpump Replacement kit
Just purchased used boat/motor package. Need to replace water pump ass'y for preventative measures. Outboard prop shaft seals are leaking due to fish line.
Johnson 115hp 1975
- Repair Difficulty
- Medium
- Repair Time
- 1 to 2 hours
Problem fixed: Impeller replacement
Old one had been there for a while, glad I replaced it. Base plate supplied needed one hole drilled bigger so all 4 holes would align for the bolts, and it would have been good to get the exhaust rubber gasket and the lower gear case drive shaft seal in the kit. Worth replacing at the same time.
Johnson 115
- Repair Difficulty
- Medium
- Repair Time
- 1 to 2 hours
1975 evinrude 135 lower unit repair
- Repair Difficulty
- Medium
- Repair Time
- More than 4 hours
Problem fixed: Would not stay in gear
Hydraulic assisted shifting pump snap ring fell out of the check valve witch allowed the gears to not mesh fully wearing out the shifting selector gear and forward and reverse matting cogs. Some welding and machining along with parts from Crowley and it's going back together nicely.
1977 85 HP EVINRUDE
- Repair Difficulty
- Easy
- Repair Time
- 30 to 60 mins
Problem fixed: NO WATER OUT PUT
I HAVE A 1977 85 HP EVINRUDE CROSS FLOW DUEL TUB WATER COOLING, THIS ITEM WAS COMPLETE AND IT TOOK ME LESS THAN 45 MIN`S TO REPLACE. GREAT PLACE TO SHOP GOT IT EARLY THANK`S CROWLEY
Johnson 115hp
- Repair Difficulty
- Medium
- Repair Time
- Less than 30 mins
Problem fixed: Impeller housing
Impeller housing was cracked nobody here in town even had the part and said they couldn't order it either. Got on here and boom they have almost eveything for my old 74 115hp johnson.
1973 Johnson 115
- Repair Difficulty
- Medium
- Repair Time
- 2 to 4 hours
Problem fixed: Water Pump not pumping - original
Replaced impeller on water pump. Bought complete pump kit
1973 evinrude 85hp
1975 Evinrude 85
85ESL-74B
- Repair Difficulty
- Medium
- Repair Time
- 1 to 2 hours
Problem fixed: RandR water pump
1st ever boat repair. Took my time and everything worked out well
johnson 85 hp
- Repair Difficulty
- Easy
- Repair Time
- 2 to 4 hours
Problem fixed: had set a couple of years so I decided to check impeller lower unit oil had water in it.
Read repair manual. Drained lower unit & it had water in the oil. I disconnected the shift linkage below carb put in reverse first so when you put lower unit back on you can turn your prop to align drive shaft splines. Pulled apart impeller assembly & found impeller was junk. Ordered new housing & everything that was associated with it also ordered 2 seals for driveshaft they are located underneath impeller housing. Lube drive shaft splines &lube up plastic guides for water tubes & lube the grommets for water tubes on impeller housing. Have some body help you & slide unit back into place. Remember to lube impeller housing with light grease or oil. When installing impeller into housing with housing upside down turn impeller in a counter clockwise direction . Align key way on impeller & driveshaft when installing pump housing. tighten bolts & fill unit from the lower plug until it comes out top plug make sure lower unit is level connect shift linkage. When working on unit make sure the end of shift linkage does not turn so it won't be out of adjustment when you put into gear. FYI I'm a mechanic for 25+ years but this is the first time working on outboard engine.
Customers Also purchased
Supersession Chain
| Name | SKU | Superceding SKU |
|---|---|---|
| Water Pump Repair Kit (Includes Impeller Housing) VIEWING THIS PRODUCT | 0439140 | CURRENT |
| Water Pump Repair Kit | 0386124 | 0439140 |
| Water Pump Repair Kit (Includes Impeller Housing) | 0777807 | 0439140 |
| Water Pump Repair Kit (Includes Impeller Housing) | 0389164 | 0439140 |
| Obsolete BRP Part | 0385993 | 0386124 |
Aftermarket Product Interchange
| Name | SKU | Price | Brand |
|---|---|---|---|
| Kit,Water Pump Repair | 9-48206 | $69.99 | Mallory Marine |
