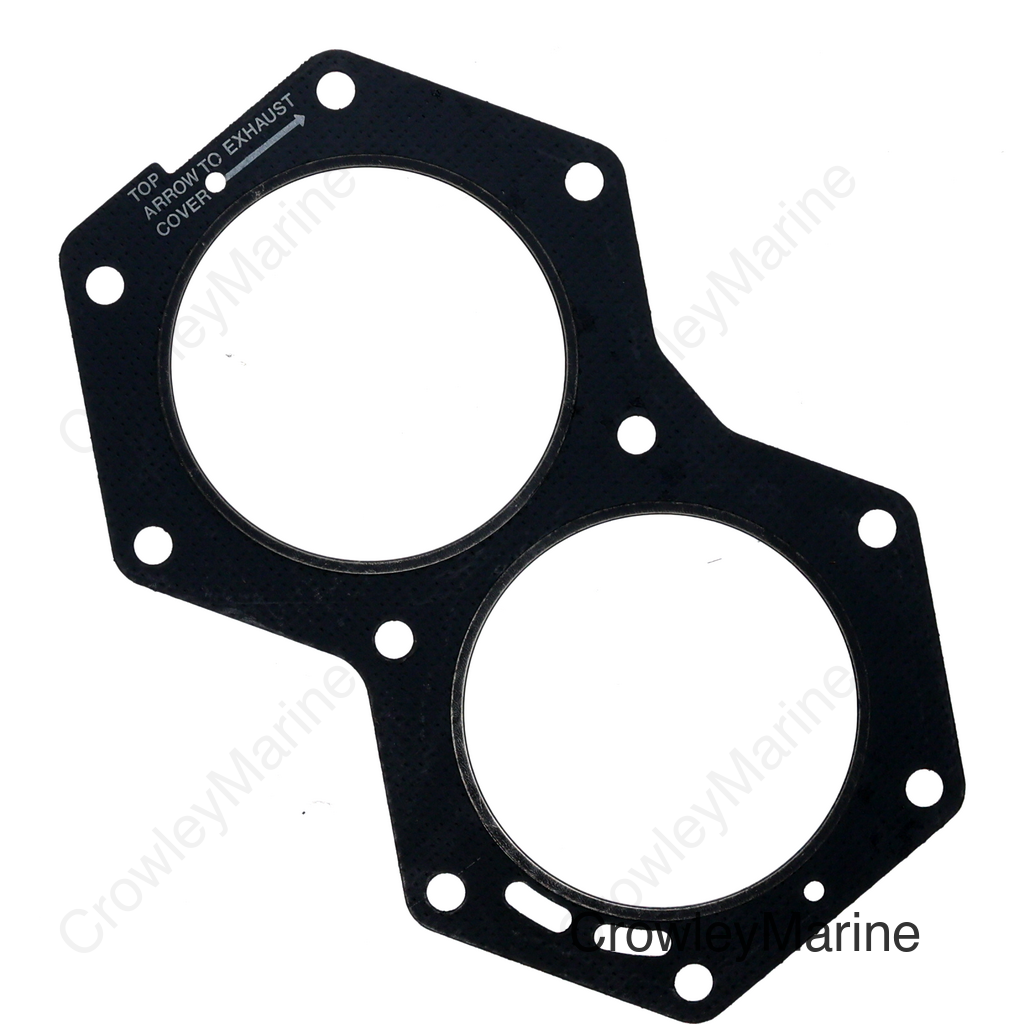

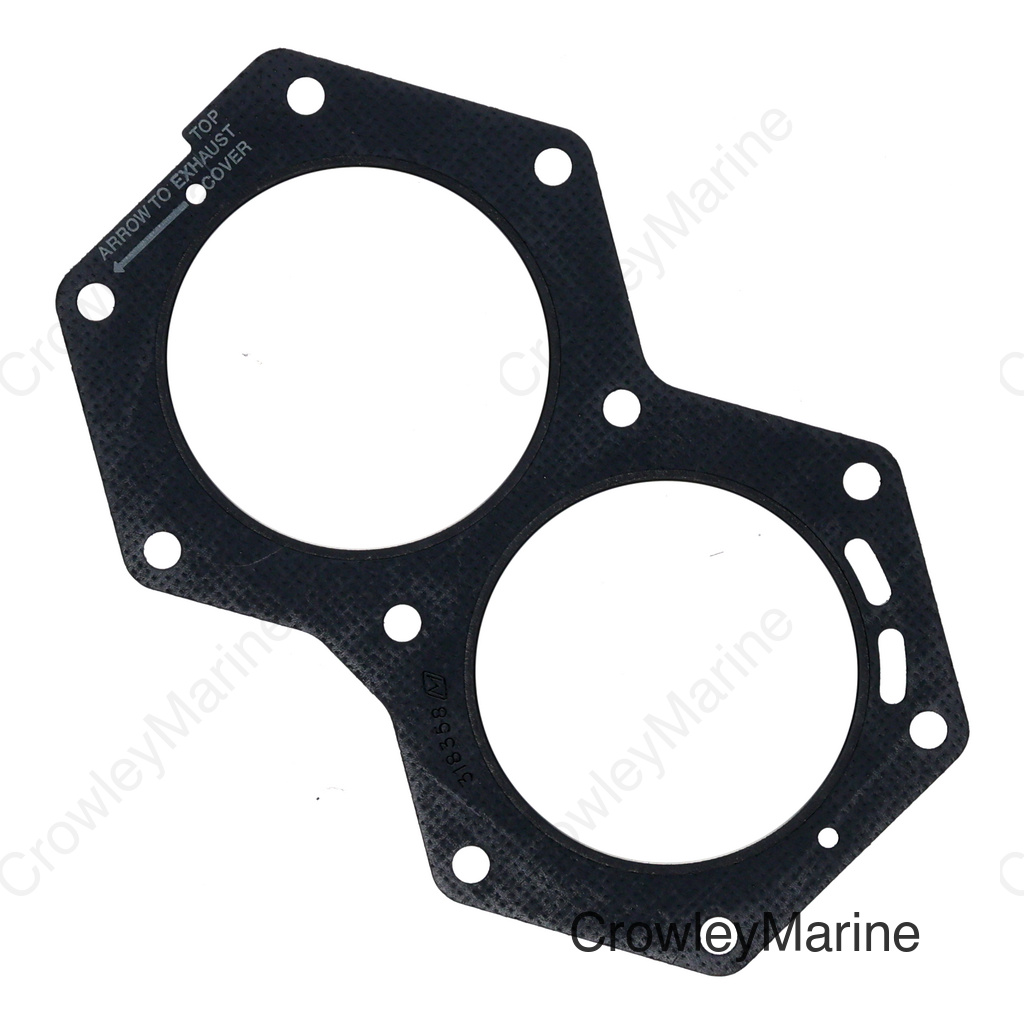

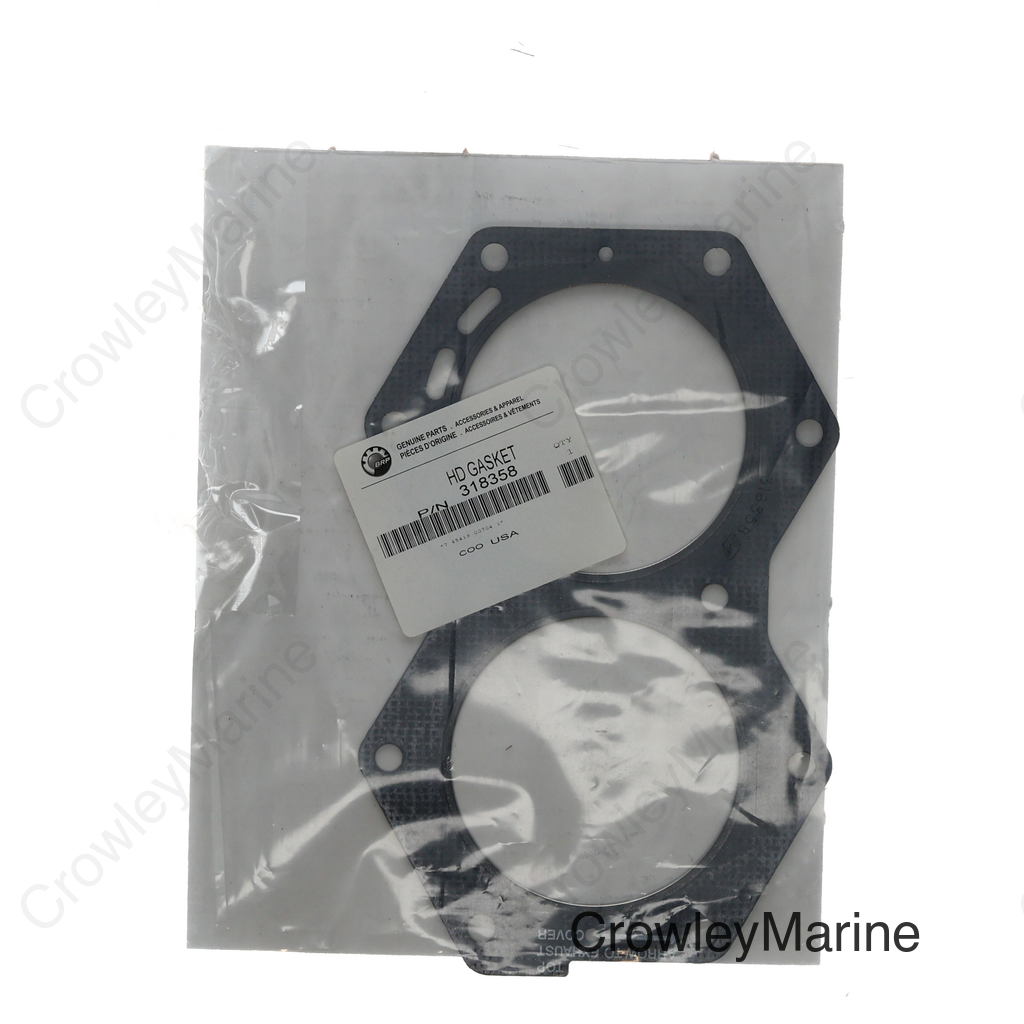

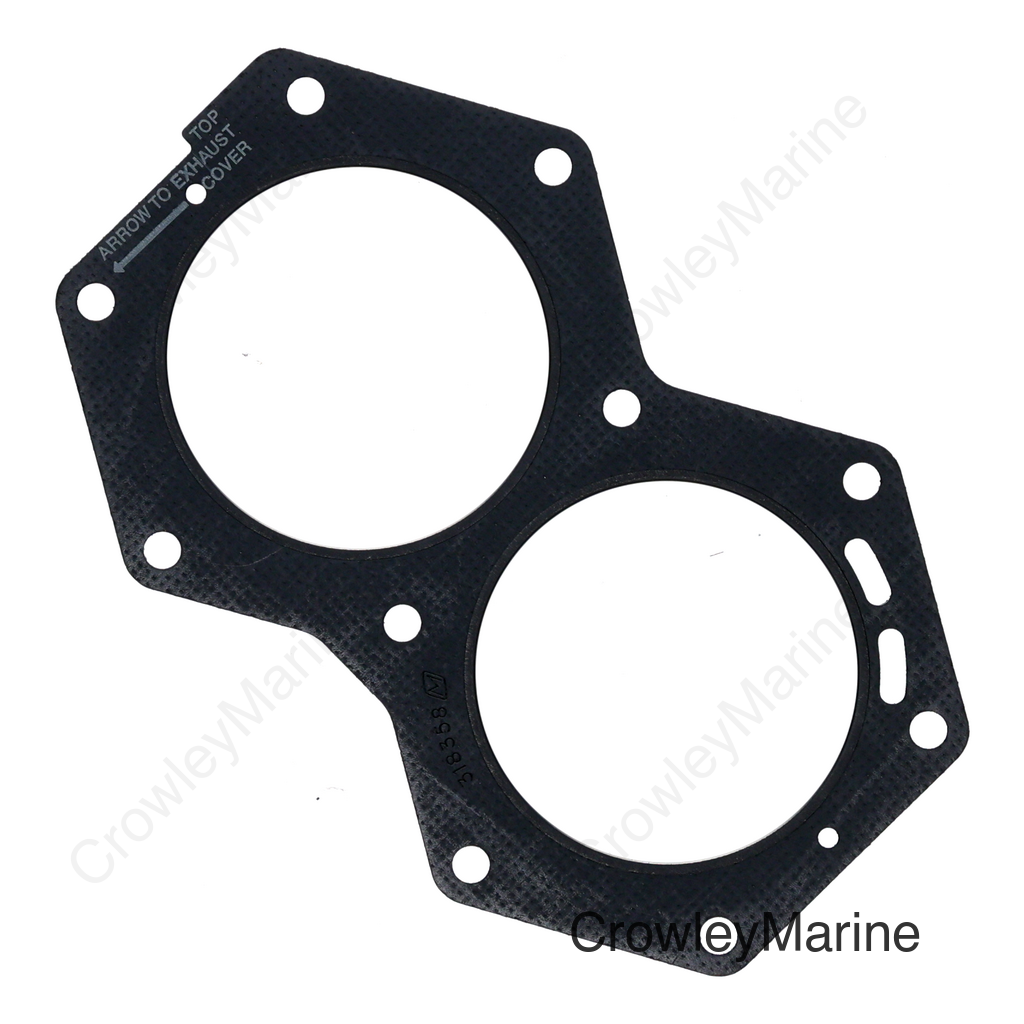

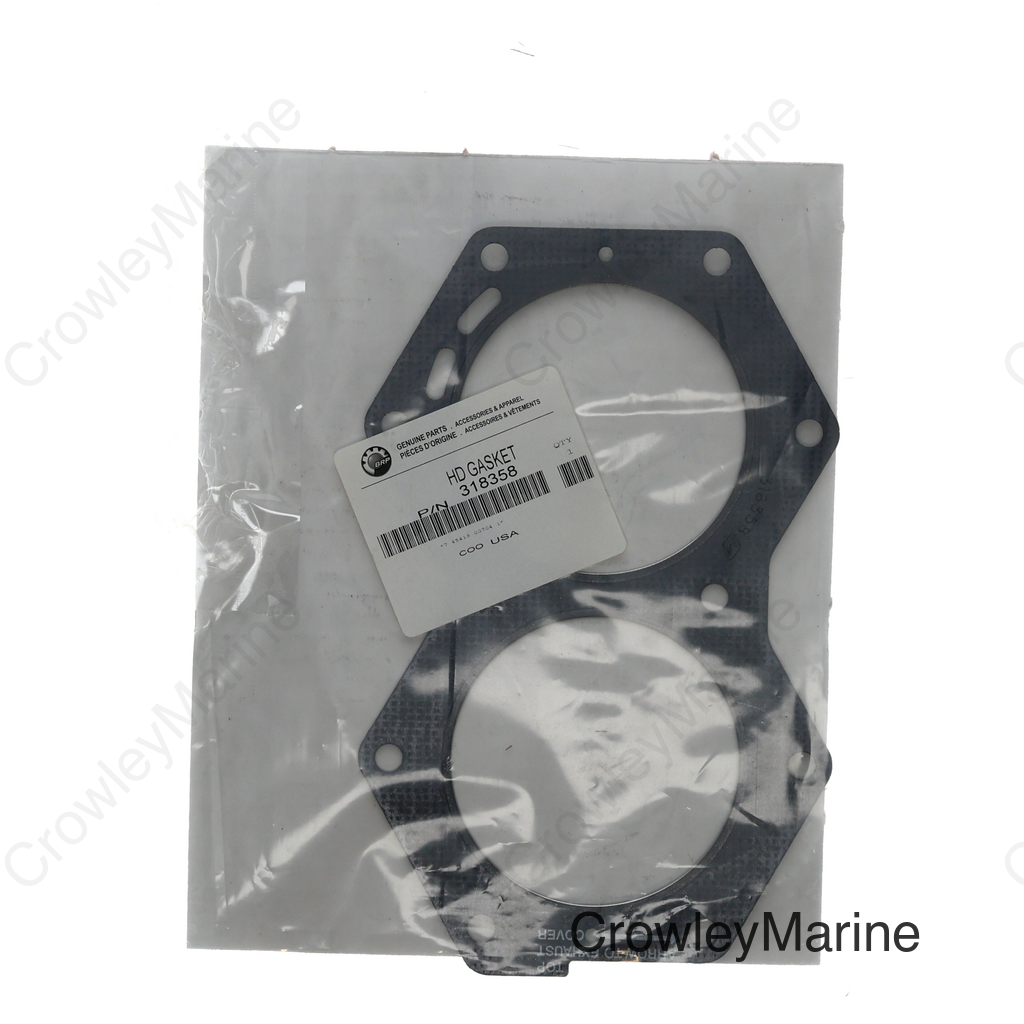

Cylinder head Head Gasket 0318358
- This is an OEM part manufactured by Evinrude & Johnson, OMC
- Flat rate shipping starting at $4.95
- 30 day return policy
Product Description
Product Questions
There are no questions for this product. Ask a new question and receive an answer, directly from our support staff.
48 Product Reviews
Johnson 115
- Repair Difficulty
- Medium
- Repair Time
- 30 to 60 mins
Problem fixed: Low idle and dying during shifting
Determined to be a bad head gasket allowing water into combustion chamber. Replaced head gaskets.
Johnson 90
- Repair Difficulty
- Medium
- Repair Time
- 2 to 4 hours
Problem fixed: Head gasket exhaust gasket
Me and the wife did it in 3 hours 4 hours head gaskets in exhaust gasket we're going to do the water pump this weekend
evinrude 110hp
Evinrude 90hp
1987 90 hp evinrude
- Repair Difficulty
- Hard
- Repair Time
- More than 4 hours
Problem fixed: New piston and rings
Over my head
Jonshon 140 hp
Evinrude 115 turbojet
- Repair Difficulty
- Medium
- Repair Time
- More than 4 hours
Problem fixed: Low power engine overheating
Engine was overheating. Removed heads and found heads were packed with sand. Cleaned and resealed. Overheating went away on STBD head remained on port. I removed engine to have access to base plate. Found plugged exhaust ports removed plates and fittings and cleaned plugged fittings replaced.
Evenrude 85 hp
- Repair Difficulty
- Medium
- Repair Time
- 1 to 2 hours
Problem fixed: Leaking water from head
115 Evenrude
- Repair Difficulty
- Medium
- Repair Time
- 2 to 4 hours
Problem fixed: Water leak on port head,gummed up carbs
Removed both heads to check for blockage None found but found gasket blown out at bottom causing water leak cleaned up mating surfaces and assembled heads back on removed carbs,cleaned up float bowls and reinstalled changed all hoses as they were old and crispy
evinrude v4 90
115 evinrude
omg/evinrude 90 1992
- Repair Difficulty
- Medium
- Repair Time
- 2 to 4 hours
Problem fixed: overheating at half throttle and up
pulled both heads and cleaned water jacket area replaced diverters hope that fixes it cleaning parts took the most time
1983 Evinrude 140Hp
- Repair Difficulty
- Hard
- Repair Time
- More than 4 hours
Problem fixed: Had to remove Power Head
Engine developed a water leak due to cracked water jackets in the two bottom cylinders. This was most likely caused by freezing due to water not draining completely out. Perhaps motor not tilted back enough. Only way to get at these areas to weld. had to pull power head which required a new gasket between the power head and the lower unit along with head gaskets that I previously bought from Crowley's. They are a great supplier of OEM parts!
Evinrude E90, 1983
1984 Johnson 140hp V4
- Repair Difficulty
- Medium
- Repair Time
- 2 to 4 hours
Johnson 115
Omc 115 turbojet
140 Johnson
- Repair Difficulty
- Easy
- Repair Time
- Less than 30 mins
OMC 115HP Jetted
- Repair Difficulty
- Medium
- Repair Time
- More than 4 hours
Problem fixed: Cooling system defunct and bottom casing cracked
Removed power unit - stripped out heads and lower unit. Replaced all gaskets and thermostats and poppet valves, plus hoses, welded lower casing, reassembled. Ran fine.
Customers Also purchased
Supersession Chain
Name | SKU | Superceding SKU |
---|---|---|
Cylinder head Head Gasket VIEWING THIS PRODUCT | 0318358 | CURRENT |
Head Gasket | 0777379 | 0318358 |
Aftermarket Product Interchange
Name | SKU | Price | Brand |
---|---|---|---|
Head Gasket | 18-2956 | - | Sierra Marine |
Head Gasket | 33540 | $18.45 | GLM Marine |
Gasket,Cylinder Head | 9-63828 | $15.99 | Mallory Marine |
