SAFETY INFORMATION
For safety reasons, this kit should be installed by an authorized Evinrude®/Johnson® dealer. This instruction sheet is not a substitute for work experience. Additional helpful information may be found in other service literature for your engine.
This instruction sheet uses the following signal words identifying important safety messages.
Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, CAN result in severe injury or death.
Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate personal injury or property damage. It also may be used to alert against unsafe practices.
Identifies information that will help prevent damage to machinery and appears next to information that controls correct assembly and operation of the product.
These safety alert signal words mean:
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!
Always follow common shop safety practices. If you have not had training related to common shop safety practices, you should do so to protect yourself, as well as the people around you.
It is understood that this instruction sheet may be translated into other languages. In the event of any discrepancy, the English version shall prevail.
DO NOT do any repairs until you have read the instructions and checked the pictures relating to the repairs.
Be careful, and never rush or guess a service procedure. Human error is caused by many factors: carelessness, fatigue, overload, preoccupation, unfamiliarity with the product, and drugs and alcohol use, to name a few. Damage to a boat and outboard can be fixed in a short period of time, but injury or death has a lasting effect.
When replacement parts are required, use Evinrude/Johnson Genuine Parts or parts with equivalent characteristics, including type, strength and material. Using substandard parts could result in injury or product malfunction.
Torque wrench tightening specifications must be strictly followed. Replace any locking fastener (locknut or patch screw) if its locking feature becomes weak. Definite resistance to turning must be felt when reusing a locking fastener. If replacement is specified or required because the locking fastener has become weak, use only authorized Evinrude/Johnson Genuine Parts.
If you use procedures or service tools that are not recommended in this instruction sheet, YOU ALONE must decide if your actions might injure people or damage the outboard.
TO THE INSTALLER: Give this sheet and the operating instructions to the owner. Advise the owner of any special operation or maintenance information contained in the instructions.
TO THE OWNER: Save these instructions in your owner's kit. This sheet contains information important to the use and maintenance of your engine.
Do not install this kit unless you have the ability to communicate with the engine using Evinrude E-TEC Diagnostics Software. Complete installation of this kit requires reprogramming the Engine Management Module (EMM) to provide start-in-gear protection.
TILLER CONVERSION KITS (Evinrude E-TEC 75 – 115 HP)
5007125 – Blue 75–90 HP 5007075 – Blue 115 HP (2007) 5007557 – Blue 115 HP (2008 and newer) 5007126 – White 75–90 HP 5007076 – White 115 HP (2007) 5007558 – White 115 HP (2008 and newer)
Ref | P/N | Name of Part | Qty |
---|---|---|---|
1 | N/A | STEERING HANDLE | 1 |
2 | 397001 | STEERING HANDLE, inner | 1 |
3 | 332089 | *RETAINER CLIP | 1 |
4 | N/A | BRACKET, Steering handle | 1 |
5 | 325673 | HANDLE, Shift | 1 |
6 | 329885 | SCREW, Shift handle mount | 1 |
7 | 313609 | LUBE FITTING | 1 |
8 | 327400 | WASHER, Shift handle | 2 |
9 | 334815 | BUSHING, Shift handle | 1 |
10 | 318626 | BALL | 1 |
11 | 327178 | GUIDE | 1 |
12 | 309247 | SPRING | 1 |
13 | 351932 | PIN, Shift handle to cable | 1 |
14 | 303049 | COTTER PIN | 1 |
15 | 351995 | RETAINER, Shift cable | 1 |
16 | 336481 | SCREW, retainer | 2 |
17 | 352293 | COVER, Steering handle | 1 |

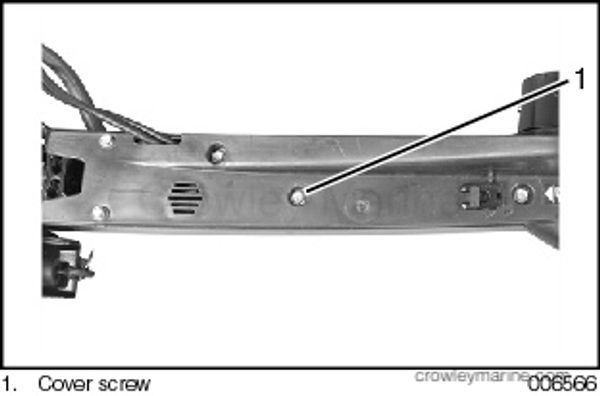

18 | 336481 | SCREW, Cover | 7 |
19 | 333499 | CLIP, Emergency stop | 1 |
20 | 586936 | STOP SWITCH Assy | 1 |
21 | 514679 | *PIN, Terminal | 6 |
NS | 514696 | CONNECTOR, 2 pin receptacle | 1 |
NS | 514697 | LOCKWEDGE, 2 pin receptacle | 1 |
22 | 336481 | SCREW, Stop switch | 3 |
23 | 398602 | CLIP & LANYARD Assy | 1 |
24 | 336481 | SCREW, Inner handle retaining | 1 |
25 | 121497 | WASHER | 1 |
26 | 174741 | THROTTLE FRICTION CONTROL | 1 |
27 | 339722 | HELIX, Twist grip | 2 |
28 | 329880 | PIN | 1 |
29 | 329879 | GUIDE | 2 |
30 | 329881 | ROLLER, Helix to cable | 2 |
31 | 352104 | GUIDE, Wire | 1 |
32 | 352813 | TWIST GRIP, Assy | 1 |
33 | 324967 | SCREW | 2 |
34 | 352103 | HOUSING, Trim switch | 1 |

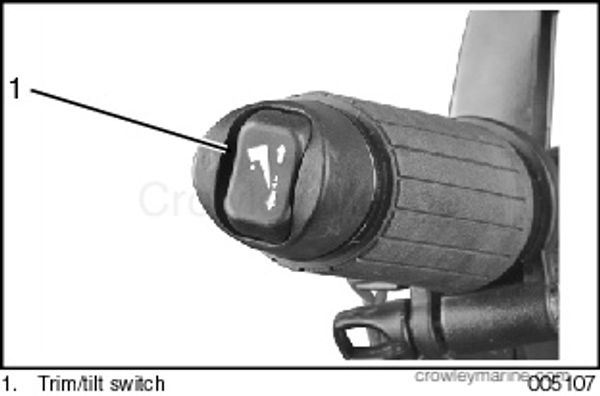

35 | 352270 | SWITCH, Trim & Tilt | 1 |
36 | 514686 | CONNECTOR, Trim & Tilt | 1 |
37 | 514682 | LOCKWEDGE, 3 pin receptacle | 1 |
38 | 586935 | START SWITCH Assy | 1 |
39 | 514679 | *PIN, Terminal | 2 |
NS | 514696 | CONNECTOR, 2 pin receptacle | 1 |
NS | 514697 | LOCKWEDGE, 2 pin receptacle | 1 |
40 | 327805 | NUT, Start switch | 1 |
41 | 5006160 | CABLE, Shift | 1 |
42 | 333774 | RETAINER CLIP | 1 |
43 | 328702 | WASHER | 1 |
44 | 5006459 | CABLE, Throttle | 1 |
45 | 334083 | ANCHOR, Throttle cable | 1 |
46 | 328739 | WASHER, Anchor to bracket | 1 |
47 | 329160 | SCREW, Anchor to bracket | 1 |
48 | 351209 | ANCHOR BRACKET, 75-90 HP | 1 |
48 | 352839 | ANCHOR BRACKET A | 1 |
49 | 909386 | SCREW, Anchor bracket, 75-90 HP | 1 |
49 | 333710 | SCREW, Anchor bracket A | 1 |
50 | 334153 | CONNECTOR, Throttle cable | 1 |
51 | 350989 | SCREW, Steering handle to bracket | 1 |
52 | 328733 | WASHER, Spring | 1 |
53 | 307160 | LOCKNUT, Steering handle screw | 1 |
54 | 313607 | LUBE FITTING | 1 |
55 | 352295 | THUMBSCREW, Height adjustment | 1 |
56 | 203470 | RETAINER CLIP | 1 |
57 | 325729 | SCREW, Bracket to steering arm | 1 |
58 | 320397 | WASHER | 1 |
59 | 325452 | BUSHING, Steering handle to brkt. | 2 |
60 | 352625 | PLATE, Angle adjustment | 1 |
61 | 315077 | NUT, Steering bracket | 2 |
62 | 5005800 | SWITCH, Ignition & key assy | 1 |
63 | 127251 | SPACER | 1 |
64 | 127237 | NUT, Keyswitch | 1 |
65 | 586934 | HARNESS, Tiller handle | 1 |
66 | 514688 | *CONNECTOR, 6 pin receptacle | 3 |
67 | 514684 | *LOCKWEDGE | 3 |
68 | 514679 | *PIN, Terminal | 15 |
69 | 514687 | *CONNECTOR, 6 Socket plug | 3 |
70 | 514683 | *LOCKWEDGE | 3 |
71 | 514690 | *SEAL PLUG | 15 |
72 | 514680 | *SOCKET, Terminal | 22 |
73 | 176295 | *CONNECTOR, 2 Socket plug | 2 |
74 | 127287 | *LOCKWEDGE | 2 |
75 | 514685 | *CONNECTOR, 3 Socket plug | 3 |
76 | 514681 | *LOCKWEDGE | 3 |
77 | 514686 | *CONNECTOR, 3 Pin receptacle | 1 |
78 | 514682 | *LOCKWEDGE | 1 |
79 | 910446 | *SOCKET, Terminal | 6 |
80 | 126908 | *SLEEVE | 6 |
81 | 5007322 | STEERING FRICTION KIT | 1 |
82 | 353244 | *ROD, Steering friction | 1 |
83 | 328743 | *WASHER | 2 |
84 | 327969 | *LOCKNUT | 1 |
85 | 353245 | *LINK, Steering friction | 1 |
86 | 345348 | *NUT | 1 |
87 | 351206 | *SCREW | 1 |
88 | 319453 | *WASHER | 1 |
89 | 353247 | *ROD END | 1 |
90 | 127386 | *WASHER | 1 |
91 | 553766 | *WASHER, Spring | 1 |
92 | 353248 | *SPACER | 1 |
93 | 126023 | *SET SCREW | 1 |
94 | 328702 | *WASHER | 1 |
95 | 353243 | *KNOB | 1 |
96 | 353241 | *CLAMP, Steering friction | 1 |
97 | 353242 | *BUSHING | 1 |
98 | 305650 | *COTTER PIN | 1 |
99 | 353028 | SUPPORT, grommet A | 1 |
100 | 5007144 | THROTTLE CAM A | 1 |
101 | 352859 | BRACKET, Neutral safety A | 1 |
102 | 586780 | SWITCH, Neutral A/B | 1 |
103 | 431908 | LEVER, Neutral switch A/B | 1 |
104 | 513134 | BRACKET, Neutral switch A/B | 1 |
105 | 333749 | SPRING, Neutral switch A/B | 1 |
106 | 513811 | BRACKET, Neutral switch slider A/B | 1 |
107 | 331404 | PIN, Neutral switch A/B | 1 |
NS | 335299 | DECAL, Emergency stop clip | 1 |
NS | 330575 | DECAL, Start warning (white) | 1 |
NS | 333978 | DECAL, Start warning (blue) | 1 |
NS | 330713 | DECAL, Gear shift (white) | 1 |
NS | 333979 | DECAL, Gear shift (blue) | 1 |
NS | 320107 | TIE STRAP | 15 |
NS | 317893 | TIE STRAP | 2 |
NS Not Shown
A 115 HP Only
B 2008 and newer models
Improper installation of this kit could result in personal injury due to loss of boat control.
A boat designed for remote steering might have a lower maximum rated horsepower for a tiller-steered outboard than shown on the certification plate. To avoid overpowering a boat designed and rated for remote steering, contact boat manufacturer for tiller-steered maximum rated horsepower.
To prevent accidental starting while servicing, disconnect battery leads from battery. Twist and remove all spark plug leads.
To prevent injury from contact with a rotating propeller, remove propeller before servicing and when running outboard on a flushing device.
INSPECTION
Before installation, check boat for obstructions that could interfere with free movement of tiller handle when steering or tilting outboard.
To avoid damaging the tiller handle when tilting the outboard up, position the outboard to clear obstacles in the motor well and boat.
INSTALLATION

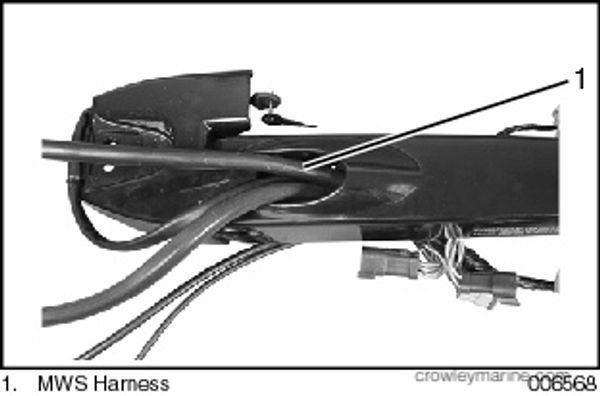

An optional MWS harness may be added to this tiller kit to allow installation of remote SystemCheck gauges or trim control. Before installing tiller on outboard, refer to OPTIONAL MODULAR WIRING SYSTEM (MWS) HARNESS INSTALLATION on p. 13.
Remote gauges may also be added through an I-Command (CANbus) network.
Disconnect the battery cables at the battery.
Remove any screws from steering arm holes. Make sure all paint or locking material is cleaned from threads.
Remove grommet from lower motor cover.

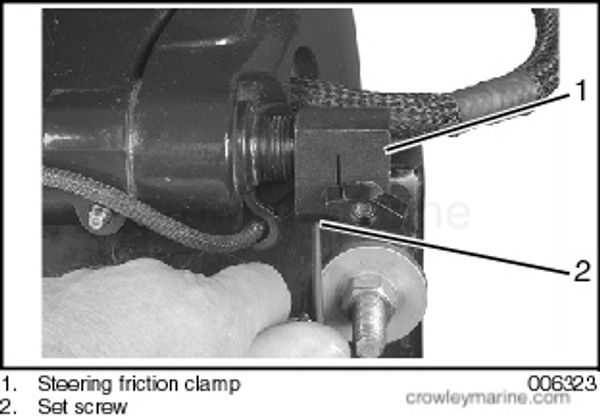

Install steering friction clamp on tilt tube as far as it will go, then back off into position shown. Tighten set screw no more than 60 to 84 in. lbs (7 to 9.5 Nm).

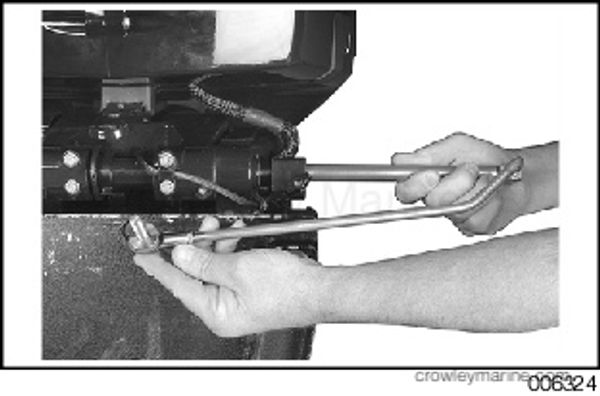

Apply a light coat of Triple-Guard grease to steering friction rod and install through clamp and tilt tube. Be sure that plastic bushing is in place inside clamp.

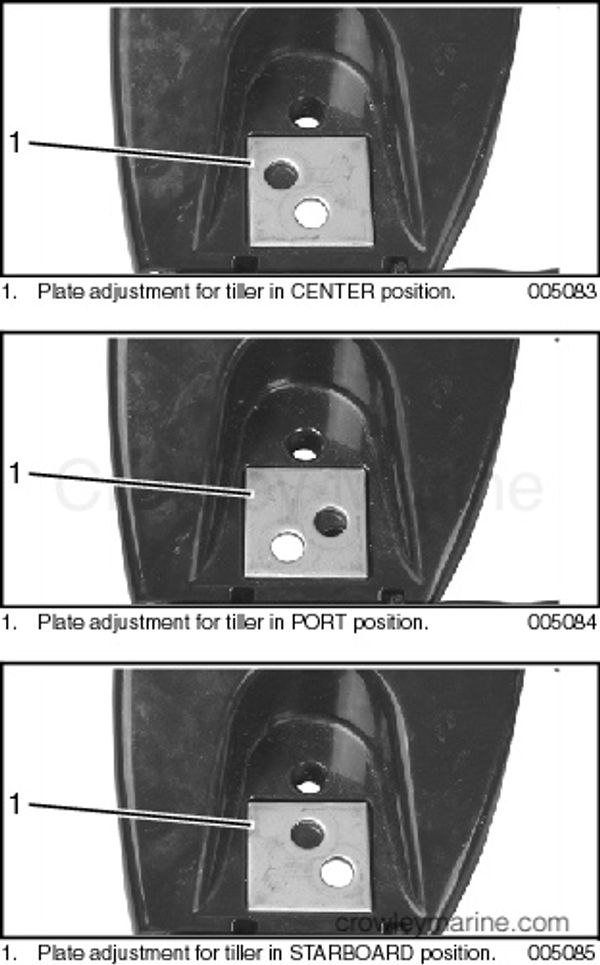

Place angle adjustment plate in pocket of steering arm bracket.

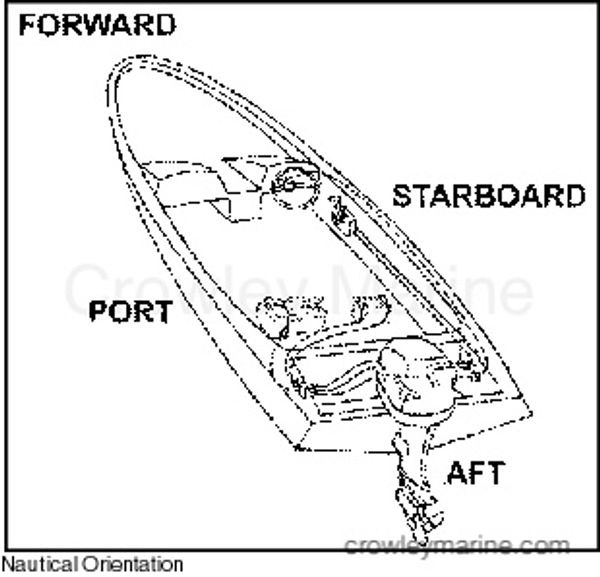

The steering arm can be positioned straight, or angled 15° port or starboard by moving the adjustment plate.

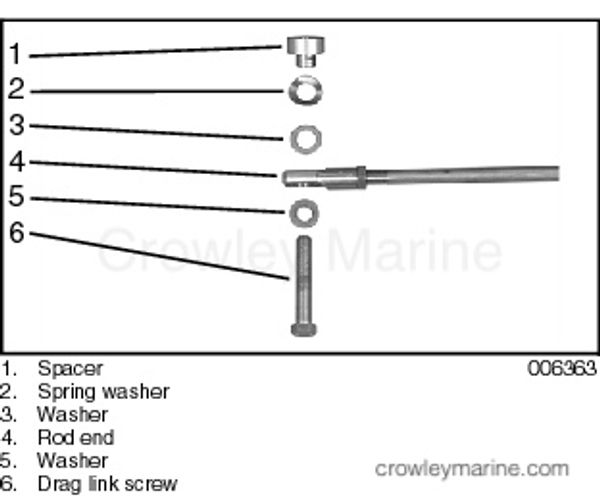

Assemble drag link parts as shown:

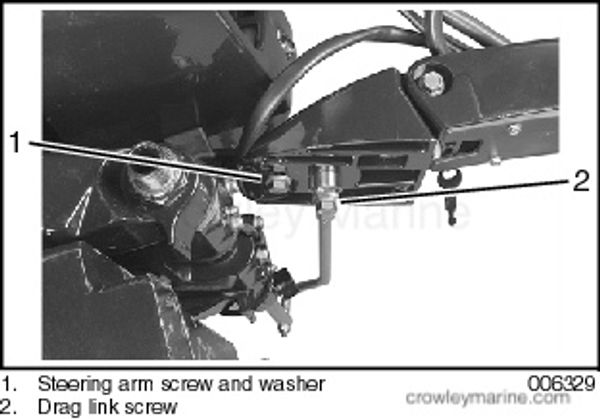

Place tiller bracket on steering arm from the bottom. Thread drag link screw through bracket into forward hole of steering arm. Thread steering arm screw, with washer, into center hole of steering arm.
Tighten both screws to a torque of 18 to 20 ft. lbs. (25 to 27 Nm).

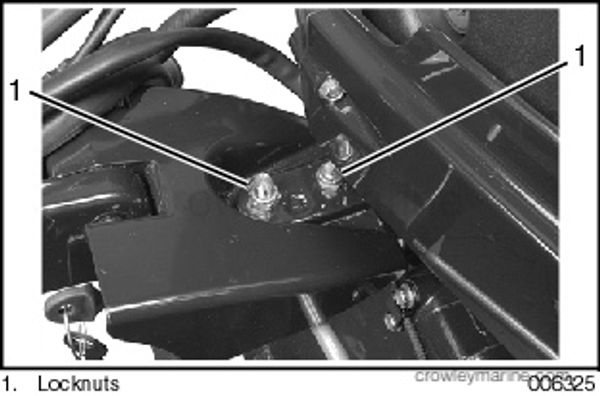

Install locknuts on screws on top of steering arm. Hold screws with a wrench and tighten locknuts to 18 to 20 ft. lbs. (25 to 27 Nm).
CONTROL CABLE INSTALLATION 75 – 90 HP
DO NOT complete final attachment of cables to shift and throttle levers until all cables, wires, and hoses have been routed and grommet has been placed into the lower engine cover.

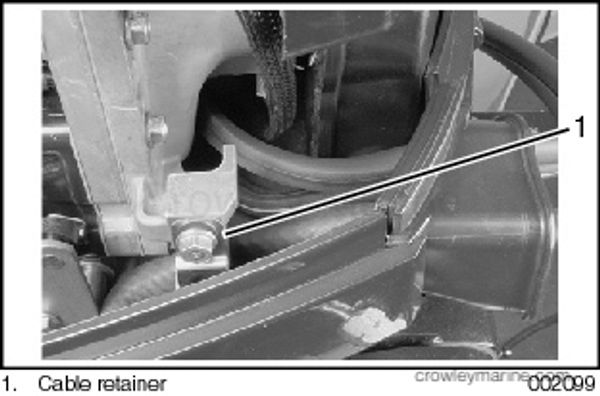

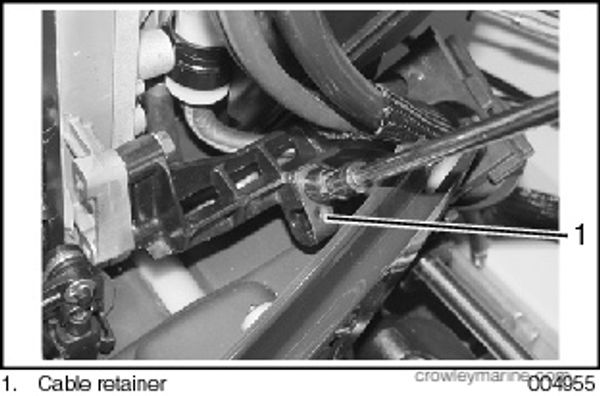

Remove cable retainer from anchor block.
Remove grommet from lower engine cover and insert shift cable through opening.
Pull firmly on shift cable casing to remove backlash. With outboard and tiller handle shift lever in NEUTRAL, place the cable trunnion into the lower anchor pocket. Adjust the trunnion nut so the casing fits onto the shift lever pin.

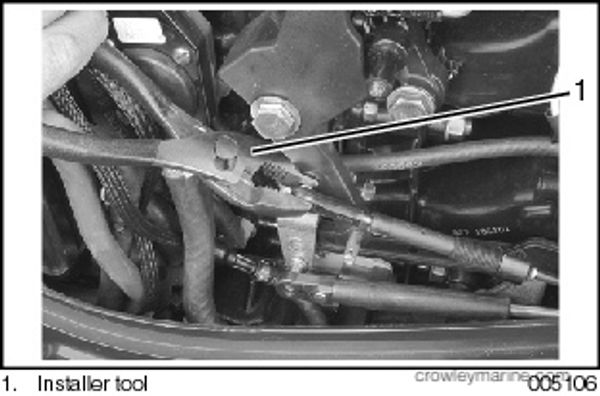

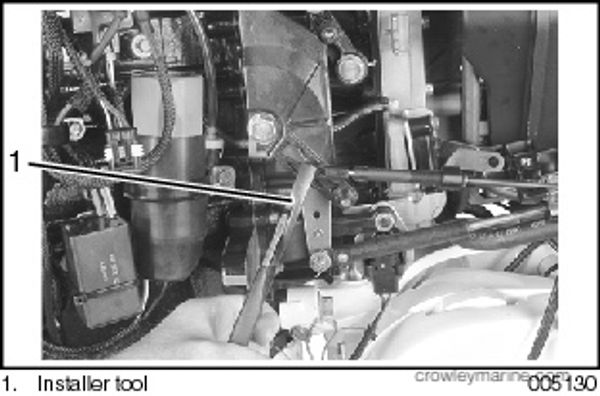

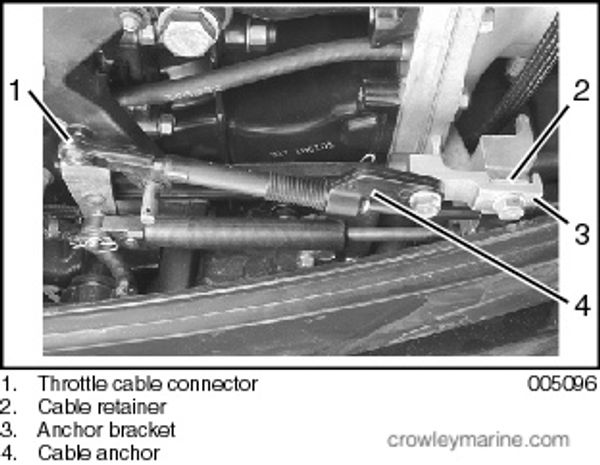

Use Ball Socket Installer tool, P/N 0342225, to snap throttle cable connector onto throttle lever. (Use Remover tool, P/N 0342226, to remove cable.)
Place throttle cable in upper anchor pocket. Install cable retainer and anchor bracket, P/N 0351209, on anchor block using screw supplied with kit. Tighten screw 60 to 84 in. lbs. (7 to 9 Nm).

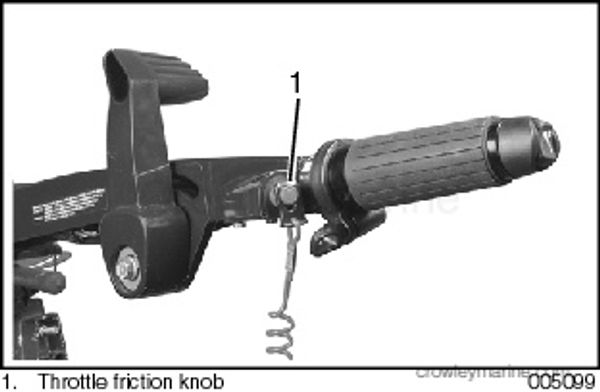

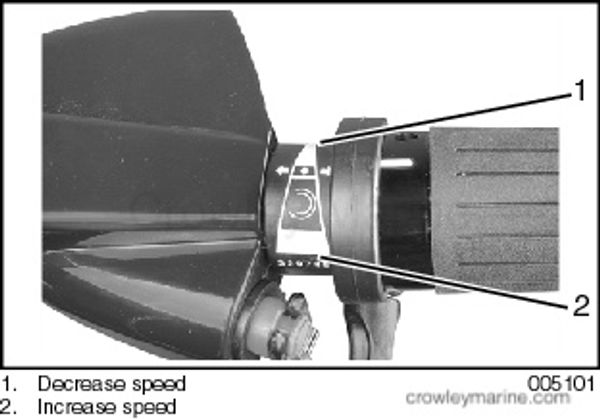

Hold twist grip in full SLOW position. Pull firmly on cable to remove backlash.

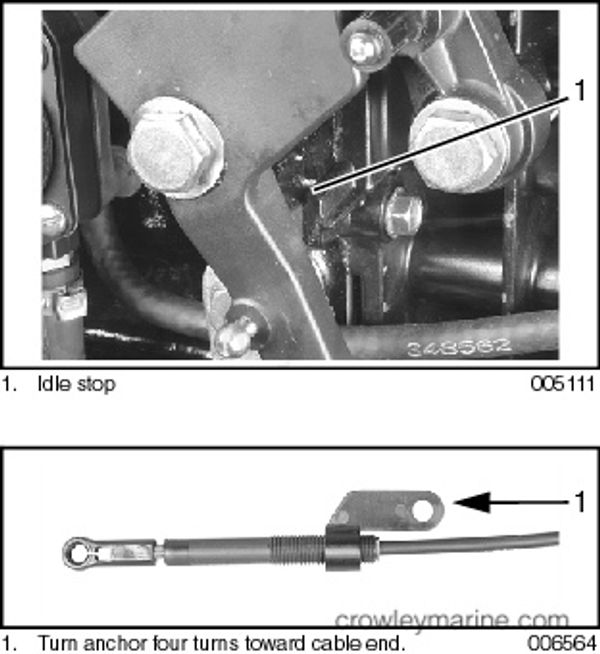

Adjust cable anchor so throttle cam is against idle stop when anchor screw aligns with throttle body boss. Then, rotate anchor four turns toward the end of the cable.
Install washer, cable anchor, and cable anchor screw on anchor bracket. Tighten screw securely.
IMPORTANT: Rotate twist grip. Make sure throttle cam goes to full throttle without excessive cable preload, and still returns to IDLE stop.
Apply soapy water to the inside surfaces of grommet and install cables and fuel line as shown:
Place the grommet into position in the lower motor cover.
When grommet is in place and all cables have been installed, tighten a tie strap, P/N 5000812, around the outside of the grommet to form a seal around the cables.

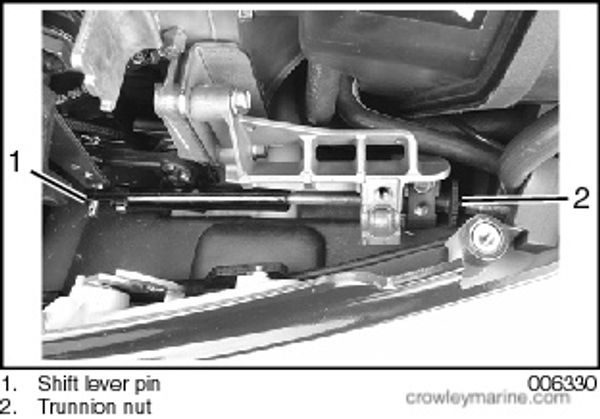

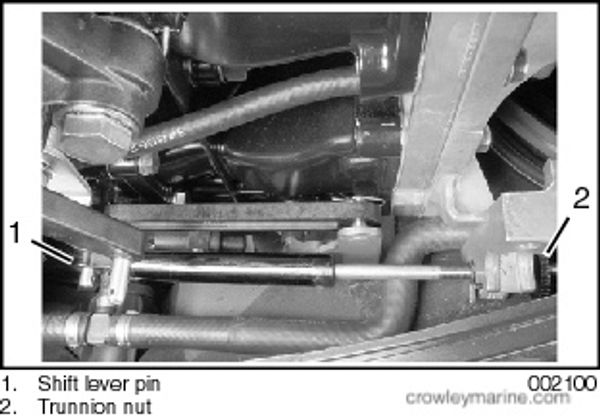

Secure shift cable to the shift lever pin. For proper installation, review the following steps:
Place washer on pin.

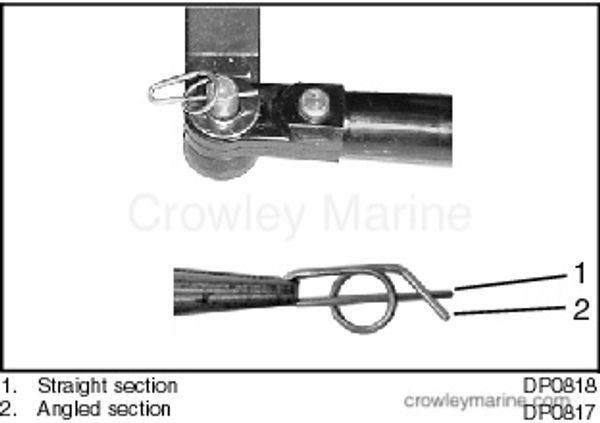

Position retainer clip with straight section on the bottom and angled section on the top.
Use long nose pliers to insert straight section of clip into linkage pin hole.
Push the clip towards the hole while lifting on the curved end with the pliers.
Be sure retainer clip fully engages the pin.

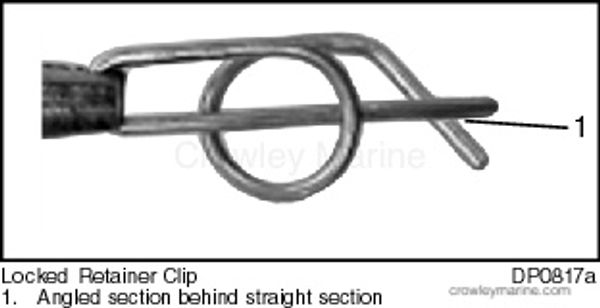

Lock the retainer by moving the angled section behind the straight section.
CONTROL CABLE INSTALLATION 115 HP
Neutral Switch Installation 2008 and Newer Models
Remove starboard lower cover. Refer to Service Manual for specific instructions.

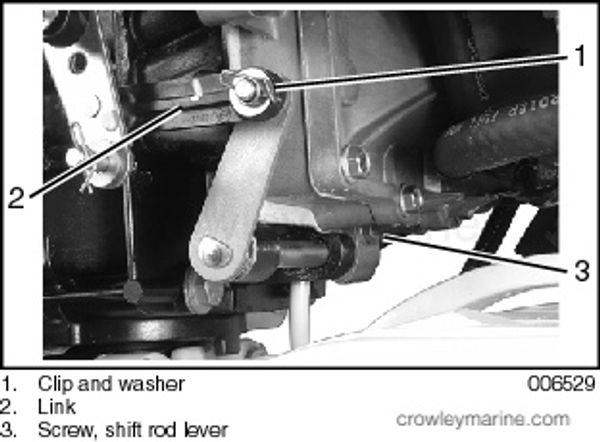

Remove clip and washer from shift lever and shaft. Disconnect link from lever. Remove screw from shift rod lever. Remove shift lever and shaft from crankcase.

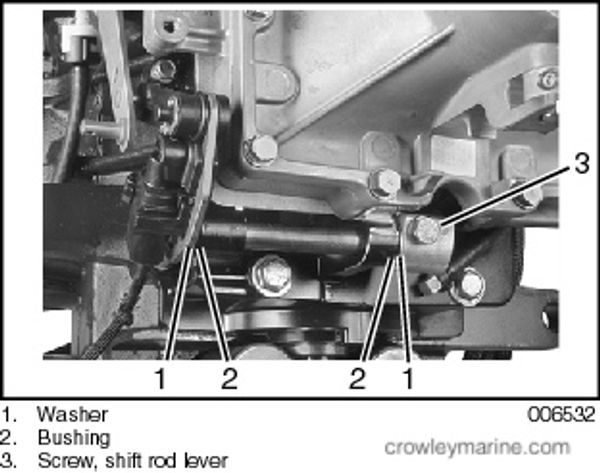

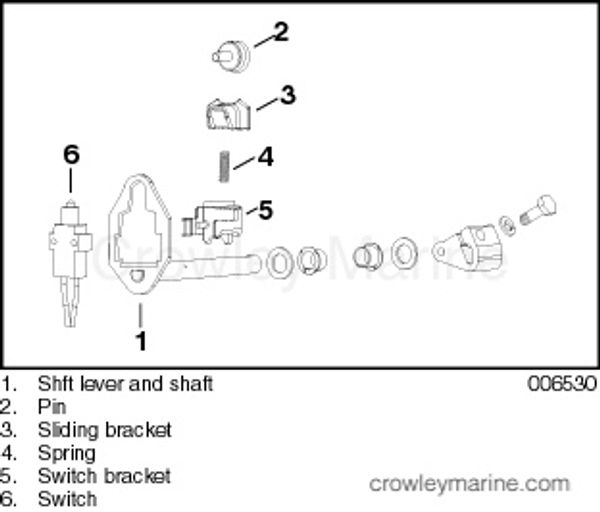

Assemble neutral switch components on the shift lever and shaft in the order shown.
Apply Triple-Guard grease to the shaft of the shift lever/switch assembly. Guide shaft through existing washers and bushings in crankcase.
Install shift rod lever and tighten screw to a torque of 60 to 84 in. lbs. (7 to 9.5 Nm).
Connect link to pin and secure with clip and washer.

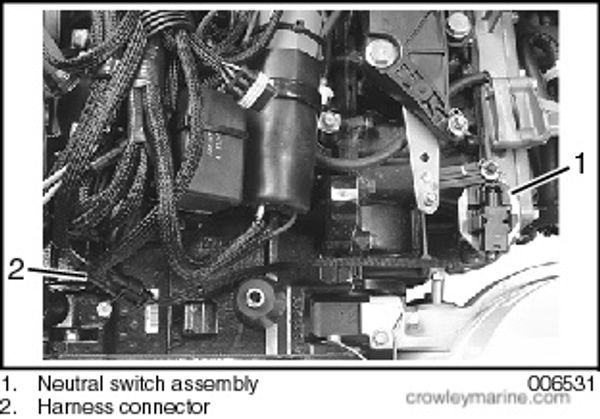

Install switch connector to existing engine harness connector. The harness wires are black and black/yellow.
All 115 HP Models

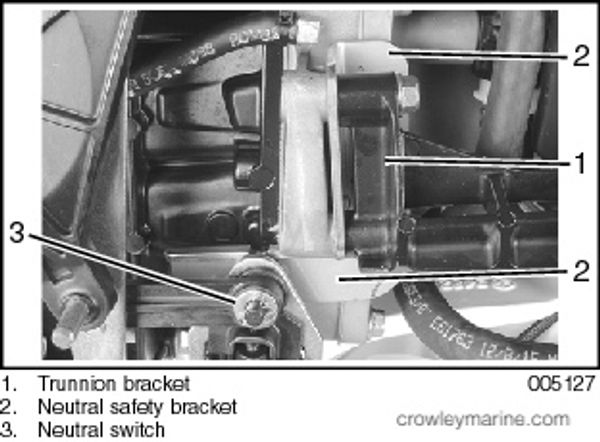

Remove trunnion bracket from powerhead and install neutral safety bracket above and behind existing shift switch. Reinstall trunnion bracket. Apply Nut Lock™ to threads and tighten screws 72 to 96 in. lbs. (8 to 11 Nm).
Neutral safety bracket is adjustable. When tiller kit installation is complete, test that outboard will not start when control is in FORWARD or REVERSE. If necessary, move bracket up or down to activate switch when outboard is in gear.

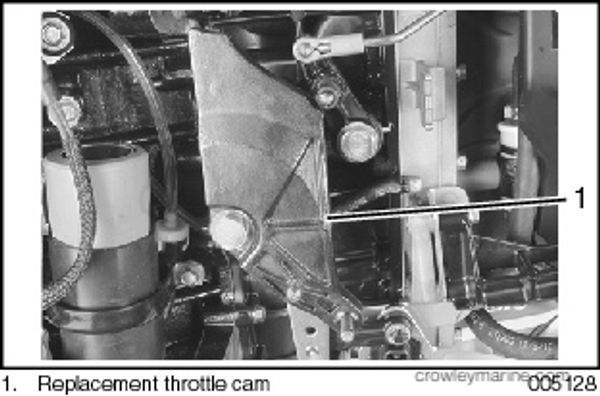

Remove throttle cam from powerhead and install new throttle cam from kit. Apply Nut Lock to threads of shoulder screw and tighten 120 to 144 in. lbs. (14 to 16 Nm).
Remove cable retainers from trunnion bracket.
Install all cables and hoses through grommet and place grommet into position in lower cover.
Push and pull on the shift cable and position the casing guide in the center of the slack.

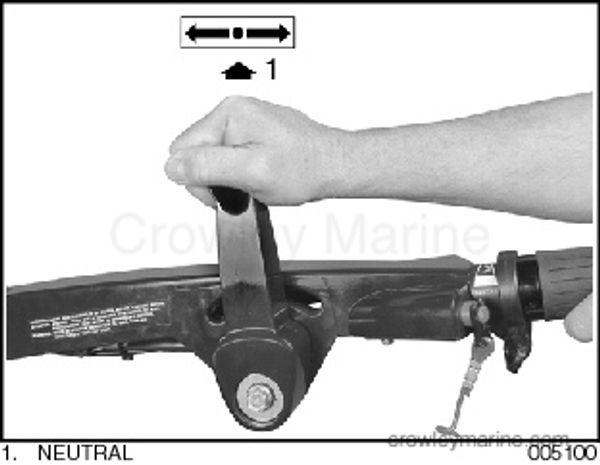

With outboard and tiller handle shift lever in NEUTRAL, place the cable trunnion into the lower anchor pocket. Adjust the trunnion nut so the casing fits onto the shift lever pin.
Secure shift cable to the shift lever pin. For proper installation, review the following steps:
Place washer on pin.
Position retainer clip with straight section on the bottom and angled section on the top.
Use long nose pliers to insert straight section of clip into linkage pin hole.
Push the clip towards the hole while lifting on the curved end with the pliers.
Be sure retainer clip fully engages the pin.
Lock the retainer by moving the angled section behind the straight section.

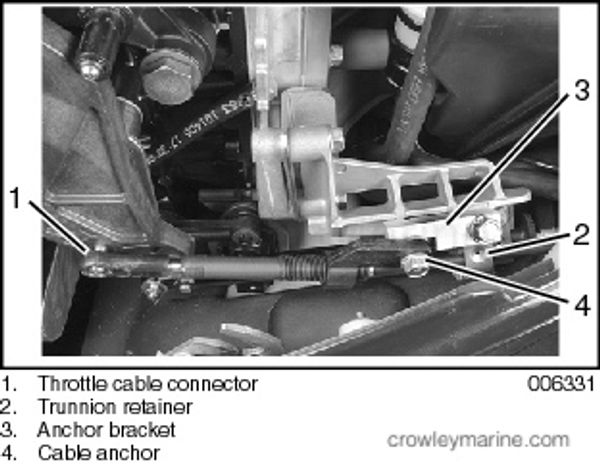

Use Ball Socket Installer tool, P/N 0342225, to snap throttle cable connector onto throttle cam pin. (Use Remover tool, P/N 0342226, to remove cable.)
Place throttle cable in upper anchor pocket. Install cable retainer and anchor bracket, P/N 0352839, on trunnion bracket using screw supplied with kit. Tighten screw 60 to 84 in. lbs. (7 to 9 Nm).
With throttle cam against idle stop, adjust cable anchor so anchor screw aligns with anchor bracket when twist grip is at IDLE. Then, rotate anchor four turns toward the end of the cable.
Install washer, cable anchor, and cable anchor screw on anchor bracket. Tighten screw securely.
Rotate twist grip. Make sure throttle cam goes to full throttle without excessive cable preload, and still returns to IDLE stop.

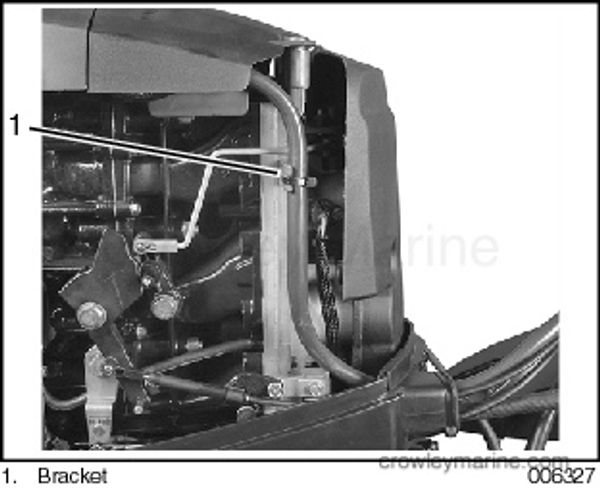

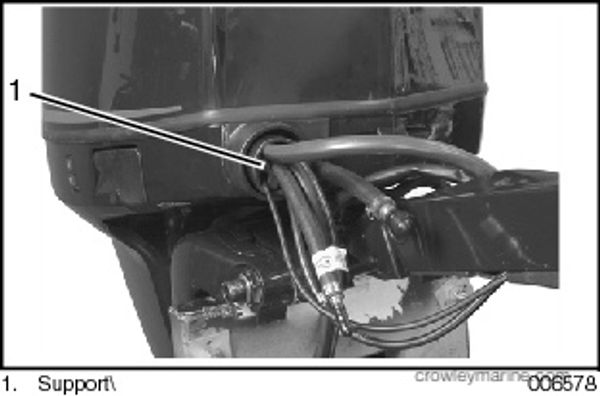

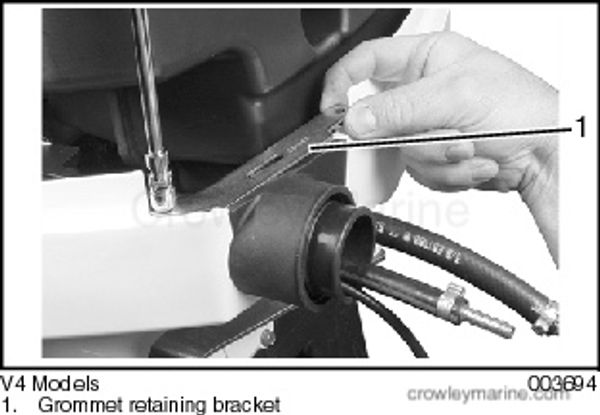

Place support in grommet with arrow facing inside of motor cover. Secure grommet with bracket.
ELECTRICAL CONNECTIONS 75 – 90 HP

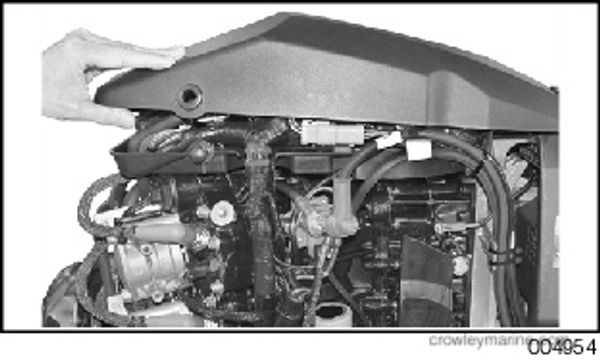

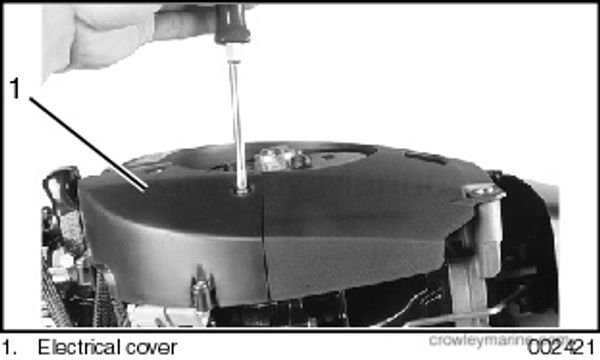

Remove electrical cover.

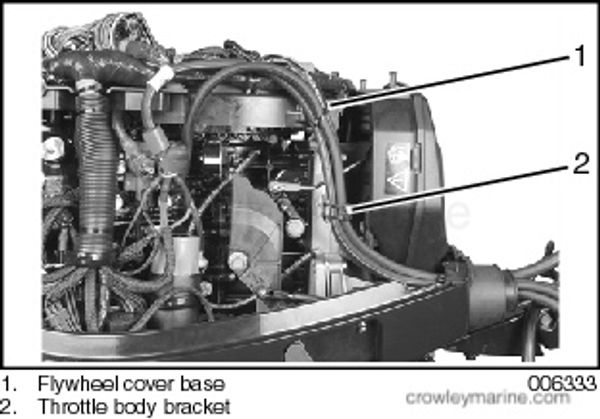

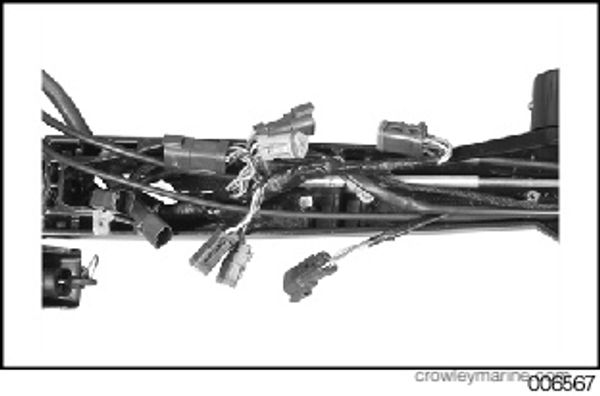

Route wiring harnesses from tiller handle through channel in flywheel cover.

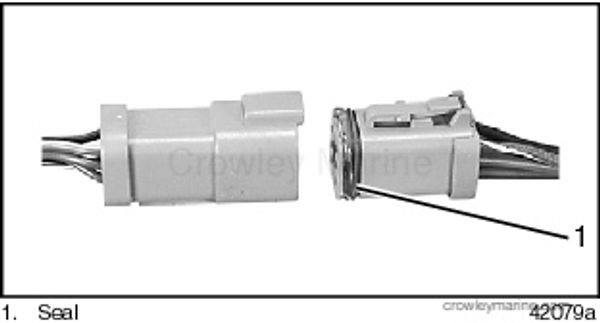

Apply Electrical Grease to connector seals, then connect tiller handle wiring harness to engine harness.

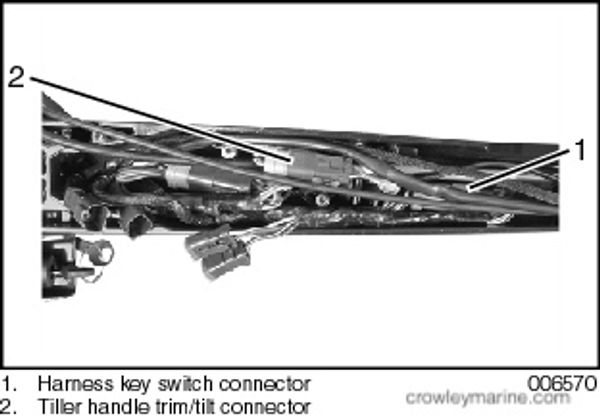

Arrange connectors in flywheel cover, as shown, and install electrical cover.

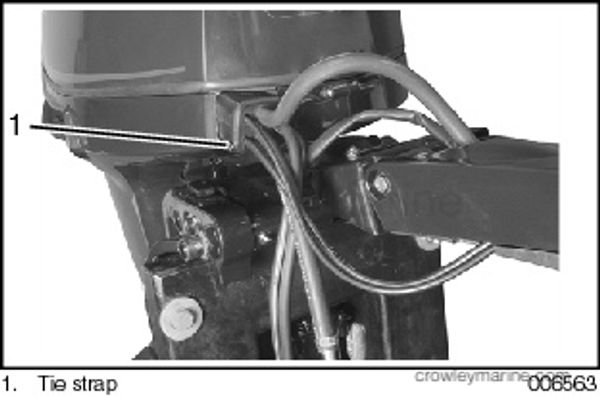

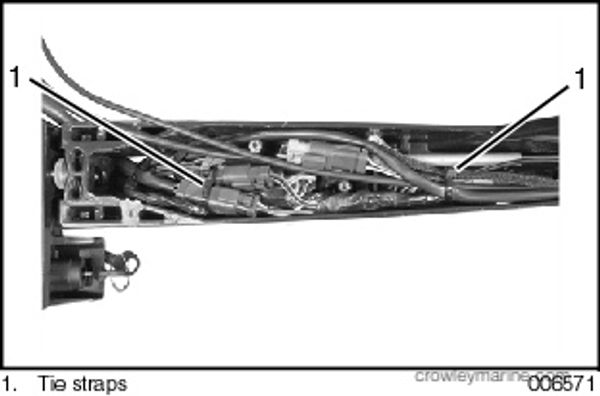

Use tie strap to secure harness to throttle body bracket.
Route and secure all wires to avoid contact with moving parts.

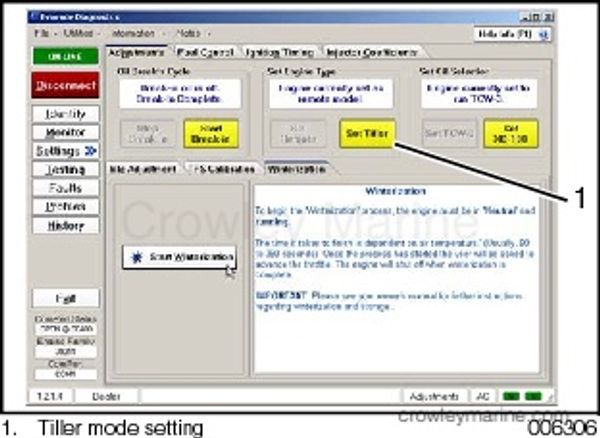

Use Evinrude E-TEC Diagnostics Software to reprogram Engine Management Module (EMM) for Tiller Model start-in-gear protection.
After installation, dealer must use Evinrude E-TEC Diagnostics Software to reprogram Engine Management Module (_EMM_) to provide start-in-gear protection. Failure to provide start-in-gear protection could create a risk of personal injury or property damage.
ELECTRICAL CONNECTIONS 115 HP
Remove flywheel/harness connector cover.
Route wiring harnesses from tiller handle through channel in flywheel cover.
Apply Electrical Grease to connector seals, then connect tiller handle wiring harness to engine harness.
Arrange connectors in flywheel cover, as shown, and install electrical cover. Seal unused SystemCheck connector with 6-Pin Connector Seal, P/N 0586076 (not included in kit).
Use tie straps to secure harness to flywheel cover base and throttle body bracket.
Route and secure all wires to avoid contact with moving parts.
Use Evinrude E-TEC Diagnostics Software to reprogram Engine Management Module (EMM) for Tiller Model start-in-gear protection.
After installation, dealer must use Evinrude E-TEC Diagnostics Software to reprogram Engine Management Module (EMM) to provide start-in-gear protection. Failure to provide start-in-gear protection could create a risk of personal injury or property damage.
Make certain that outboard will not start in gear. If necessary, adjust neutral safety bracket up or down so that shift switch is activated when control is moved to FORWARD or REVERSE. Refer to Control Cable Installation.
OPTIONAL MODULAR WIRING SYSTEM (MWS) HARNESS INSTALLATION
Remove seven screws and bottom cover of tiller handle.
Remove tie straps, disconnect tiller handle wiring harness connections, and remove sealing caps.
Insert MWS Harness through the top of the tiller handle, to the port side of the existing cables.

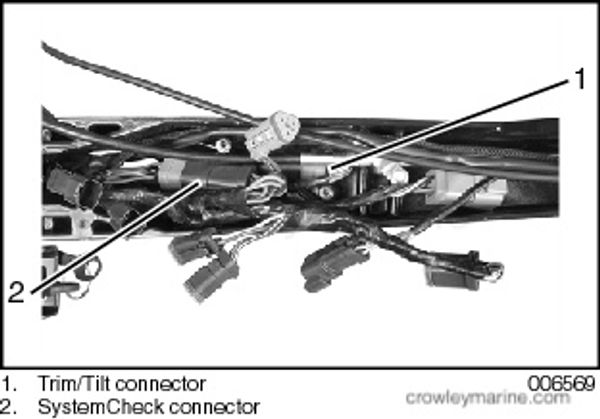

Install harness trim/tilt and SystemCheck connectors. First, place trim/tilt connector under shift cable. Then, place SystemCheck connector into handle as shown.
Install harness key switch connector and tiller handle trim/tilt connector. Place connectors as shown.
Install tiller handle stop switch connector and start button connector.
Route cables and install tie strap as shown. Make sure that wiring cannot interfere with moving parts of shift cable.
Install bottom cover. Tighten screws 24 to 36 in. lbs (2.7 to 2.9 Nm).
Store these instructions onboard the boat with the operator's guide.
SAFETY INFORMATION
DO NOT run the engine indoors or without adequate ventilation or permit exhaust fumes to accumulate in confined areas. Engine exhaust contains carbon monoxide which, if inhaled, can cause serious brain damage or death.
Contact with a rotating propeller is likely to result in serious injury or death. Assure the engine and prop area is clear of people and objects before starting engine or operating boat. Do not allow anyone near a propeller, even when the engine is off. Blades can be sharp and the propeller can continue to turn even after the engine is off. Always shut off the engine when near people in the water.
The engine cover is a machinery guard. DO NOT operate your outboard with the cover off unless you are performing maintenance or emergency starting, and then be careful to keep hands, hair, and clothing clear of all moving parts. Contact with moving parts could cause injury.
Always shut off the outboard when your boat is near people who are in the water.
Be familiar with the waters you are operating in. The gearcase of this outboard extends below the water surface and could potentially come in contact with underwater obstructions. Contact with underwater obstructions may result in loss of control and personal injury.
ENGINE STARTING
Refer to the Routine Inspection Checklist in the Evinrude E-TEC Operator's Guide for pre-launch checks before using your outboard.
You MUST supply water to the engine before starting. Engine damage can occur quickly.
Connect the clip to the emergency stop switch. Snap the lanyard to a secure place on the operator's clothing or life vest — not where it might tear away instead of activating the stop switch.
The operator should always use the clip and lanyard anytime the engine is running.
Always use the safety lanyard when operating your boat to help prevent a runaway boat and reduce the risk of personal injury or death.
Avoid knocking or pulling the clip off the stop switch during normal boating. The resulting unexpected loss of forward motion can throw occupants forward, causing injury.
Your emergency stop switch can be effective only when in good working condition. At each outing, inspect clip and lanyard for cuts, breaks, or wear. Replace worn or damaged parts.
Keep the lanyard free from obstructions and entanglements.
At each outing, test the system's operation. With the engine running, remove the clip from the switch by pulling the lanyard. If the engine does not stop running, see your Dealer.

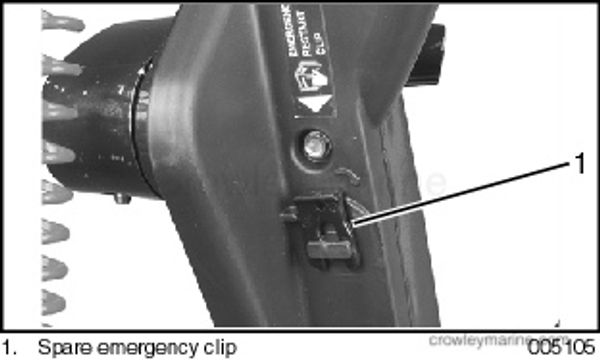

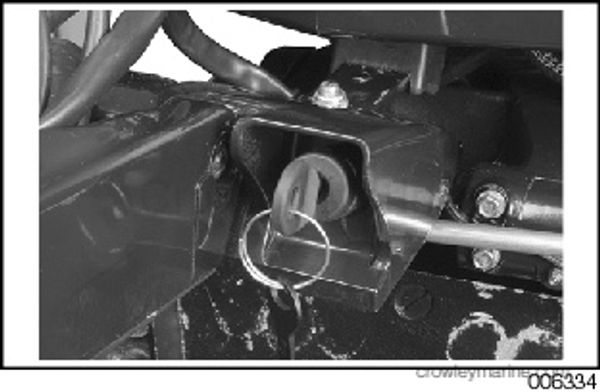

If clip and lanyard should be lost overboard, a spare clip can be found on the bottom of the tiller handle.
Spare clip is for emergency use only. Clip with lanyard should always be attached to operator during normal operation.
Move the shift lever to NEUTRAL. Refer to Shifting and Speed Control.
Always shift to NEUTRAL before starting the outboard to prevent sudden boat movement, which can cause injury.
Twist throttle grip to slowest IDLE position. Refer to Speed Control.
DO NOT advance the throttle before start-up. Advancing the throttle overrides the electronic idle control system. After the engine starts, the engine management module (EMM) will automatically increase idle speed slightly. Idle speed will decrease as the engine warms up.
If the outboard is started at wide open throttle, twist the throttle grip back to IDLE before shifting.
Key Switch
While seated, turn the key switch fully clockwise to the START position. Crank the engine no longer than 20 seconds.
The starter motor can be damaged if operated continuously for more than 20 seconds.
Upon start-up, release the key.
If the engine did not start, release the key momentarily, then try again.
Engine will not start if outboard is in gear.

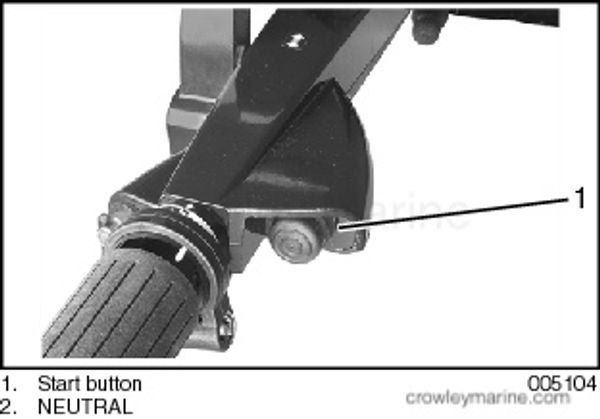

Start Button
While seated, press the start button. (Key switch must be in the ON position.) Crank the engine no longer than 20 seconds.
The starter motor can be damaged if operated continuously for more than 20 seconds.
Upon start-up, release the start button.
If the engine did not start, release the start button momentarily, then try again.
Engine will not start if outboard is in gear, if lanyard is not in place, or if key switch is in OFF position.
After Engine Starts

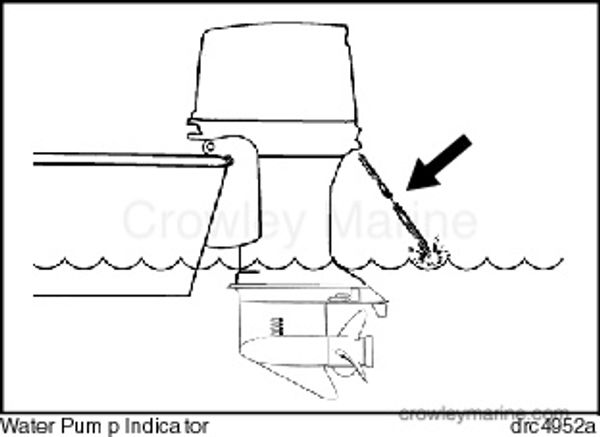

Check the water pump indicator. A steady stream of water indicates the water pump is working. If a steady stream of water from the water pump indicator is not visible, stop the engine. Refer to Engine Overheating in the Evinrude E-TEC Operator's Guide.
ENGINE STOPPING
Twist the throttle grip to IDLE position.
Move shift lever to NEUTRAL.
Outboard may be stopped by turning the key switch to the OFF position, or by pressing the STOP button until the outboard stops running.
Be sure to turn key OFF when outboard is not in use to avoid discharging the battery.
SHIFTING AND SPEED CONTROL
Carefully check the function of all control and engine systems before leaving the dock. DO NOT shift the outboard into FORWARD or REVERSE while it is shut OFF.
Shifting
With engine running, twist the throttle grip to IDLE position.
Move the shift lever briskly and decisively to FORWARD or REVERSE.
When shifting from FORWARD to REVERSE or from REVERSE to FORWARD, pause at NEUTRAL until the engine is at idle speed and the boat has slowed.
Speed Control
With the outboard running, twist throttle grip:
Clockwise to decrease speed; or
Counterclockwise to increase speed.
Tiller is equipped with a throttle friction adjustment knob. Tighten the knob to reduce the effort required to hold a throttle setting.
Tighten knob only enough to hold throttle at a constant engine speed. Overtightening will prevent quick throttle change in case of emergency.
TRIM CONTROL
Tiller includes a handle mounted trim/tilt switch.

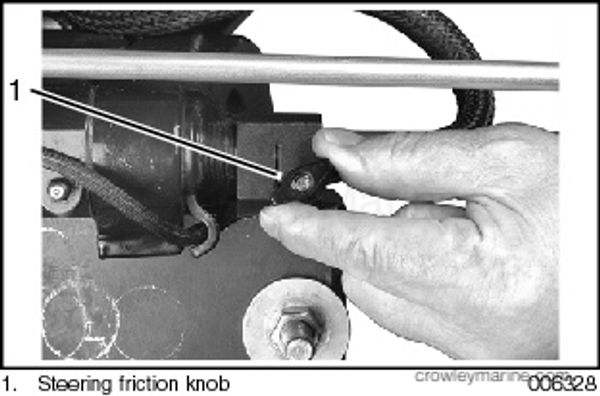

STEERING FRICTION ADJUSTMENT
A slight drag should be felt when turning the outboard with the steering handle. If adjustment is necessary, turn the steering friction knob:
Clockwise to increase friction; or
Counter-clockwise to decrease friction.
Steering friction device is not intended to hold boat on a set course. DO NOT overtighten steering friction screw for "hands-off" steering. Reduced control of the boat could result in loss of control by the operator, creating a risk of personal injury or property damage.
TILLER HEIGHT
The angle of the tiller handle can be raised or lowered by adjusting a thumbscrew under the handle.
STORAGE (WINTERIZATION)
You can winterize your outboard either in the water or on a trailer. DO NOT start the outboard once winterization is completed.
In the Water
Prepare your outboard for the off-season by following these steps:
1) Make sure that the throttle is in NEUTRAL and the water intake screens are completely submerged.
2) Add 2+4® Fuel Conditioner to the fuel tank and fill it with fuel.
3) Advance the throttle to 1/2 throttle position and start the outboard. The outboard will run at idle speed.
4) After approximately 15 seconds, move the throttle to IDLE position. Run the outboard at idle for another 15 seconds, then advance the throttle again to 1/2 throttle position.
5) The outboard will automatically go to fast idle and fog itself. Allow the outboard to run until it shuts itself off (about one minute).
6) Top off the oil reservoir and inspect the fuel filter. If there is debris in the fuel filter, it must be replaced.
When finished, leave the outboard in a vertical position long enough to completely drain the water from the powerhead.
7) If equipped, disconnect the speedometer pickup at the upper connection and blow all water out of the hose using air pressure of 25 psi (172 kPa) or less. Reconnect the speedometer pickup after all of the water has been removed.
On a Trailer
To prevent injury from contact with rotating propeller, remove the propeller before servicing and when running the outboard with a flushing device.
Prepare your outboard for the off-season by following these steps:
1) Make sure that the throttle is in NEUTRAL. Remove the propeller.
2) Add 2+4® Fuel Conditioner to the fuel tank and fill it with fuel.
3) Attach a garden hose to the flushing port and turn on the water.
4) Advance the throttle to 1/2 throttle position and start the outboard. The outboard will run at idle speed.
5) After approximately 15 seconds, move the throttle to IDLE position. Run the outboard at idle for another 15 seconds, then advance the throttle again to 1/2 throttle position.
6) The outboard will automatically go to fast idle and fog itself. Allow the outboard to run until it shuts itself off (about one minute).
7) After the outboard shuts itself off, detach garden hose.
8) Top off the oil reservoir and inspect the fuel filter. If there is debris in the fuel filter, it must be replaced.
9) Apply the recommended lubricant to the propeller shaft splines, then install the propeller. IMPORTANT: When finished, leave the outboard in a vertical position long enough to completely drain the water from the powerhead.
10) If equipped, disconnect the speedometer pickup at the upper connection and blow all water out of the hose using air pressure of 25 psi (172 kPa) or less. Reconnect the speedometer pickup after all of the water has been removed.
When using this winterization procedure, engine oil may appear on the skeg below the gearcase area. This is normal. Avoid potential oil stains by placing a shop towel or suitable container under the propeller and skeg for the duration of the storage.
