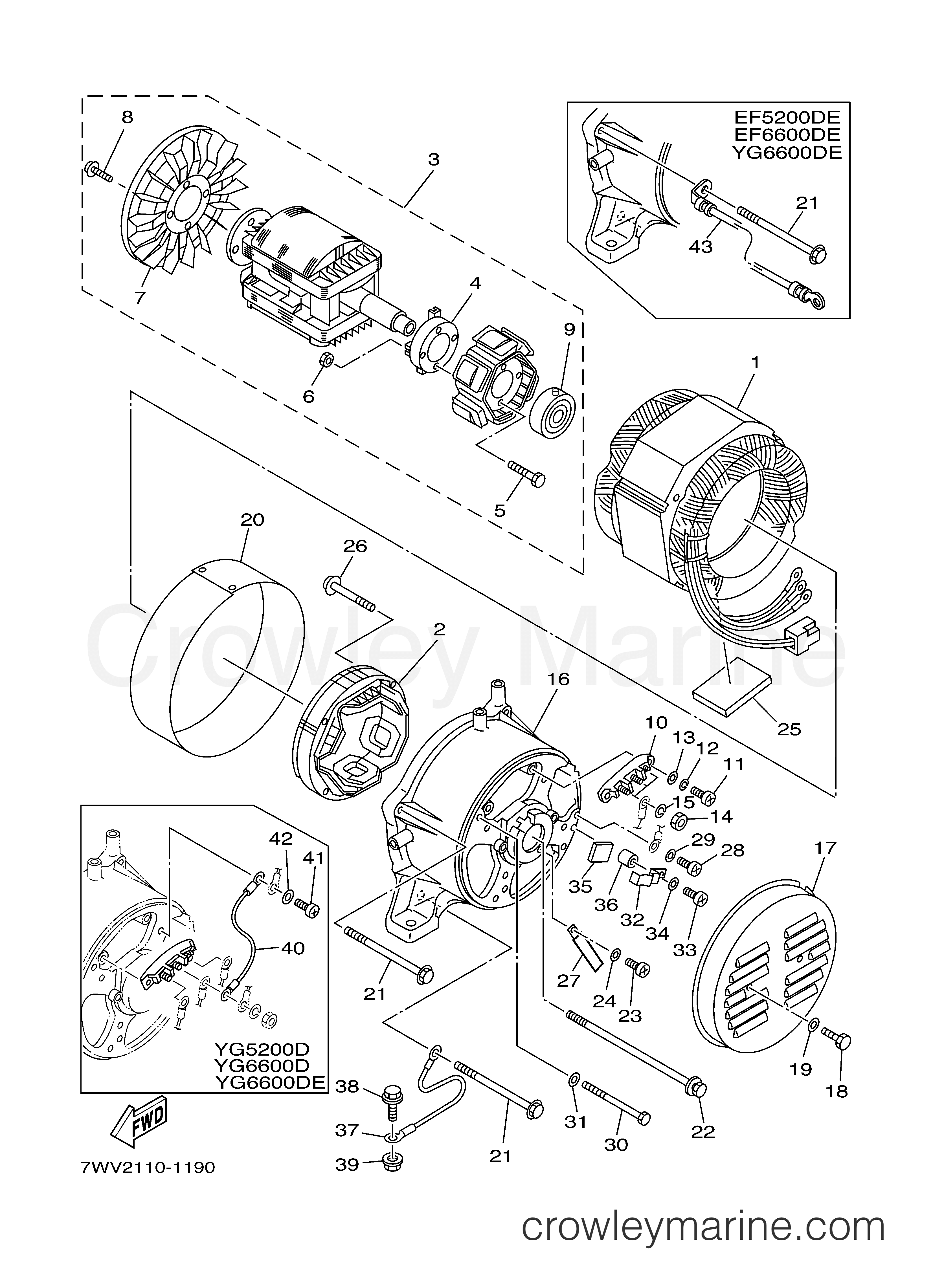

2001 Generator 5200 - YG5200DY GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2001 Generator 5200 - YG5200DY - GENERATOR 2001 Generator 5200 - YG5200DY - GENERATOR
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

4
Rectifier Assembly
7LV-87115-00-00 ← 7LV-87115-00-00

.RECTIFIER ASSY 2

$149.95
You save $8.04. $157.99
Cross Ship
5
Hexagon Bolt
97027-05050-00 ← 97027-05050-00

.BOLT, HEXAGON

$1.00
You save 5%. $1.05
Cross Ship
6
Hexagon Nut
95317-05600-00

.NUT

$1.89
You save 5%. $1.99
Cross Ship
9
Bearing
93306-37202-00 ← 93306-37202-00

.BEARING

$31.34
You save $1.65. $32.99
Cross Ship
13
Plate Washer
92907-05600-00 ← 92907-05600-00

WASHER, PLATE

$2.84
You save 5%. $2.99
Cross Ship
14
Hexagon Nut - Small
95317-05700-00

NUT

$5.95
$5.99
Cross Ship
16
Obsolete Yamaha Part
7LV-87131-02-00

FRAME, REAR

$189.95
You save $9.04. $198.99
Cross Ship
17
Rear End Cover
7RH-87174-00-98 ← 7RH-87174-00-98

COVER, REAR END

Notes:LGB
$17.09
You save 5%. $17.99
Cross Ship
18
Bolt
97017-06010-00

BOLT

$2.84
You save 5%. $2.99
Cross Ship
19
Plate Washer
92907-06600-00 ← 92907-06600-00

WASHER, PLATE

$1.89
You save 5%. $1.99
Cross Ship
20
Stator Cover
7RH-87153-00-00 ← 7RH-87153-00-00

COVER, STATOR

$9.95
$9.99
Cross Ship
21
Flange Bolt
95827-06130-00 ← 95827-06130-00

BOLT, FLANGE

$2.75
No longer available
22
Bolt
7RH-81152-00-00 ← 7RH-81152-00-00

BOLT

$3.79
You save 5%. $3.99
Cross Ship
24
Plate Washer
92907-05600-00 ← 92907-05600-00

WASHER, PLATE

$2.84
You save 5%. $2.99
Cross Ship
25
Stator Seal
7LR-87159-00-00 ← 7LR-87159-00-00

SEAL, STATOR

$4.45
Cross Ship
27
Clamp
90462-10236-00

CLAMP

$6.64
You save 5%. $6.99
Cross Ship
29
Plate Washer
92907-05600-00 ← 92907-05600-00

WASHER, PLATE

$2.84
You save 5%. $2.99
Cross Ship
30
Flange Bolt
95817-06125-00

BOLT

$3.79
You save 5%. $3.99
Cross Ship
31
Plate Washer
92907-06600-00 ← 92907-06600-00

WASHER, PLATE

$1.89
You save 5%. $1.99
Cross Ship
32
Connector Holder
7J5-88195-00-00 ← 7J5-88195-00-00

HOLDER, CONNECTOR

$18.04
You save 5%. $18.99
Cross Ship
34
Plate Washer
92907-05600-00 ← 92907-05600-00

WASHER, PLATE

$2.84
You save 5%. $2.99
Cross Ship
35
Damper
7LV-8713J-00-00 ← 7LV-8713J-00-00

DAMPER

$8.54
You save 5%. $8.99
Cross Ship
36
Collar
90387-06N38-00 ← 90387-06N38-00

COLLAR

$3.79
You save 5%. $3.99
Cross Ship
37
Lead Wire Assembly
7NJ-87139-80-00 ← 7NJ-87139-80-00

LEAD WIRE ASSY 2

$7.12
You save 5%. $7.49
Cross Ship
38
Flange Bolt
95880-06010-00 ← 95880-06010-00

BOLT, FLANGE

$1.95
You save 5%. $2.05
Cross Ship
40
Lead Wire
7LR-8722W-80-00 ← 7LR-8722W-80-00

WIRE, LEAD 6

Notes:FOR YG5200D & YG6600D_DE
$11.87
You save 5%. $12.49
Cross Ship
41
PAN HEAD SCREW (3SX)
98517-05010-00

SCREW, PAN HEAD

Notes:FOR YG5200D & YG6600D_DE
$5.95
$5.99
Cross Ship
42
Plate Washer
92907-05600-00 ← 92907-05600-00

WASHER, PLATE

Notes:FOR YG5200D & YG6600D_DE
$2.84
You save 5%. $2.99
Cross Ship
43
Minus Lead Wire
73H-82116-00-00 ← 73H-82116-00-00

WIRE, MINUS LEAD

Notes:FOR ELECTRIC START MODEL
$9.95
You save 13%. $11.49
Cross Ship
