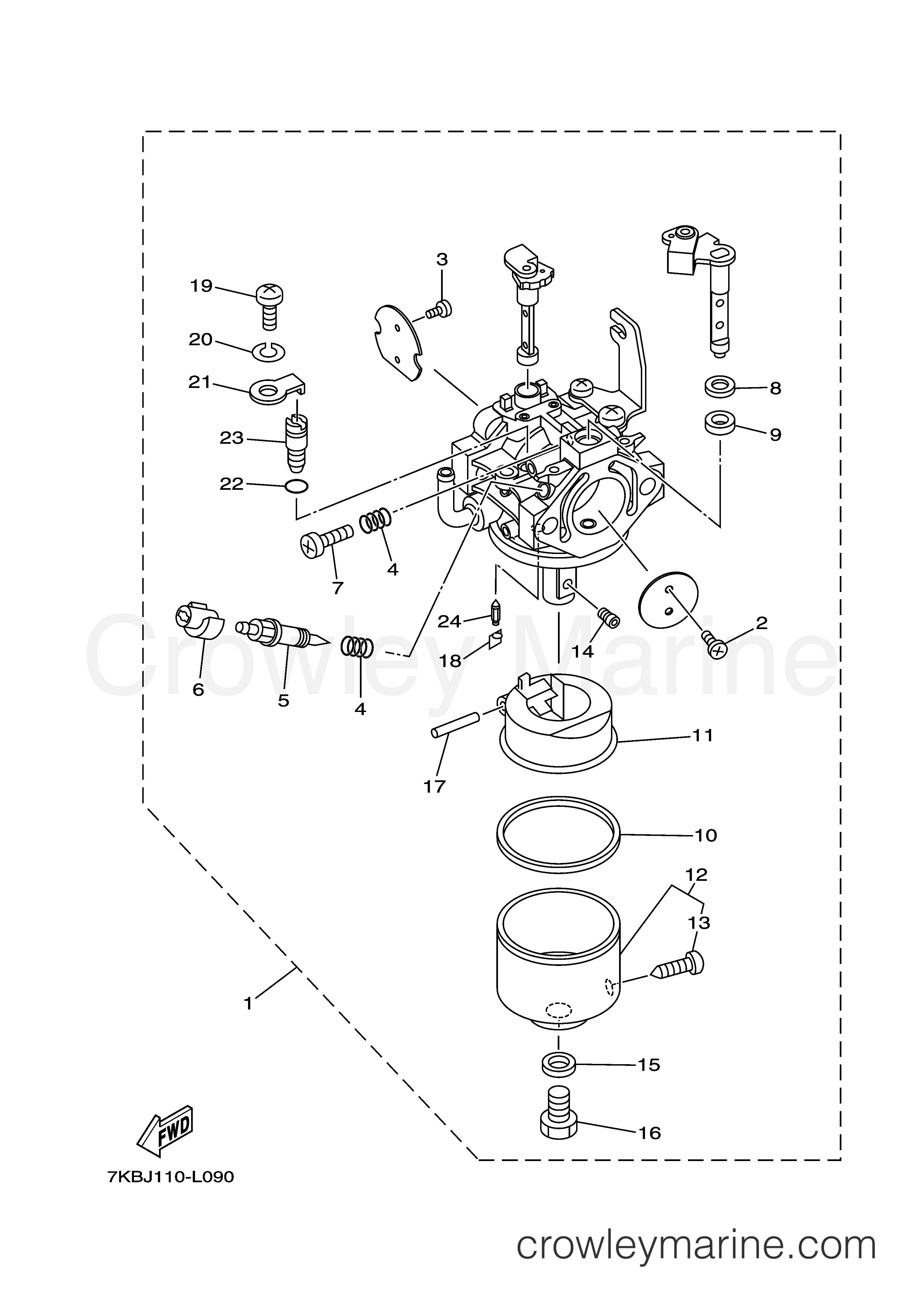

2012 UTV 250 - MZ250AAIA0 CARBURETOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2012 UTV 250 - MZ250AAIA0 - CARBURETOR 2012 UTV 250 - MZ250AAIA0 - CARBURETOR
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
Carburetor Assembly
7KB-E4101-00-00 ← 7KB-E4101-00-00

CARBURETOR ASSY 1

$207.09
You save $10.90. $217.99
Cross Ship
2
Screw
7RH-14216-00-00 ← 7RH-14216-00-00

.SCREW

$2.00
You save 5%. $2.10
Cross Ship
3
Rod Screw
7RH-14486-00-00 ← 7RH-14486-00-00

.SCREW, ROD

$2.04
You save 5%. $2.15
Cross Ship
4
Spring
73A-14212-10-00 ← 73A-14212-10-00

.SPRING

$9.95
$9.99
Cross Ship
6
Cap
7LV-14118-00-00 ← 7LV-14118-00-00

.CAP

$4.95
$5.00
Cross Ship
7
Throttle Screw
1WG-14922-00-00 ← 1WG-14922-00-00

.SCREW, THROTTLE

$2.66
You save 5%. $2.80
Cross Ship
9
Washer
6K8-14597-10-00 ← 6K8-14597-10-00

.WASHER

$2.47
You save 5%. $2.60
Cross Ship
10
Seal
7CT-E4997-00-00 ← 7CT-E4997-00-00

.SEAL

$14.95
$15.22
Cross Ship
11
Float
JN6-14185-00-00 ← JN6-14185-00-00

.FLOAT

$14.95
You save $1.32. $16.27
Cross Ship
13
Drain Plug
7E1-14191-00-00 ← 7E1-14191-00-00

..PLUG, DRAIN

$8.07
You save 5%. $8.49
Cross Ship
15
Gasket
127-14198-00-00 ← 127-14198-00-00

.GASKET

$6.17
You save 5%. $6.49
Cross Ship
16
Holding Bolt
7CG-14162-00-00 ← 7CG-14162-00-00

.BOLT, HOLDING

$2.80
You save 5%. $2.95
Cross Ship
17
Float Pin
22F-14186-00-00 ← 22F-14186-00-00

.PIN, FLOAT

$3.99
You save 5%. $4.20
Cross Ship
18
Clip
7EG-14159-00-00 ← 7EG-14159-00-00

.CLIP

$3.14
You save 5%. $3.30
Cross Ship
19
Pan Head Screw
98507-05008-00 ← 98507-05008-00

.SCREW, PAN HEAD

$3.14
You save 5%. $3.30
Cross Ship
21
Plate
7CU-E4527-00-00 ← 7CU-E4527-00-00

.PLATE

$3.61
You save 5%. $3.80
Cross Ship
22
O-Ring
2H0-14147-00-00 ← 2H0-14147-00-00

.O-RING

$4.35
Cross Ship
24
Needle Assembly
7CU-14150-00-00 ← 7CU-14150-00-00

.NEEDLE ASSY

$9.99
You save 5%. $10.52
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
