1988 Yamaha Outdoor Equipment 828 - YS828WM

CYLINDER - CRANKCASE section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

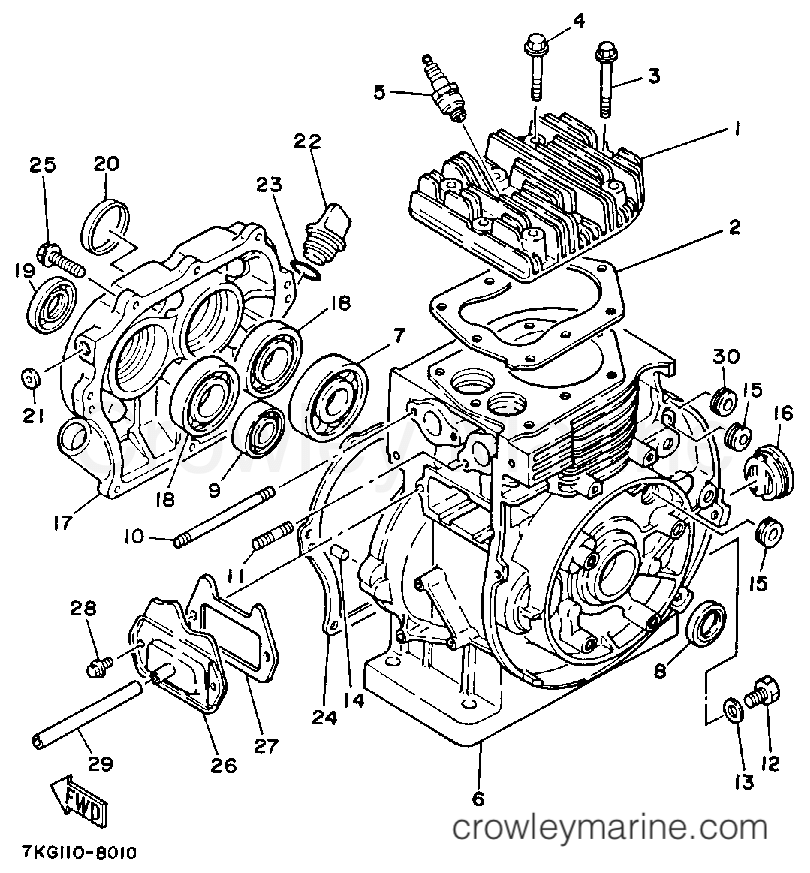

1988 Yamaha Outdoor Equipment 828 - YS828WM - CYLINDER - CRANKCASE 1988 Yamaha Outdoor Equipment 828 - YS828WM - CYLINDER - CRANKCASE
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
7KF-11111-00-00 - Cylinder Head
7KF-11111-00-00
7KF-11111-00-00 7KF-11111-00-00

HEAD, CYLINDER 1

HEAD, CYLINDER 1
$54.99
You save $2.00. $56.99
No Longer Available
Required: 1
6
7KF-15111-09-00 - Crankcase
7KF-15111-09-00
7KF-15111-09-00 7KF-15111-09-00

CRANKCASE 1

CRANKCASE 1
$552.00
$552.99
No Longer Available
Required: 1
7
93306-30630-00 - Bearing
93306-30630-00
93306-30630-00 93306-30630-00

BEARING

BEARING
$46.54
You save $2.45. $48.99
Leaves in 3-5 days
Required: 1
9
93306-20458-00 - Bearing
93306-20458-00
93306-20458-00 93306-20458-00

BEARING

BEARING
$24.95
You save $1.04. $25.99
Leaves in 3-5 days
Required: 1
10
90116-06450-00 - Stud Bolt
90116-06450-00
90116-06450-00 90116-06450-00

BOLT, STUD

BOLT, STUD
$5.95
$5.99
Leaves in 3-5 days
Required: 2
11
90116-08335-00 - Stud bolt
90116-08335-00
90116-08335-00 90116-08335-00

BOLT, STUD

BOLT, STUD
$2.85
No Longer Available
Required: 2
13
812-11198-00-00 - Gasket
812-11198-00-00
812-11198-00-00 812-11198-00-00

GASKET

GASKET
$1.89
You save 5%. $1.99
Leaves in 3-5 days
Required: 1
14
93607-14099-00 - Dowel Pin
93607-14099-00
93607-14099-00 93607-14099-00

PIN, DOWEL

PIN, DOWEL
$5.49
No Longer Available
Required: 2
15
90480-15058-00 - Grommet
90480-15058-00
90480-15058-00 90480-15058-00

GROMMET

GROMMET
$3.90
You save 5%. $4.10
Leaves in 3-5 days
Required: 2
16
796-13478-02-00 - Check Plug
796-13478-02-00
796-13478-02-00 796-13478-02-00

PLUG, CHECK

PLUG, CHECK
$12.99
No Longer Available
Required: 1
19
93102-30339-00 - Oil Seal
93102-30339-00
93102-30339-00 93102-30339-00

OIL SEAL

OIL SEAL
$9.95
$9.99
Leaves in 3-5 days
Required: 1
20
90338-50107-00 - Plug
90338-50107-00
90338-50107-00 90338-50107-00

PLUG

PLUG
$8.54
You save 5%. $8.99
Leaves in 3-5 days
Required: 1
22
 -
796-15363-01-00

PLUG, OIL

PLUG, OIL
Not available for purchase
Required: 1
23
93210-22344-00 - O-Ring
93210-22344-00
93210-22344-00 93210-22344-00

O-RING

O-RING
$5.49
Leaves in 3-5 days
Required: 1
29
(90445-11349-00) - Hose
(90445-11349-00)
(90445-11349-00) (90445-11349-00)

HOSE

HOSE
$.00
No Longer Available
Required: 1
30
663-81922-00-00 - Grommet
663-81922-00-00
663-81922-00-00 663-81922-00-00

GROMMET

GROMMET
$12.25
No Longer Available
Required: 1
