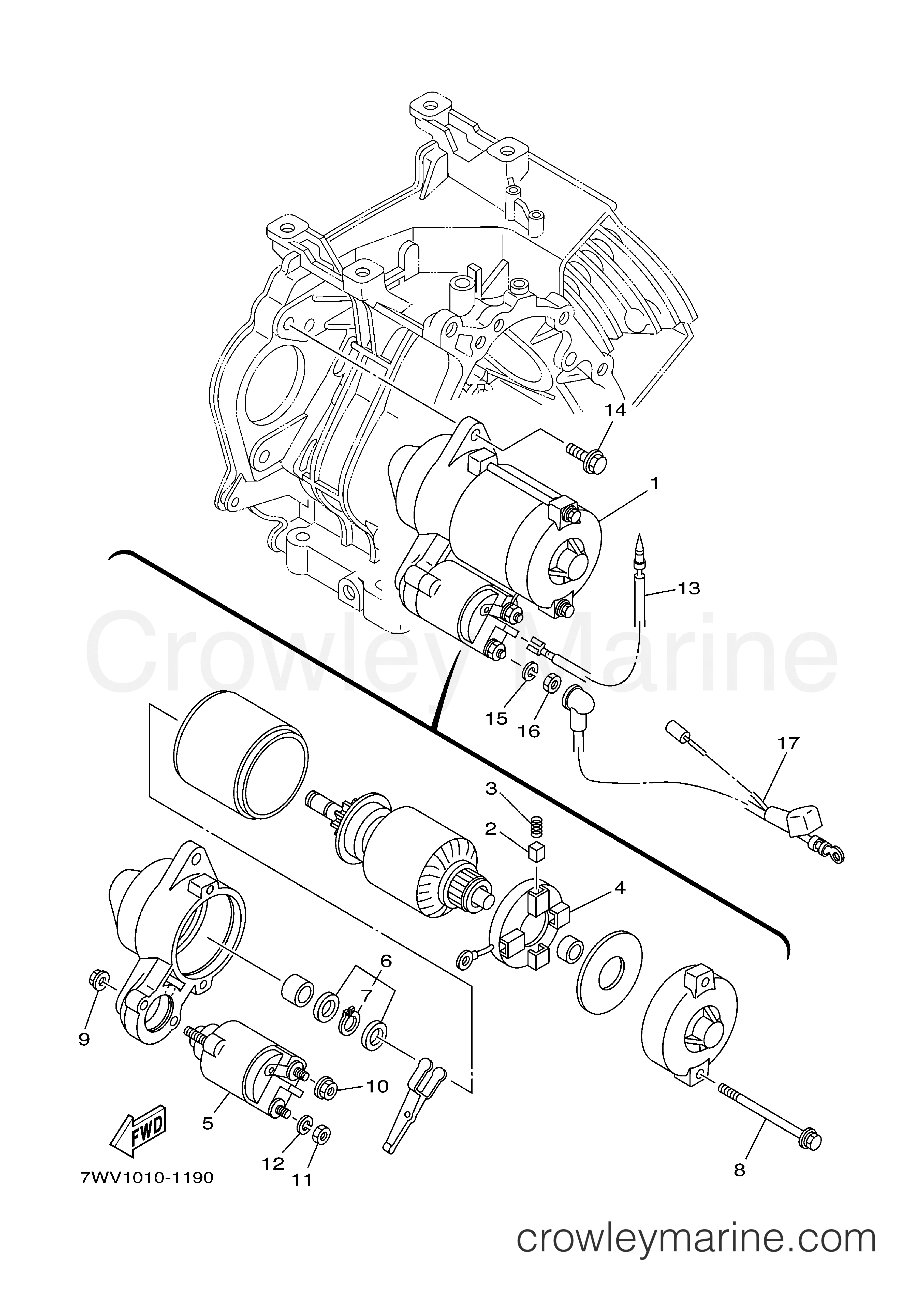

2001 Generator 5200 - YG5200DY STARTING MOTOR ELECTRIC START MODEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2001 Generator 5200 - YG5200DY - STARTING MOTOR ELECTRIC START MODEL 2001 Generator 5200 - YG5200DY - STARTING MOTOR ELECTRIC START MODEL
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
Brush
JE8-81812-00-00 ← JE8-81812-00-00

.BRUSH 2

$7.59
You save 5%. $7.99
Cross Ship
6
Stop Ring
7UJ-81833-00-00 ← 7UJ-81833-00-00

.RING, STOP

$32.29
You save $1.70. $33.99
Cross Ship
7
Ring
JE8-81834-00-00 ← JE8-81834-00-00

..RING

$6.17
You save 5%. $6.49
Cross Ship
8
Bolt
JE8-81826-00-00 ← JE8-81826-00-00

..BOLT

$8.54
You save 5%. $8.99
Cross Ship
11
Nut
95302-08600-00 ← 95302-08600-00

.NUT

$4.99
You save 17%. $5.99
Ships immediately
2 in stock
16
Nut
95337-08600-00

.NUT

$5.95
$5.99
Cross Ship
17
Plus Lead Wire
7XA-82115-00-00 ← 7XA-82115-00-00

WIRE, PLUS LEAD

$48.44
You save $2.55. $50.99
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
