Select Your Engine:

1988 Yamaha Outdoor Equipment 828 - YS828WM

WHEEL SUSPENISON 1 section

Change Section

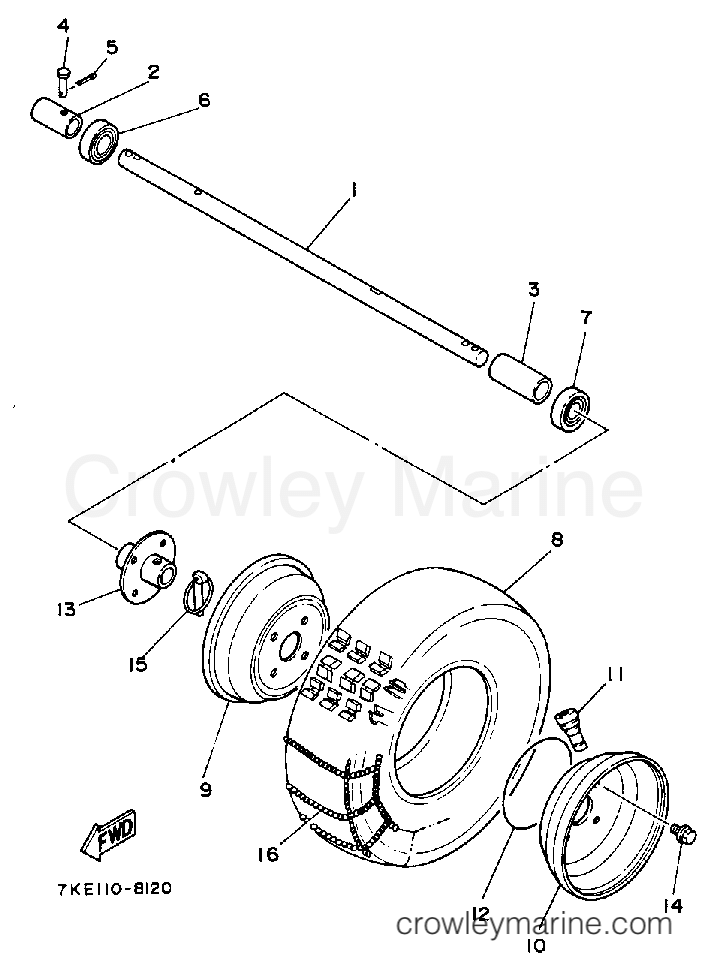

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1988 Yamaha Outdoor Equipment 828 - YS828WM - WHEEL SUSPENISON 1 1988 Yamaha Outdoor Equipment 828 - YS828WM - WHEEL SUSPENISON 1
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
7KE-47465-00-00 - Shaft
7KE-47465-00-00
7KE-47465-00-00 7KE-47465-00-00

SHAFT 1

SHAFT 1
$58.99
No Longer Available
Required: 1
2
7KE-47365-00-00 - Collar
7KE-47365-00-00
7KE-47365-00-00 7KE-47365-00-00

COLLAR

COLLAR
$6.64
You save 5%. $6.99
Leaves in 3-5 days
Required: 1
3
90387-214T9-00 - COLLAR
90387-214T9-00
90387-214T9-00 90387-214T9-00

COLLAR

COLLAR
$5.49
No Longer Available
Required: 1
4
91702-05030-00 - Clevis Pin
91702-05030-00
91702-05030-00 91702-05030-00

PIN, CLEVIS

PIN, CLEVIS
$2.95
No Longer Available
Required: 1
5
91490-16020-00 - Cotter Pin
91490-16020-00
91490-16020-00 91490-16020-00

PIN, COTTER

PIN, COTTER
$5.50
Leaves in 3-5 days
Required: 1
7
93306-00436-00 - Bearing
93306-00436-00
93306-00436-00 93306-00436-00

BEARING

BEARING
$23.74
You save $1.25. $24.99
Leaves in 3-5 days
Required: 1
8
94104-060T0-00 - TIRE
94104-060T0-00 94114-062F2-00
94104-060T0-00

TIRE

TIRE
$133.99
No Longer Available
Required: 2
9
75W-25167-00-00 - Wheel Panel
75W-25167-00-00
75W-25167-00-00 75W-25167-00-00

PANEL, WHEEL 1

PANEL, WHEEL 1
$64.99
You save $2.00. $66.99
No Longer Available
Required: 2
10
75W-25177-00-00 - Wheel Panel
75W-25177-00-00
75W-25177-00-00 75W-25177-00-00

PANEL, WHEEL 2

PANEL, WHEEL 2
$59.99
No Longer Available
Required: 2
11
93900-00030-00 - Rim (Tr412) Valve
93900-00030-00
93900-00030-00 93900-00030-00

VALVE, RIM (TR412)

VALVE, RIM (TR412)
Notes: TAIHEIYO
$9.95
$9.99
Leaves in 3-5 days
Required: 2
12
132-16369-00-00 - Obsolete Yamaha Part
132-16369-00-00 93210-03661-00
132-16369-00-00

O-RING

O-RING
$14.95
$14.99
Leaves in 3-5 days
Required: 2
13
7KE-47533-00-00 - Sprocket Wheel Boss
7KE-47533-00-00
7KE-47533-00-00 7KE-47533-00-00

BOSS, SPRKT WHEEL

BOSS, SPRKT WHEEL
$22.79
You save $1.20. $23.99
Leaves in 3-5 days
Required: 2
14
95817-08016-00 - Flange Bolt
95817-08016-00 95816-08016-00
95817-08016-00

BOLT, FLANGE

BOLT, FLANGE
$1.90
You save 5%. $2.00
Leaves in 3-5 days
Required: 8
15
7VY-F5126-00-00 - PIN,PIVOT
7VY-F5126-00-00 7KE-25126-00-00
7VY-F5126-00-00

PIN, PIVOT

PIN, PIVOT
$32.29
You save $1.70. $33.99
Leaves in 3-5 days
Required: 2
16
7KE-47357-00-00 - Wheel Chain
7KE-47357-00-00
7KE-47357-00-00 7KE-47357-00-00

CHAIN, WHEEL

CHAIN, WHEEL
$222.99
No Longer Available
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
