1997 Yamaha Outboard 150hp - 150TJRV

FUEL 2 S200 L200 section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

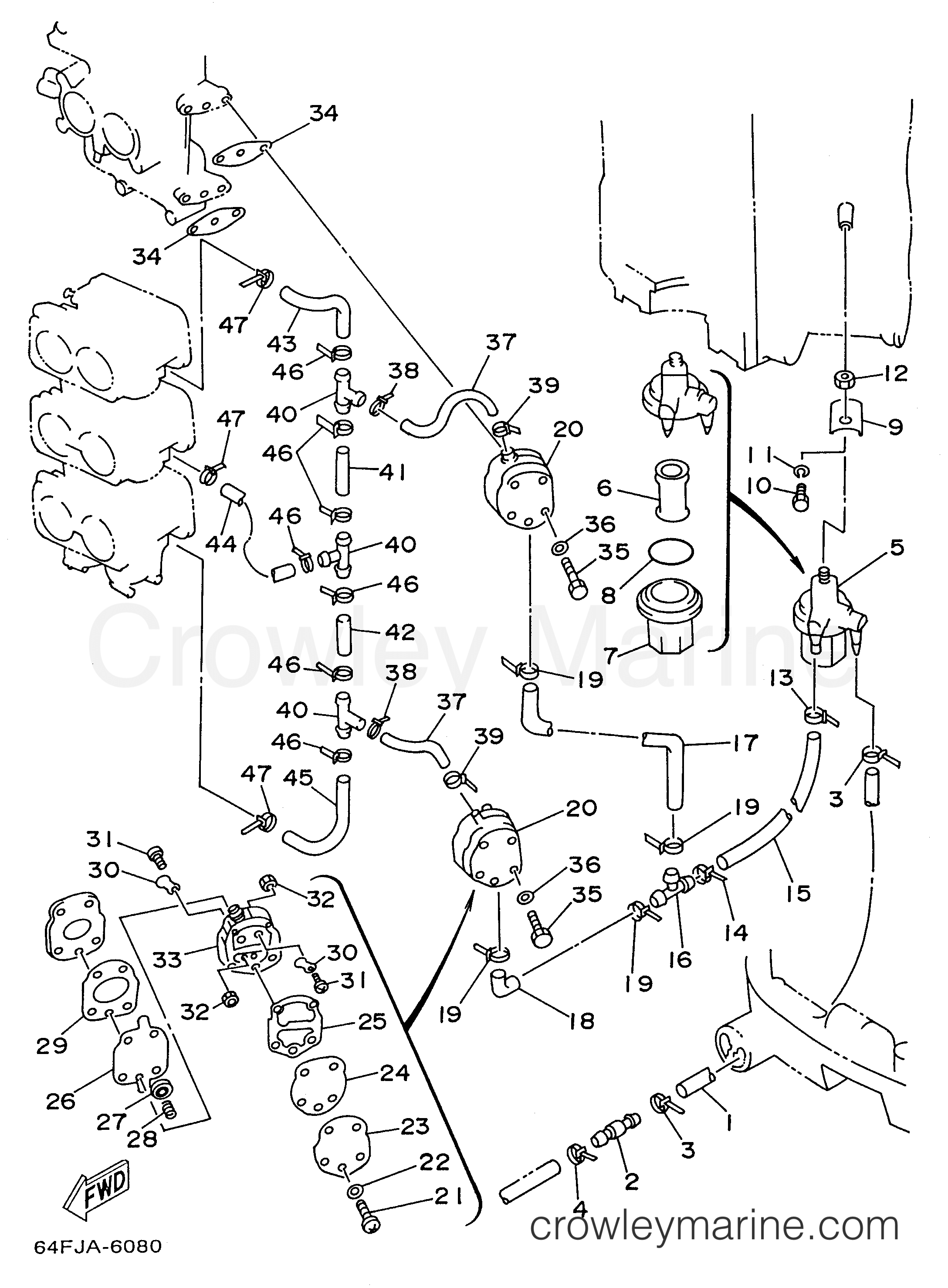

1997 Yamaha Outboard 150hp - 150TJRV FUEL 2 S200 L200 section
Use two fingers to zoom
and move the diagram
1997 Yamaha Outboard 150hp - 150TJRV - FUEL 2 S200 L200 section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

15
6G5-24314-00-00 - Pipe
6G5-24314-00-00
6G5-24314-00-00 6G5-24314-00-00

PIPE 4

PIPE 4
$8.60
You save 5%. $9.05
Leaves in 3-5 days
Required: 1
17
6K7-24315-00-00 - Pipe
6K7-24315-00-00
6K7-24315-00-00 6K7-24315-00-00

PIPE 5

PIPE 5
$9.95
You save 13%. $11.45
Leaves in 3-5 days
Required: 1
23
6E5-24413-00-00 - Body
6E5-24413-00-00
6E5-24413-00-00 6E5-24413-00-00

.BODY 2

.BODY 2
$33.77
You save $1.78. $35.55
Leaves in 3-5 days
Required: 1
24
6E5-24471-00-00 - Diaphragm
6E5-24471-00-00
6E5-24471-00-00 6E5-24471-00-00

.DIAPHRAGM

.DIAPHRAGM
$26.13
You save $1.37. $27.50
Leaves in 3-5 days
Required: 1
27
648-24424-00-00 - Spring Seat
648-24424-00-00
648-24424-00-00 648-24424-00-00

.SEAT, SPRING

.SEAT, SPRING
$3.52
You save 5%. $3.70
Leaves in 3-5 days
Required: 1
33
6E5-24412-02-00 - BODY 1
6E5-24412-02-00
6E5-24412-02-00 6E5-24412-02-00

.BODY 1

.BODY 1
$98.90
$98.90
No Longer Available
Required: 1
35
97095-06050-00 - BOLT
97095-06050-00
97095-06050-00 97095-06050-00

BOLT

BOLT
$1.44
$1.44
No Longer Available
Required: 4
43
6K7-24317-00-00 - Pipe
6K7-24317-00-00
6K7-24317-00-00 6K7-24317-00-00

PIPE 7

PIPE 7
$8.60
You save 5%. $9.05
Leaves in 3-5 days
Required: 1
45
6K7-24319-00-00 - Oil Pipe
6K7-24319-00-00
6K7-24319-00-00 6K7-24319-00-00

PIPE, OIL

PIPE, OIL
$8.60
You save 5%. $9.05
Leaves in 3-5 days
Required: 1
