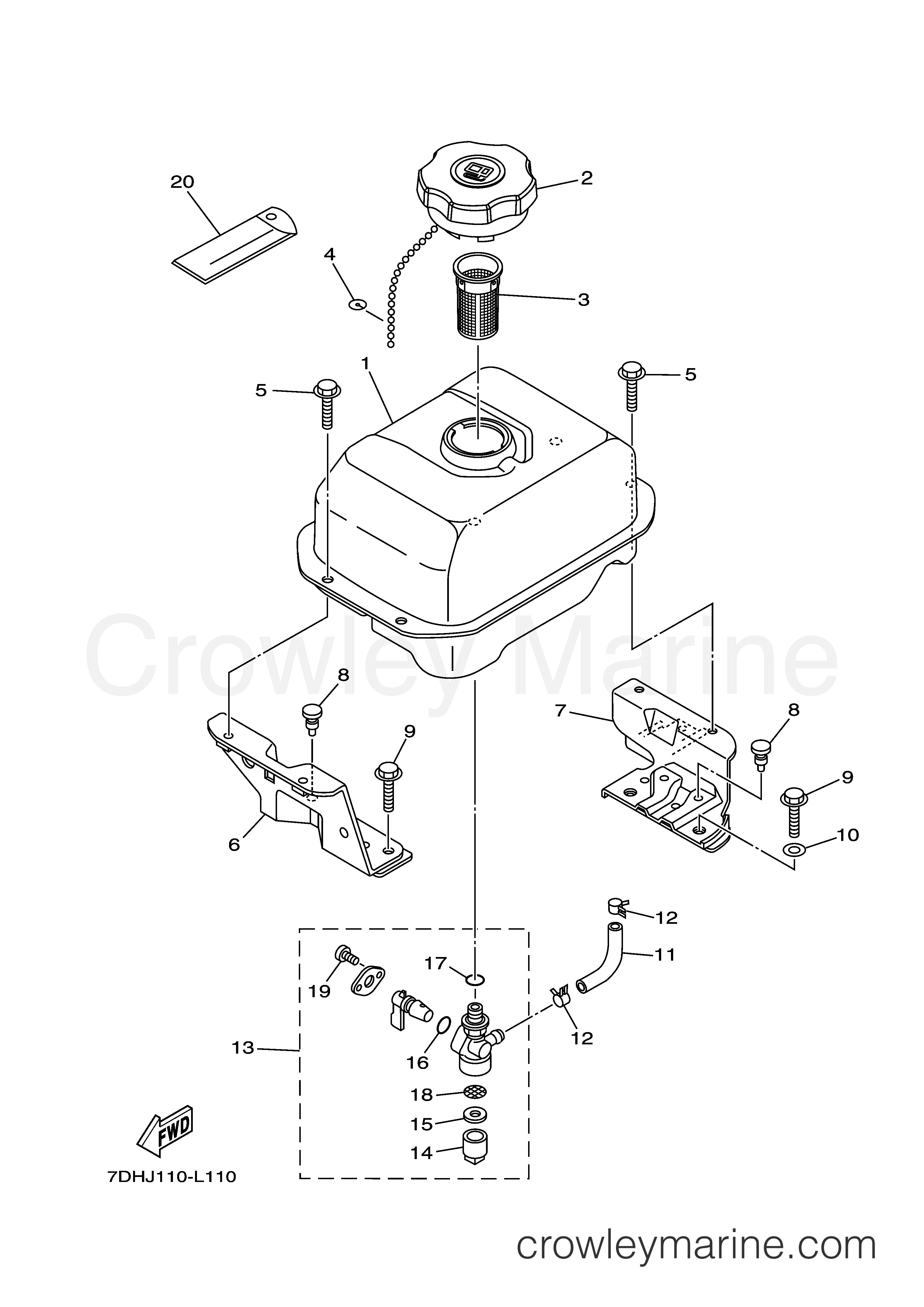

2011 UTV 200 - MZ200AAIA6 FUEL TANK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2011 UTV 200 - MZ200AAIA6 - FUEL TANK 2011 UTV 200 - MZ200AAIA6 - FUEL TANK
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
Fuel Tank Complete
7CN-F4110-40-00 ← 7CN-F4110-40-00

FUEL TANK COMP.

$154.95
You save $8.04. $162.99
Cross Ship
2
COMMUTATOR END CAP ASSEMBLY
7HC-F4610-00-00

CAP ASSY

$79.95
You save $4.04. $83.99
Cross Ship
3
Strainer
7CT-F4167-00-00 ← 7CT-F4167-00-00

STRAINER

$13.29
You save 5%. $13.99
Cross Ship
6
Fuel Tank Stay
7CN-F4115-00-00 ← 7CN-F4115-00-00

STAY, FUEL TANK 1

$19.95
You save $1.04. $20.99
Cross Ship
7
Fuel Tank Stay
7CN-F4116-00-00 ← 7CN-F4116-00-00

STAY, FUEL TANK 2

$18.52
You save 5%. $19.49
Cross Ship
8
Plug
90338-05800-00 ← 90338-05800-00

PLUG

$1.66
You save 5%. $1.75
Cross Ship
10
Plate Washer
90201-08826-00 ← 90201-08826-00

WASHER, PLATE

$2.14
You save 5%. $2.25
Cross Ship
11
Fuel Pipe
7BN-F4311-00-00 ← 7BN-F4311-00-00

PIPE, FUEL 1

$13.99
No longer available
12
Clip
90467-09806-00 ← 90467-09806-00

CLIP

$1.57
You save 5%. $1.65
Cross Ship
14
Filter Cup
7J3-24521-00-00 ← 7J3-24521-00-00

.CUP, FILTER

$2.14
You save 5%. $2.25
Cross Ship
16
Cock Seal
7NJ-24534-00-00 ← 7NJ-24534-00-00

.SEAL, COCK

$2.76
You save 5%. $2.90
Cross Ship
17
Gasket
7NJ-24532-00-00 ← 7NJ-24532-00-00

.GASKET

$1.62
You save 5%. $1.70
Cross Ship
18
Filter Net
7NJ-24515-01-00 ← 7NJ-24515-01-00

.NET, FILTER 2

$2.23
You save 5%. $2.35
Cross Ship
20
Tool Kit
7CA-F8100-01-00 ← 7CA-F8100-01-00

TOOL KIT

$3.37
You save 5%. $3.55
Cross Ship
