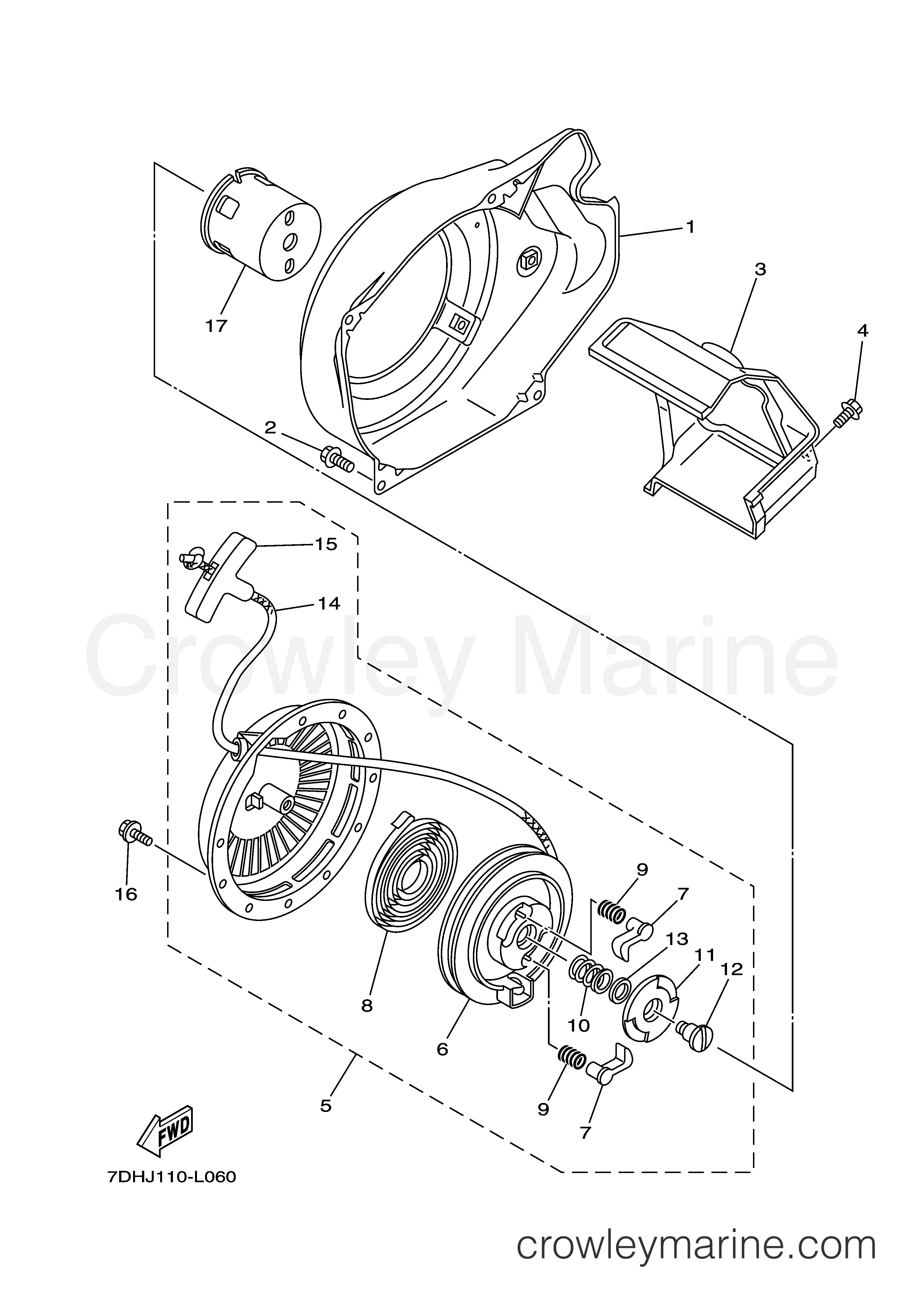

2011 UTV 200 - MZ200AAIA6 AIR SHROUD STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2011 UTV 200 - MZ200AAIA6 - AIR SHROUD STARTER 2011 UTV 200 - MZ200AAIA6 - AIR SHROUD STARTER
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
Fan Case
7CN-E2621-31-00

CASE, FAN

$44.95
You save $2.04. $46.99
Cross Ship
5
Starter Assembly
7DH-E5710-00-00 ← 7DH-E5710-00-00

STARTER ASSY

$83.13
You save $4.38. $87.51
Cross Ship
7
Drive Pawl
7DH-E5741-00-00 ← 7DH-E5741-00-00

.PAWL, DRIVE

$5.95
$5.99
Cross Ship
8
Starter Spring
7DH-E5713-00-00 ← 7DH-E5713-00-00

.SPRING, STARTER

$17.57
You save 5%. $18.49
Cross Ship
11
Drive Plate
7DH-E5716-00-00 ← 7DH-E5716-00-00

.PLATE, DRIVE

$6.64
You save 5%. $6.99
Cross Ship
12
Screw
7DH-E5793-00-00 ← 7DH-E5793-00-00

.SCREW

$6.64
You save 5%. $6.99
Cross Ship
13
Thrust Washer
7DH-E5719-00-00 ← 7DH-E5719-00-00

.WASHER, THRUST

$6.17
You save 5%. $6.49
Cross Ship
14
Starter Wire
7DH-E5751-00-00 ← 7DH-E5751-00-00

.WIRE, STARTER

$12.82
You save 5%. $13.49
Cross Ship
15
Starter Handle
7DH-E5755-00-00 ← 7DH-E5755-00-00

.HANDLE, STARTER

$8.54
You save 5%. $8.99
Cross Ship
17
Starter Pulley
7DH-E5723-00-00 ← 7DH-E5723-00-00

PULLEY, STARTER

$16.14
You save 5%. $16.99
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
