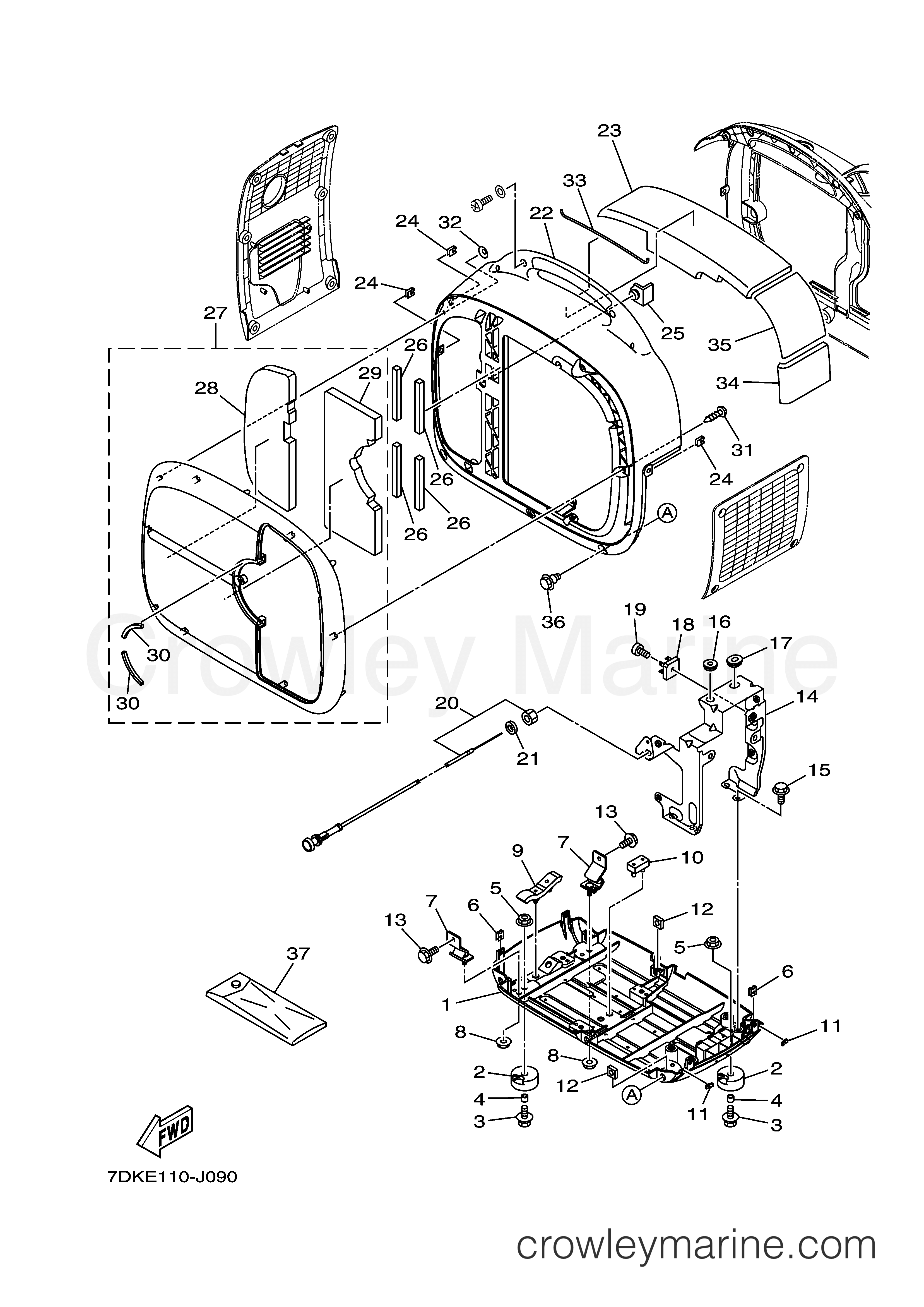

2010 Generator 2000 - EF2000ISCH FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2010 Generator 2000 - EF2000ISCH - FRAME 2010 Generator 2000 - EF2000ISCH - FRAME
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

4
COLLAR
90387-06113-00

COLLAR

$9.95
$9.99
Cross Ship
5
Flange Nut
95702-06500-00 ← 95702-06500-00

NUT, FLANGE

$2.09
You save 5%. $2.20
Cross Ship
6
Spring Nut
90183-05061-00 ← 90183-05061-00

NUT, SPRING

$4.35
Cross Ship
8
Flange Nut
95702-06500-00 ← 95702-06500-00

NUT, FLANGE

$2.09
You save 5%. $2.20
Cross Ship
12
Square Nut
90173-06008-00 ← 90173-06008-00

NUT, SQUARE

$1.95
You save 5%. $2.05
Cross Ship
15
Flange Bolt
95817-06010-00

BOLT, FLANGE

$4.99
You save 23%. $6.49
Ships immediately
4 in stock
17
Grommet
90480-01558-00 ← 90480-01558-00

GROMMET

$3.14
You save 5%. $3.30
Cross Ship
18
Rectifier Assembly
7VU-87105-00-00 ← 7VU-87105-00-00

RECTIFIER ASSY 1

$31.34
You save $1.65. $32.99
Cross Ship
19
Pan Head Screw
98580-05014-00

.SCREW, PAN HEAD

$4.99
You save 23%. $6.49
Ships immediately
1 in stock
22
Front Cover
7PB-F2865-01-00

COVER, FRONT

$38.57
You save $2.03. $40.60
Cross Ship
23
Seal
7PB-F2873-00-00

SEAL 1

$4.95
$4.99
Cross Ship
24
Spring Nut
90183-05061-00 ← 90183-05061-00

NUT, SPRING

$4.35
Cross Ship
25
Stopper
7PB-F282E-00-00

STOPPER

$2.23
You save 5%. $2.35
Cross Ship
27
Cover Assembly
7PB-F28B0-21-00

COVER ASSY 2

$209.95
You save $13.04. $222.99
Cross Ship
28
Seal
7PB-F2874-00-00

.SEAL 2

$3.99
You save 5%. $4.20
Cross Ship
29
Seal
7PB-F2875-00-00

.SEAL 3

$2.99
You save 5%. $3.15
Cross Ship
31
Tapping Screw
97702-50016-00 ← 97702-50016-00

SCREW, TAPPING

$2.09
You save 5%. $2.20
Cross Ship
32
Spring Nut
90183-05003-00

NUT, SPRING

$6.17
You save 5%. $6.49
Cross Ship
35
Plate Damper
90520-05010-00 ← 90520-05010-00

DAMPER, PLATE

$0.95
You save 5%. $1.00
Cross Ship
36
Bolt
90109-06278-00 ← 90109-06278-00

BOLT

$1.47
You save 5%. $1.55
Cross Ship
37
Tool Kit
7CN-F8100-20-00

TOOL KIT

$11.39
You save 5%. $11.99
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
