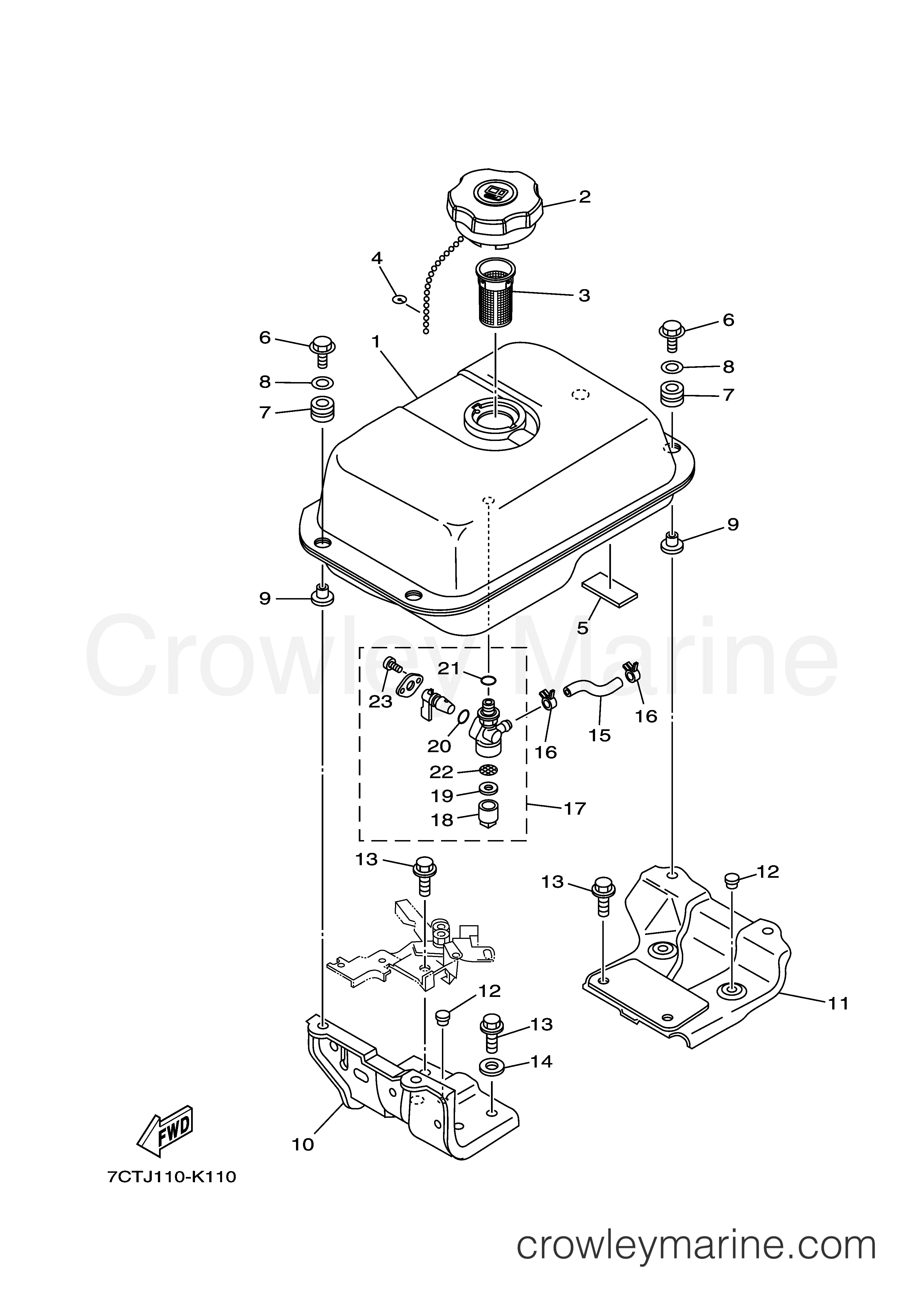

2011 UTV 360 - MZ360A2CP FUEL TANK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2011 UTV 360 - MZ360A2CP - FUEL TANK 2011 UTV 360 - MZ360A2CP - FUEL TANK
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
Fuel Tank Complete
7CT-F4110-50-00 ← 7CT-F4110-50-00

FUEL TANK COMP.

$189.99
You save $10.00. $199.99
Cross Ship
2
COMMUTATOR END CAP ASSEMBLY
7HC-F4610-00-00

CAP ASSY

$79.95
You save $4.04. $83.99
Cross Ship
3
Strainer
7CN-F4167-00-00 ← 7CN-F4167-00-00

STRAINER

$18.52
You save 5%. $19.49
Cross Ship
6
Bolt
7CT-F4176-00-00 ← 7CT-F4176-00-00

BOLT 1

$1.66
You save 5%. $1.75
Cross Ship
7
Grommet
90480-12475-00

GROMMET

$5.95
$5.99
Cross Ship
8
Plate Washer
90201-06085-00 ← 90201-06085-00

WASHER, PLATE

$2.84
You save 5%. $2.99
Cross Ship
9
Collar
90387-067K8-00

COLLAR

$4.95
$4.99
Cross Ship
10
Fuel Tank Stay
7CT-F4115-00-00 ← 7CT-F4115-00-00

STAY, FUEL TANK 1

$44.95
You save $2.04. $46.99
Cross Ship
11
Fuel Tank Stay
7CT-F4116-00-00 ← 7CT-F4116-00-00

STAY, FUEL TANK 2

$39.95
You save $3.04. $42.99
Cross Ship
12
Plug
90338-05800-00 ← 90338-05800-00

PLUG

$1.66
You save 5%. $1.75
Cross Ship
13
Flange Bolt
95812-08020-00 ← 95812-08020-00

BOLT, FLANGE

$2.39
You save 5%. $2.52
Cross Ship
14
Plate Washer
90201-08826-00 ← 90201-08826-00

WASHER, PLATE

$2.14
You save 5%. $2.25
Cross Ship
15
Fuel Pipe 1
7CA-24311-10-00

PIPE, FUEL 1

$9.97
You save 5%. $10.49
Cross Ship
16
Clip
90467-09806-00 ← 90467-09806-00

CLIP

$1.57
You save 5%. $1.65
Cross Ship
18
Filter Cup
7J3-24521-00-00 ← 7J3-24521-00-00

.CUP, FILTER

$2.14
You save 5%. $2.25
Cross Ship
20
Cock Seal
7NJ-24534-00-00 ← 7NJ-24534-00-00

.SEAL, COCK

$2.76
You save 5%. $2.90
Cross Ship
21
Gasket
7NJ-24532-00-00 ← 7NJ-24532-00-00

.GASKET

$1.62
You save 5%. $1.70
Cross Ship
22
Filter Net
7NJ-24515-01-00 ← 7NJ-24515-01-00

.NET, FILTER 2

$2.23
You save 5%. $2.35
Cross Ship
