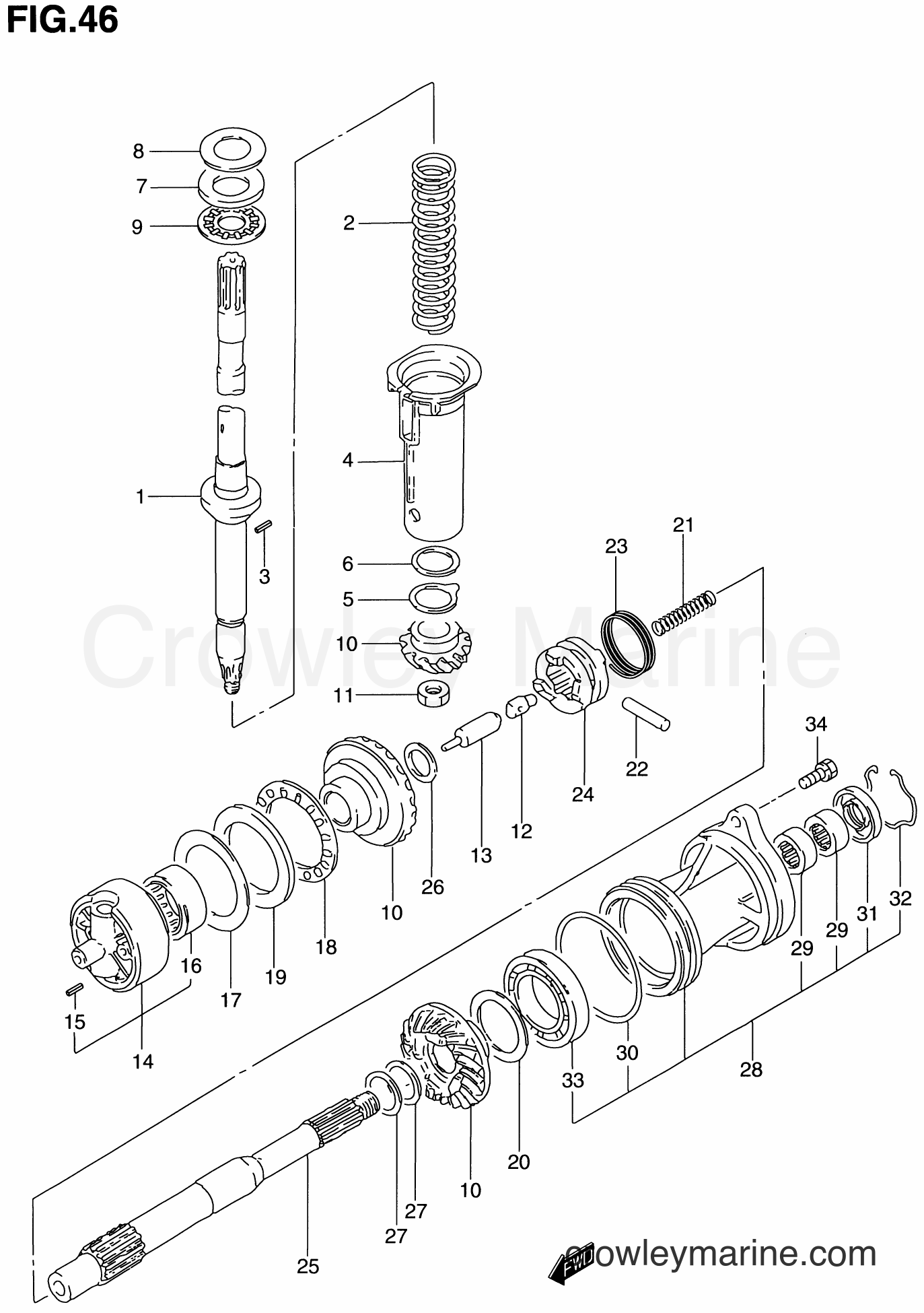

1986 Two-Stroke Outboard 115 - DT115 TRANSMISSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1986 Two-Stroke Outboard 115 - DT115 - TRANSMISSION 1986 Two-Stroke Outboard 115 - DT115 - TRANSMISSION
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
Obsolete Suzuki Part
57100-94550 ← 57100-94550

SHAFT ASSY, DRIVE (X)

Notes:DT115:812289~
$439.95
You save $1.05. $441.00
No longer available
3
PIN
09205-04019 ← 09205-04019

.PIN

$1.44
You save 5%. $1.52
Cross Ship
8
SHIM(0.6)
09181-30299 ← 09181-30299

SHIM (T:0.6)

$3.41
No longer available
8
SHIM(0.7)
09181-30300 ← 09181-30300

SHIM (T:0.7)

$4.11
No longer available
8
Obsolete Suzuki Part
09181-30302 ← 09181-30302

SHIM (T:0.8)

$3.19
No longer available
8
Obsolete Suzuki Part
09181-30304 ← 09181-30304

SHIM (T:0.9)

$2.47
No longer available
8
Obsolete Suzuki Part
09181-30306 ← 09181-30306

SHIM (T:1.0)

$3.36
No longer available
8
Obsolete Suzuki Part
09181-30312 ← 09181-30312

SHIM (T:1.1)

$3.74
No longer available
8
SHIM,30X52X1.2
09181-30316 ← 09181-30316

SHIM (T:1.2)

$3.95
No longer available
11
NUT,PINION
09140-16021 ← 09140-16021

NUT

$3.38
You save 5%. $3.56
Cross Ship
15
PIN
09205-05011 ← 09205-05011

.PIN (L:14)

$1.29
You save 5%. $1.36
Cross Ship
16
RN 50X62X25 BRG
09263-50001 ← 09263-50001

.BEARING (50X62X25)

$57.99
You save $1.21. $59.20
Ships immediately
1 in stock
17
SHIM,FORWARD GE
09181-70008 ← 09181-70008

SHIM (T:0.55)

$6.96
You save 5%. $7.33
Cross Ship
17
SHIM,FORWARD GE
09181-70009 ← 09181-70009

SHIM (T:0.65)

$6.86
You save 5%. $7.22
Cross Ship
17
SHIM,FORWARD GE
09181-70010 ← 09181-70010

SHIM (T:0.75)

$6.86
You save 5%. $7.22
Cross Ship
17
SHIM,FORWARD GE
09181-70011 ← 09181-70011

SHIM (T:0.85)

$6.86
You save 5%. $7.22
Cross Ship
17
SHIM,FORWARD GE
09181-70012 ← 09181-70012

SHIM (T:0.95)

$9.95
You save 14%. $11.53
Cross Ship
20
Shim
09181-45003 ← 09181-45003

SHIM (T:1.0)

$3.30
You save 5%. $3.47
Cross Ship
20
Shim
09181-45005 ← 09181-45005

SHIM (T:1.2)

$3.30
You save 5%. $3.47
Cross Ship
20
Shim
09181-45006 ← 09181-45006

SHIM (T:1.3)

$3.35
You save 5%. $3.53
Cross Ship
20
Shim
09181-45007 ← 09181-45007

SHIM (T:1.4)

$3.30
You save 5%. $3.47
Cross Ship
20
Shim
09181-45008 ← 09181-45008

SHIM (T:1.5)

$3.35
You save 5%. $3.53
Cross Ship
20
Shim
09181-45009 ← 09181-45009

SHIM (T:1.6)

$3.30
You save 5%. $3.47
Cross Ship
21
Spring
09440-11020 ← 09440-11020

SPRING (D:1.8)

$1.96
You save 5%. $2.06
Cross Ship
23
SPRING DOG
09440-50002 ← 09440-50002

SPRING

$1.99
You save 13%. $2.28
Ships immediately
1 in stock
25
SHAFT ASSY,PROP
57610-94520 ← 57610-94520

SHAFT, PROPELLER

Notes:MODEL: 92-01
$349.95
You save $20.27. $370.22
Cross Ship
26
Shim
09181-25030 ← 09181-25030

SHIM (25X32X3)

$2.99
You save 14%. $3.47
Ships immediately
2 in stock
32
SET RING (SUS)
09387-52001 ← 09387-52001

.RING

$2.57
You save 5%. $2.71
Cross Ship
33
B1 45X75X16 BEA
08113-60097 ← 08113-60097

.BEARING

$49.95
You save $3.34. $53.29
Cross Ship
Notes:DT140:~811649 ->57100-94540 USED WITH 09420-05006 DT140:811650~ DT140:~811649 ->57100-94550 USED WITH 09420-05006 DT140:811650~
Cross Ship
