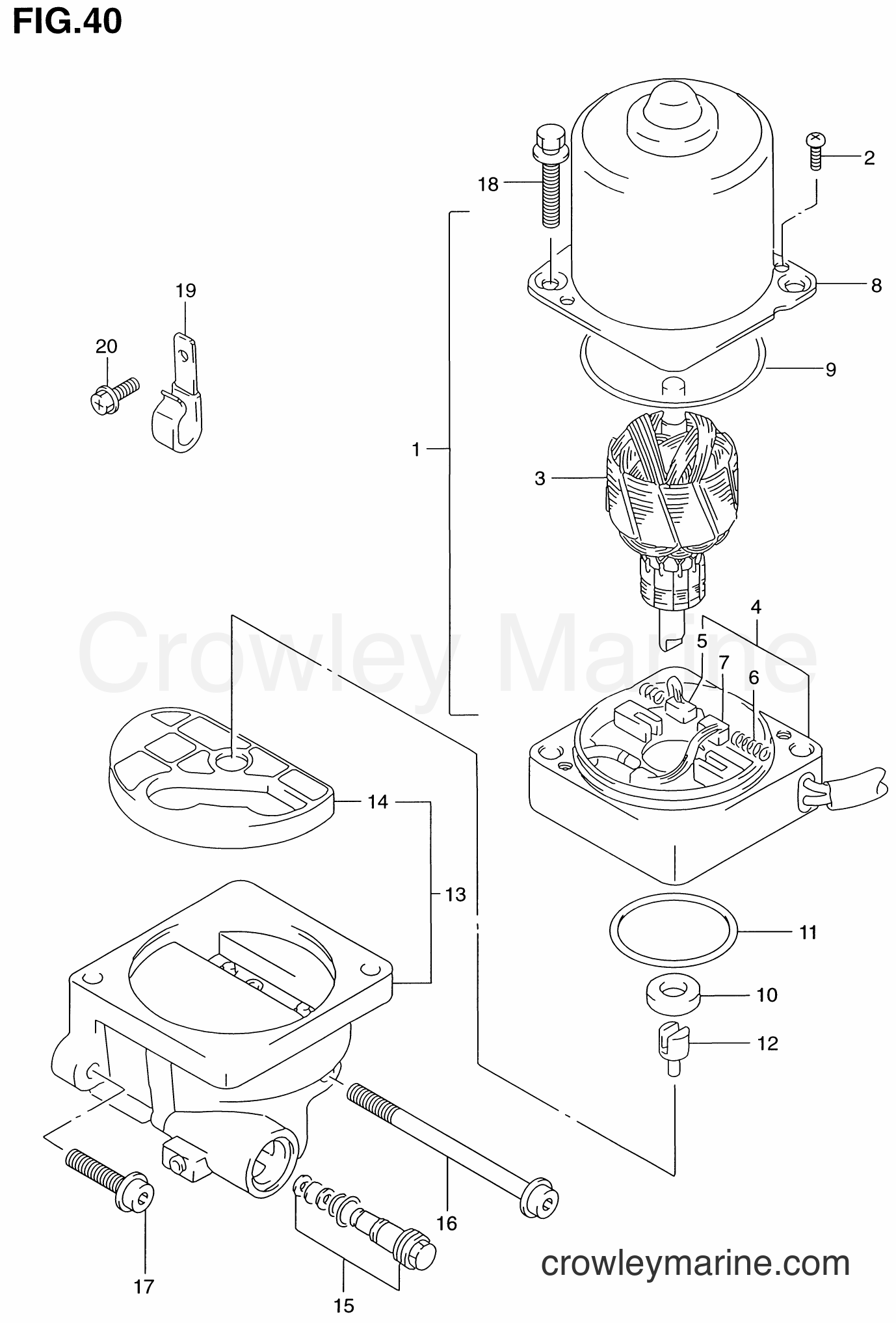

1986 Two-Stroke Outboard 115 - DT115 POWER UNIT (MODEL:96~01) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1986 Two-Stroke Outboard 115 - DT115 - POWER UNIT (MODEL:96~01) 1986 Two-Stroke Outboard 115 - DT115 - POWER UNIT (MODEL:96~01)
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
Obsolete Suzuki Part
38100-94900-0ED ← 38100-94900-0ED

MOTOR ASSY, PTT

$768.00
$768.46
No longer available
2
SCREW, YOKE
31111-94900 ← 31111-94900

.SCREW

$4.25
Cross Ship
3
Obsolete Suzuki Part
31311-94900 ← 31311-94900

.ARMATURE

$309.95
You save $1.60. $311.55
No longer available
8
Obsolete Suzuki Part
31110-94900 ← 31110-94900

.YOKE

$314.95
You save $1.42. $316.37
No longer available
12
JOINT, DRIVE
48583-95E00 ← 48583-95E00

JOINT

$9.95
You save 8%. $10.87
Cross Ship
13
PUMP ASSY,PTT
48502-94901 ← 48502-94901

PUMP

$449.36
No longer available
14
Filter
48582-95E01

.FILTER

$34.95
You save $2.84. $37.79
Cross Ship
15
VALVE SET,MANUA
48864-94911 ← 48864-94911

.VALVE SET, MANUAL

Notes:MODEL:99~01
$129.95
You save $6.36. $136.31
Cross Ship
16
BOLT
48862-95E00 ← 48862-95E00

BOLT

$11.40
No longer available
17
BOLT
48862-95E10 ← 48862-95E10

BOLT

$12.16
You save 5%. $12.80
Cross Ship
18
BOLT,THROUGH
31281-95E00 ← 31281-95E00

BOLT, THROUGH

$8.25
You save 5%. $8.68
Cross Ship
19
Clamp
09403-17304 ← 09403-17304

CLAMP

$3.11
No longer available
20
BOLT
02162-06127 ← 02162-06127

BOLT

$1.36
You save 5%. $1.43
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
