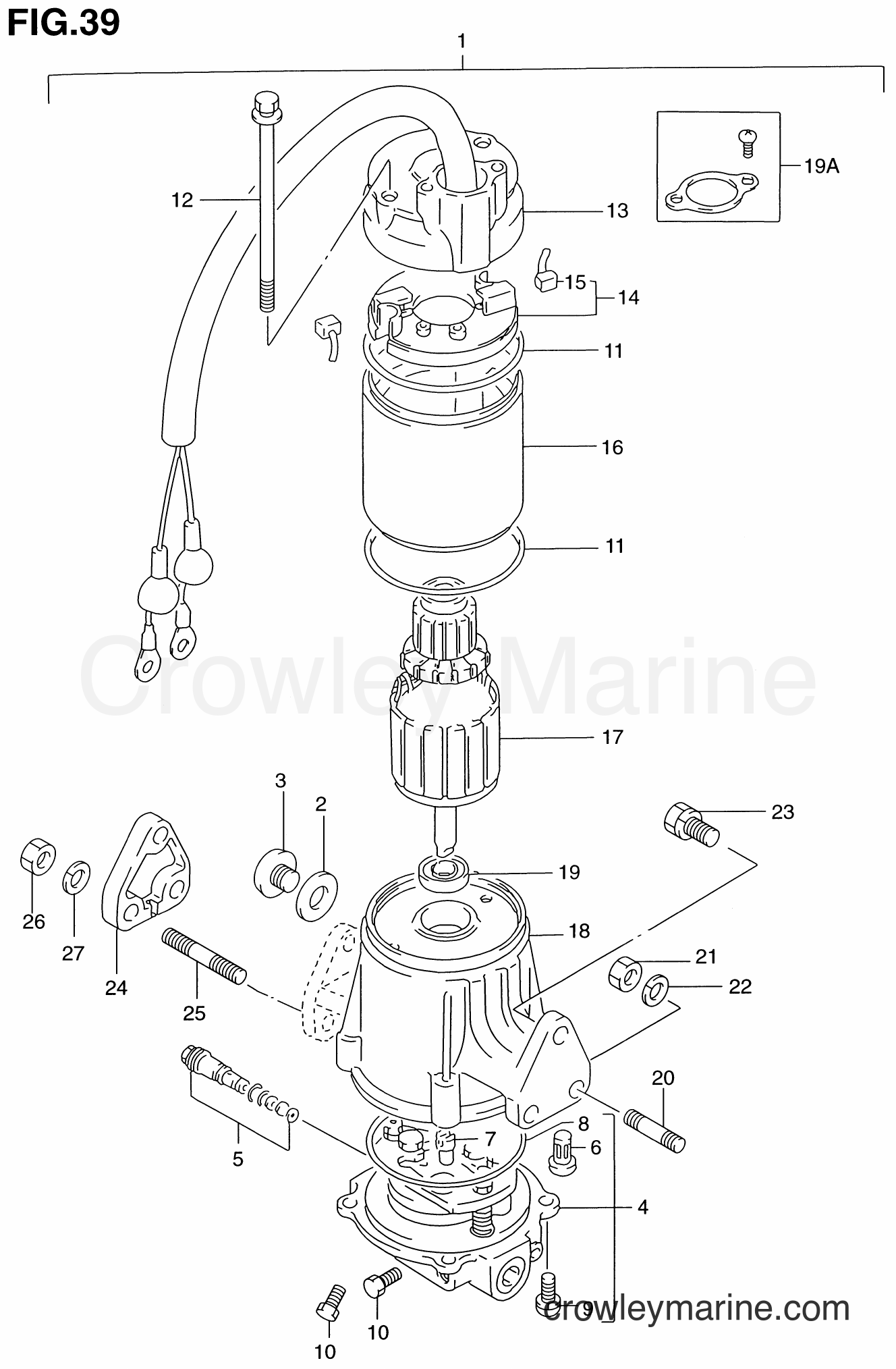

1986 Two-Stroke Outboard 115 - DT115 POWER UNIT (MODEL:90~95) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1986 Two-Stroke Outboard 115 - DT115 - POWER UNIT (MODEL:90~95) 1986 Two-Stroke Outboard 115 - DT115 - POWER UNIT (MODEL:90~95)
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
Obsolete Suzuki Part
48511-95500 ← 48511-95500

.PLUG

$11.46
No longer available
13
Obsolete Suzuki Part
31170-94610-0ED ← 31170-94610-0ED

.COVER, UPPER

$152.71
No longer available
14
Brush Holder
31173-94620 ← 31173-94620

.HOLDER,BRUSH

$243.78
You save $12.83. $256.61
Cross Ship
15
Brush
31133-94610 ← 31133-94610

..BRUSH

$13.25
You save 5%. $13.95
Cross Ship
16
Obsolete Suzuki Part
31110-94610-0ED ← 31110-94610-0ED

.YOKE ASSY

$329.68
No longer available
17
Obsolete Suzuki Part
31311-94610 ← 31311-94610

.ARMATURE

$489.02
No longer available
18
Obsolete Suzuki Part
48570-94610-0ED ← 48570-94610-0ED

.RESERVOIR

$199.05
No longer available
19
Oil Seal
33799-94610 ← 33799-94610

.SEAL,OIL

$27.40
You save $1.44. $28.84
Cross Ship
20
Stud Bolt
09108-08130 ← 09108-08130

BOLT, STUD

$5.49
Cross Ship
23
Obsolete Suzuki Part
09117-08074 ← 09117-08074

BOLT (8X22)

$2.33
No longer available
24
Obsolete Suzuki Part
48131-95200 ← 48131-95200

SPACER

Notes:OPT:PORT SIDE
$3.95
No longer available
26
Nut
09140-08023-XC0

NUT

Notes:OPT:PORT SIDE
$2.33
You save 5%. $2.45
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
