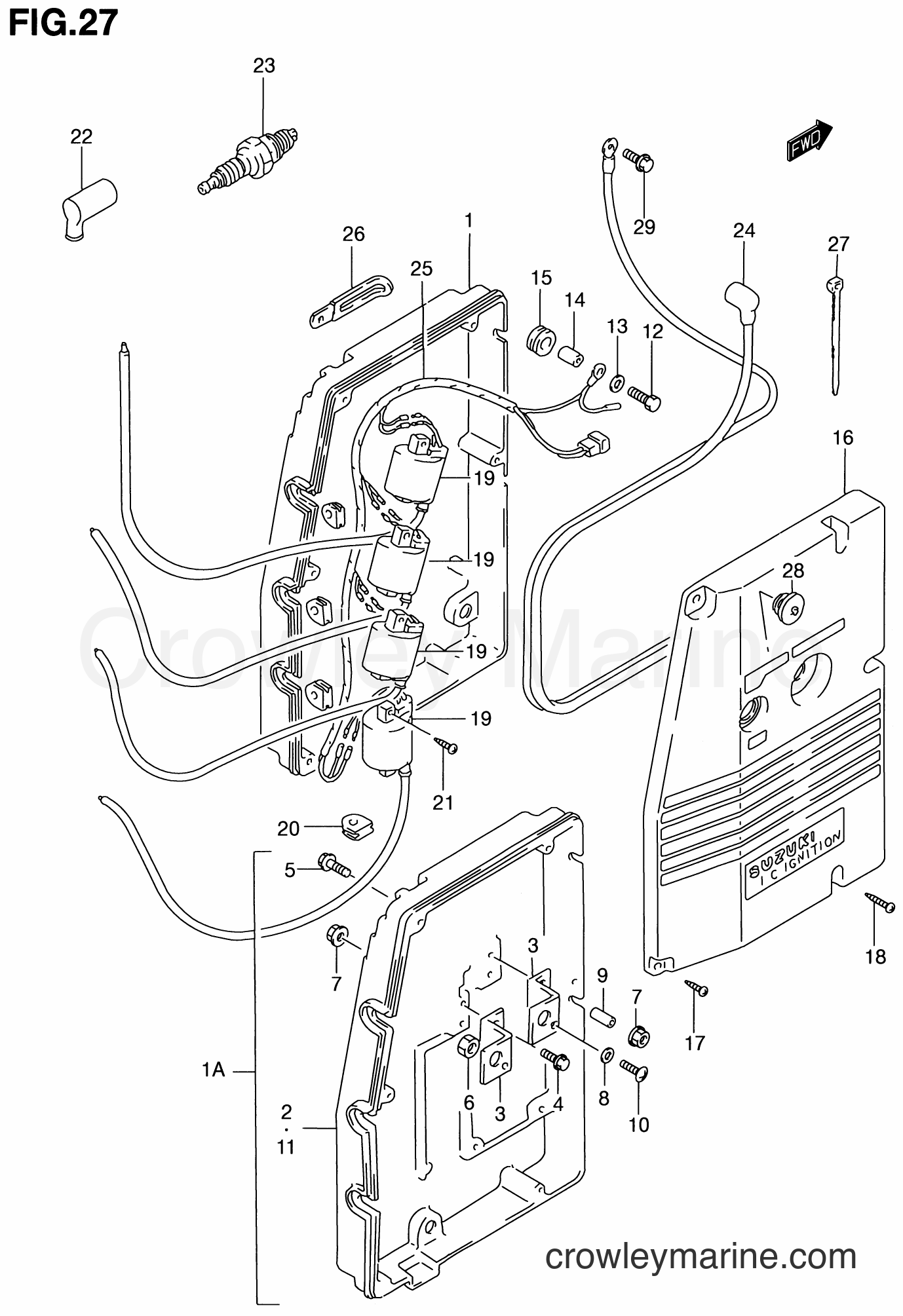

1986 Two-Stroke Outboard 115 - DT115 IGNITION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1986 Two-Stroke Outboard 115 - DT115 - IGNITION 1986 Two-Stroke Outboard 115 - DT115 - IGNITION
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

4
BOLT
01550-0625A

.BOLT

$1.78
You save 5%. $1.87
Cross Ship
5
BOLT
01550-0616A

.BOLT

$1.78
You save 5%. $1.87
Cross Ship
7
Nut
08316-1006B

.NUT

$2.26
You save 5%. $2.38
Cross Ship
8
WASHER HANDLE C
09160-06052

.WASHER

$1.28
You save 5%. $1.35
Cross Ship
10
Screw (M8 X 40)
02142-0625A

.SCREW

$1.27
You save 5%. $1.34
Cross Ship
17
Screw (M8 X 40)
03211-0520A

SCREW

$2.05
You save 5%. $2.16
Cross Ship
18
Screw (M8 X 40)
03212-0530B

SCREW

$1.89
You save 5%. $1.99
Cross Ship
21
Screw (M8 X 40)
03211-0520A

SCREW

$2.05
You save 5%. $2.16
Cross Ship
22
CAP ASSY,SPARK
33510-95520 ← 33510-95520

CAP, SPARK PLUG

Notes:MODEL:86~88
$17.17
You save 5%. $18.07
Cross Ship
22
CAP,SPARK PLUG
33510-87D20 ← 33510-87D20

CAP, SPARK PLUG

Notes:MODEL:89~97
$31.34
You save $1.65. $32.99
Cross Ship
25
Obsolete Suzuki Part
36830-94600 ← 36830-94600

WIRING, IGN COIL

Notes:MODEL:86~88
$26.51
No longer available
26
CLAMP L:62
09404-08205 ← 09404-08205

CLAMP (L:50)

$1.96
You save 5%. $2.06
Cross Ship
28
PLUG,D1:12,D2:1
09250-12005 ← 09250-12005

PLUG (D1:12,D2:17)

Notes:MODEL:91~96
$1.30
You save 5%. $1.37
Cross Ship
29
BOLT
01550-08167 ← 01550-08167

BOLT

$2.55
You save 5%. $2.68
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
