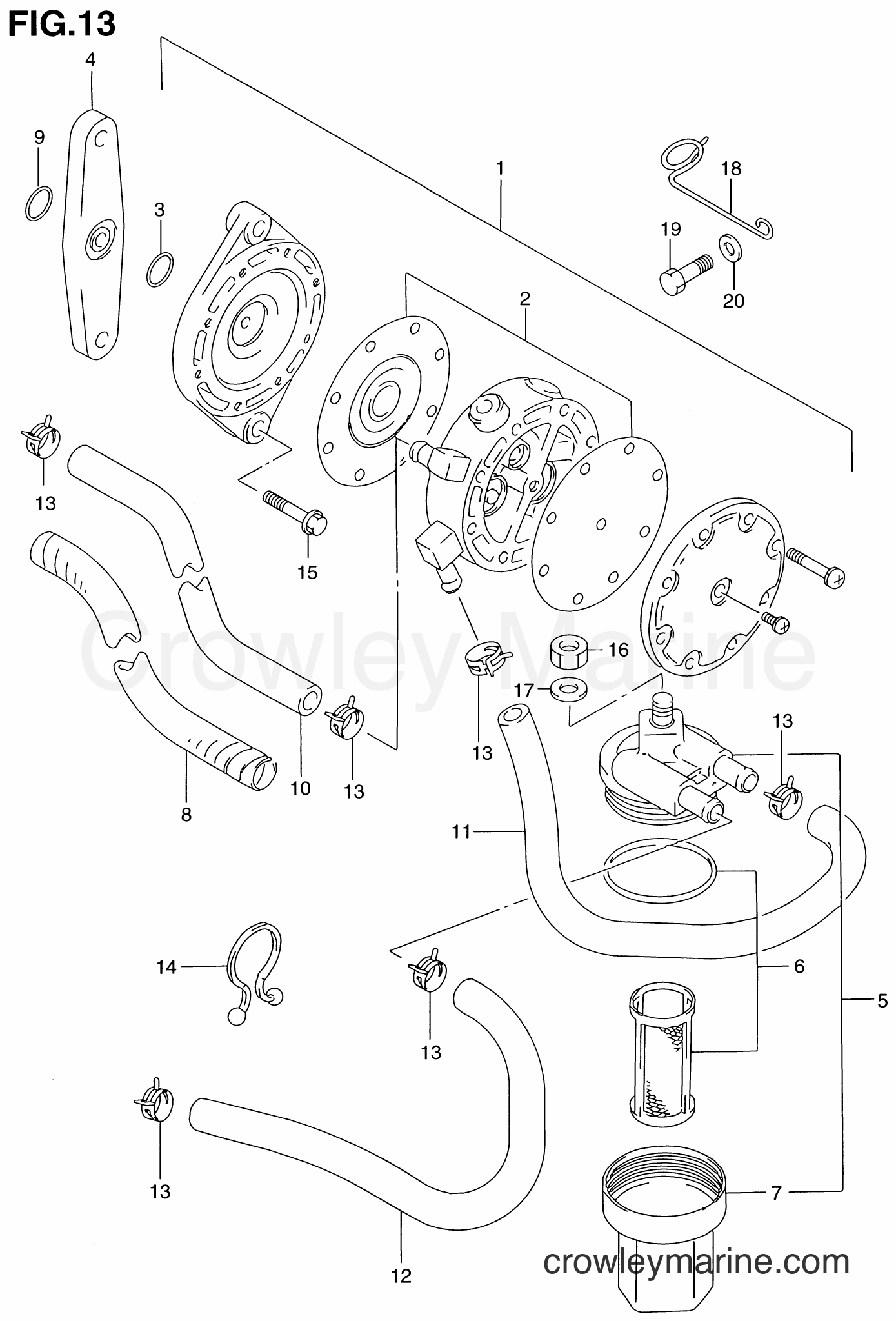

1986 Two-Stroke Outboard 115 - DT115 FUEL PUMP (DT115S/140EFI) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1986 Two-Stroke Outboard 115 - DT115 - FUEL PUMP (DT115S/140EFI) 1986 Two-Stroke Outboard 115 - DT115 - FUEL PUMP (DT115S/140EFI)
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

7
CUP
15413-87D10 ← 15413-87D10

.CUP

$8.38
You save 5%. $8.82
Cross Ship
8
PROTECTOR,OIL H
16911-92E20 ← 16911-92E20

PROTECTOR

Notes:L:540->350
$7.78
You save 5%. $8.19
Cross Ship
13
Clip
09401-11415

CLIP

$1.99
You save 7%. $2.13
Ships immediately
3 in stock
14
CLAMP FUEL HOSE
09408-00024 ← 09408-00024

CLIP

$1.36
You save 5%. $1.43
Cross Ship
16
NUT 8MM
08310-00087 ← 08310-00087

NUT

$1.75
Ships immediately
5+ in stock
17
WASHER
08322-01087 ← 08322-01087

WASHER

$1.75
Ships immediately
5+ in stock
19
BOLT,TRIM TAB
09100-08215 ← 09100-08215

BOLT (8X16)

Notes:MODEL:99~01
$2.61
You save 5%. $2.75
Cross Ship
20
WASHER
09160-08082 ← 09160-08082

WASHER (8.5X16X1.2)

Notes:MODEL:99~01
$1.46
You save 5%. $1.54
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
