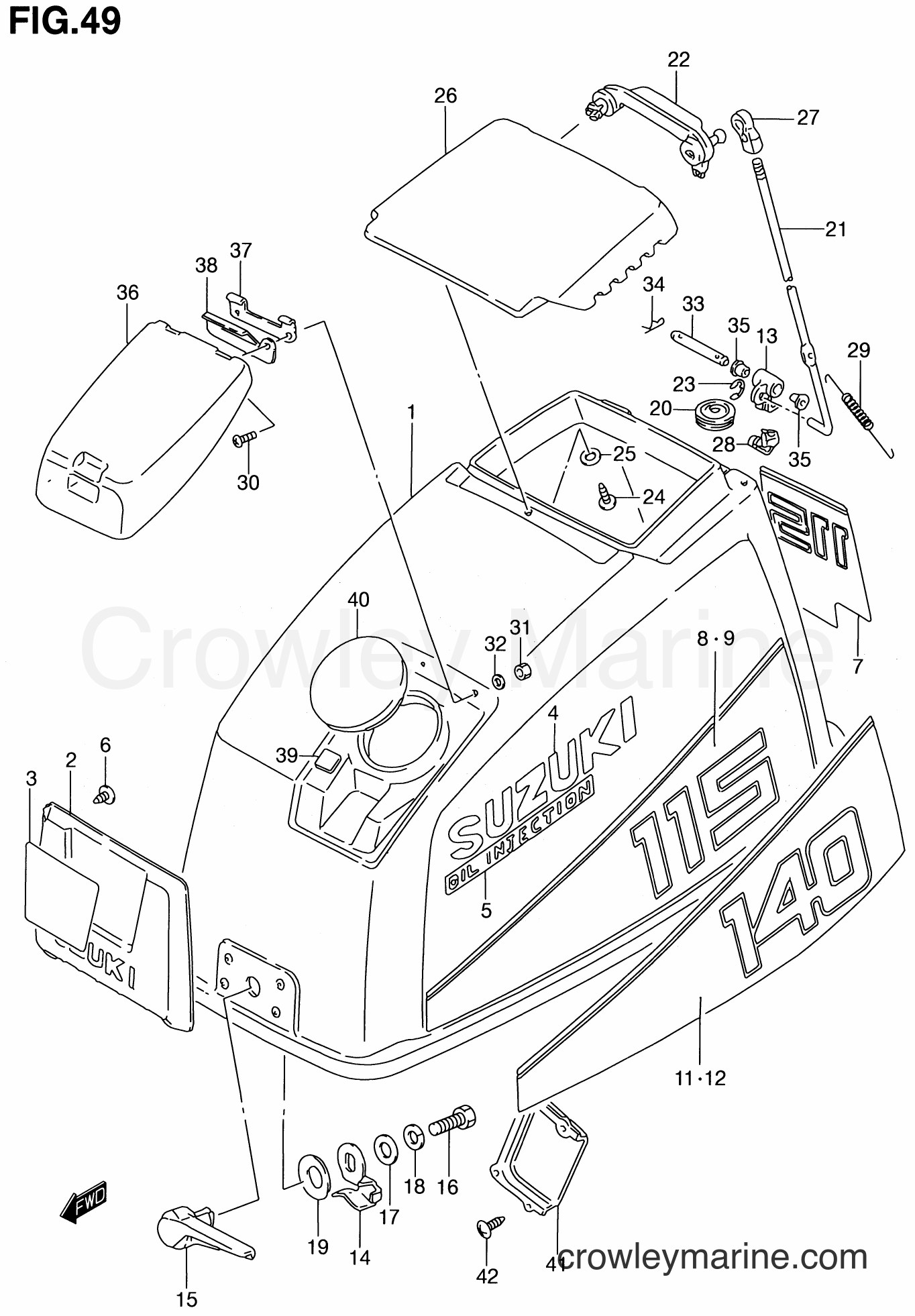

1986 Two-Stroke Outboard 115 - DT115 ENGINE COVER (MODEL:88) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1986 Two-Stroke Outboard 115 - DT115 - ENGINE COVER (MODEL:88) 1986 Two-Stroke Outboard 115 - DT115 - ENGINE COVER (MODEL:88)
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
Obsolete Suzuki Part
61421-94601-2CS ← 61421-94601-2CS

EMBLEM, FRONT

Notes:FOR 02M
$39.95
$40.49
No longer available
3
Obsolete Suzuki Part
61422-94600-26N ← 61422-94600-26N

MARK, UPPER

$8.05
No longer available
4
EMBLEM,COWLING
68181-17D00-019 ← 68181-17D00-019

EMBLEM, SIDE

$24.95
You save $1.04. $25.99
Cross Ship
6
Screw (M8 X 40)
03241-0516A

SCREW

$1.09
You save 5%. $1.15
Cross Ship
6
Screw (M8 X 40)
03241-0510A

SCREW

$1.12
You save 5%. $1.18
Cross Ship
7
Obsolete Suzuki Part
61435-94600-70G ← 61435-94600-70G

EMBLEM, REAR

Notes:DT115 FOR 02M
$11.34
No longer available
7
Obsolete Suzuki Part
61435-94600-8EH ← 61435-94600-8EH

EMBLEM, REAR

Notes:DT115 FOR 01T
$11.34
No longer available
9
DECAL,ENGINE CO
61453-94620-70G ← 61453-94620-70G

DECAL, ENGINE COVER PORT

Notes:DT115 FOR 02M
$54.95
You save $1.69. $56.64
No longer available
14
Obsolete Suzuki Part
61641-94600 ← 61641-94600

HOOK, FRONT

$8.47
No longer available
23
E RING
09383-03001 ← 09383-03001

E RING

$0.79
Cross Ship
28
PIN
09209-05017 ← 09209-05017

PIN, LINKAGE

$1.38
You save 5%. $1.45
Cross Ship
29
Obsolete Suzuki Part
09443-06040 ← 09443-06040

SPRING

$2.07
No longer available
33
Obsolete Suzuki Part
61642-95500 ← 61642-95500

PIN

$5.21
No longer available
34
PIN,ENG COVER H
09385-06003 ← 09385-06003

PIN

$1.21
No longer available
36
LID,OIL TANK FI
61481-94504-0ED ← 61481-94504-0ED

LID, OIL TANK FILLER

$49.95
You save $1.81. $51.76
No longer available
38
SPRING,FILLER L
61485-94500 ← 61485-94500

SPRING

$4.53
Cross Ship
39
PAD OIL FILLER
61544-94500 ← 61544-94500

PAD

$1.62
You save 5%. $1.70
Cross Ship
42
Screw (M8 X 40)
03241-0516A

SCREW

$1.09
You save 5%. $1.15
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
