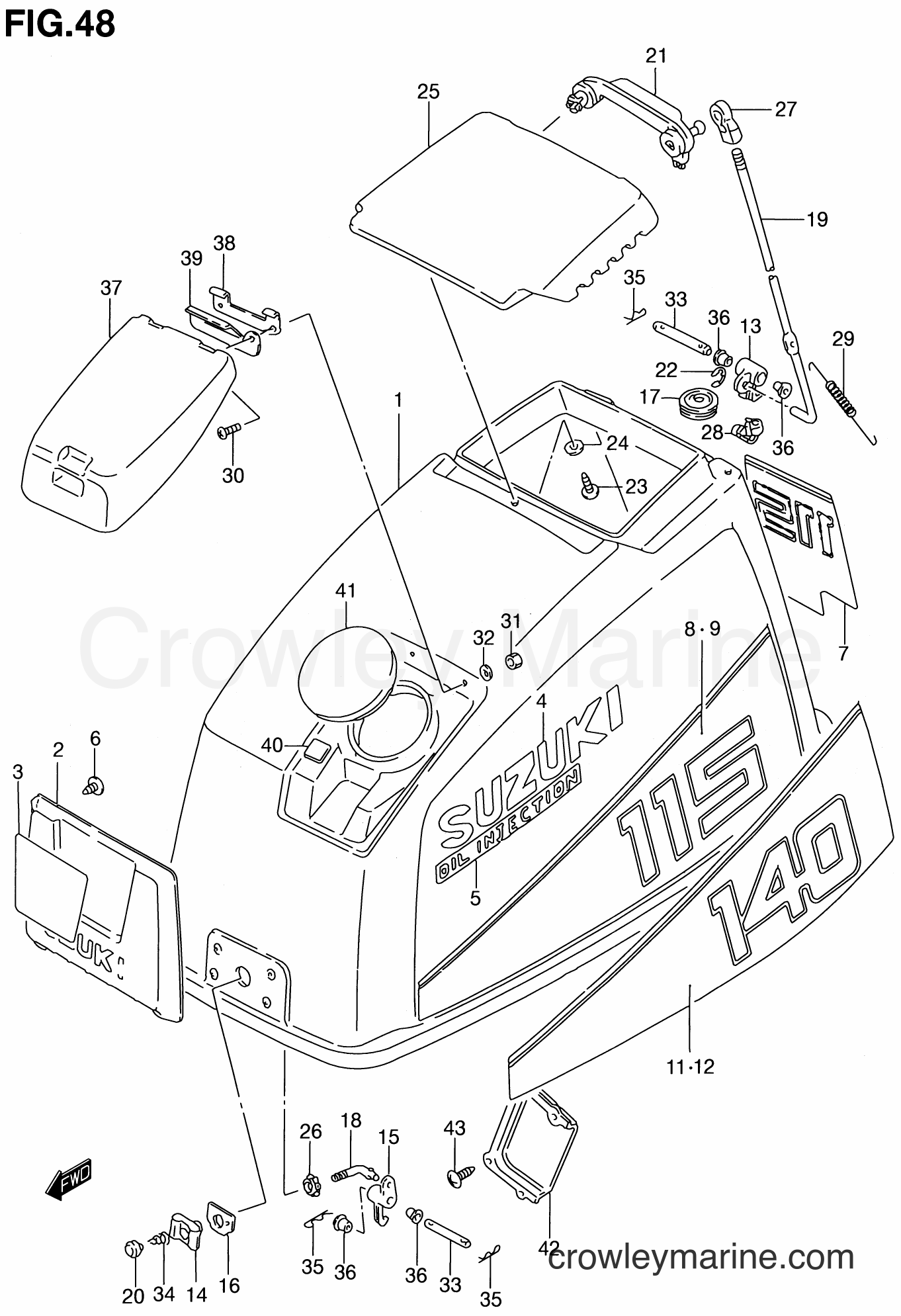

1986 Two-Stroke Outboard 115 - DT115 ENGINE COVER (MODEL:86,87) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1986 Two-Stroke Outboard 115 - DT115 - ENGINE COVER (MODEL:86,87) 1986 Two-Stroke Outboard 115 - DT115 - ENGINE COVER (MODEL:86,87)
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
Obsolete Suzuki Part
61410-94682-0ED

COVER SET, ENGINE

Notes:DT115 ->61420-94682-0ED
$1,183.26
No longer available
1
Obsolete Suzuki Part
61410-94682-0ED

COVER SET, ENGINE

Notes:DT140 ->61420-94682-0ED
$1,183.26
No longer available
2
Obsolete Suzuki Part
61421-94601-2CS ← 61421-94601-2CS

.EMBLEM, FRONT

Notes:FOR 02M
$39.95
$40.49
No longer available
3
Obsolete Suzuki Part
61422-94600-26N ← 61422-94600-26N

.MARK, UPPER

Notes:FOR 02M
$8.05
No longer available
4
EMBLEM,COWLING
68181-17D00-019 ← 68181-17D00-019

.EMBLEM, SIDE

$24.95
You save $1.04. $25.99
Cross Ship
6
Screw (M8 X 40)
03241-0516A

.SCREW

$1.09
You save 5%. $1.15
Cross Ship
6
Screw (M8 X 40)
03241-0510A

.SCREW

$1.12
You save 5%. $1.18
Cross Ship
7
Obsolete Suzuki Part
61435-94600-70G ← 61435-94600-70G

.EMBLEM, REAR

Notes:FOR 02M
$11.34
No longer available
7
Obsolete Suzuki Part
61435-94600-8EH ← 61435-94600-8EH

.EMBLEM, REAR

Notes:FOR 01T
$11.34
No longer available
9
DECAL,ENGINE CO
61453-94620-70G ← 61453-94620-70G

.DECAL, ENGINE COVER PORT

Notes:DT115 FOR 02M
$54.95
You save $1.69. $56.64
No longer available
20
Obsolete Suzuki Part
61660-95500 ← 61660-95500

.KNOB, HOOK

$3.11
No longer available
22
E RING
09383-03001 ← 09383-03001

.E RING

$0.79
Cross Ship
26
Obsolete Suzuki Part
61654-95500 ← 61654-95500

.NUT

$1.94
No longer available
28
PIN
09209-05017 ← 09209-05017

.PIN, LINKAGE

$1.38
You save 5%. $1.45
Cross Ship
29
Obsolete Suzuki Part
09443-06040 ← 09443-06040

.SPRING

$2.07
No longer available
33
Obsolete Suzuki Part
61642-95500 ← 61642-95500

.PIN

$5.21
No longer available
34
SPRING (SUS)
09441-12001 ← 09441-12001

.SPRING

$2.83
You save 5%. $2.98
Cross Ship
35
PIN,ENG COVER H
09385-06003 ← 09385-06003

.PIN

$1.21
No longer available
36
Obsolete Suzuki Part
09301-06005 ← 09301-06005

.BUSHING

$0.98
No longer available
39
SPRING,FILLER L
61485-94500 ← 61485-94500

.SPRING

$4.53
Cross Ship
40
PAD OIL FILLER
61544-94500 ← 61544-94500

.PAD

$1.62
You save 5%. $1.70
Cross Ship
43
Screw (M8 X 40)
03241-0516A

.SCREW

$1.09
You save 5%. $1.15
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
