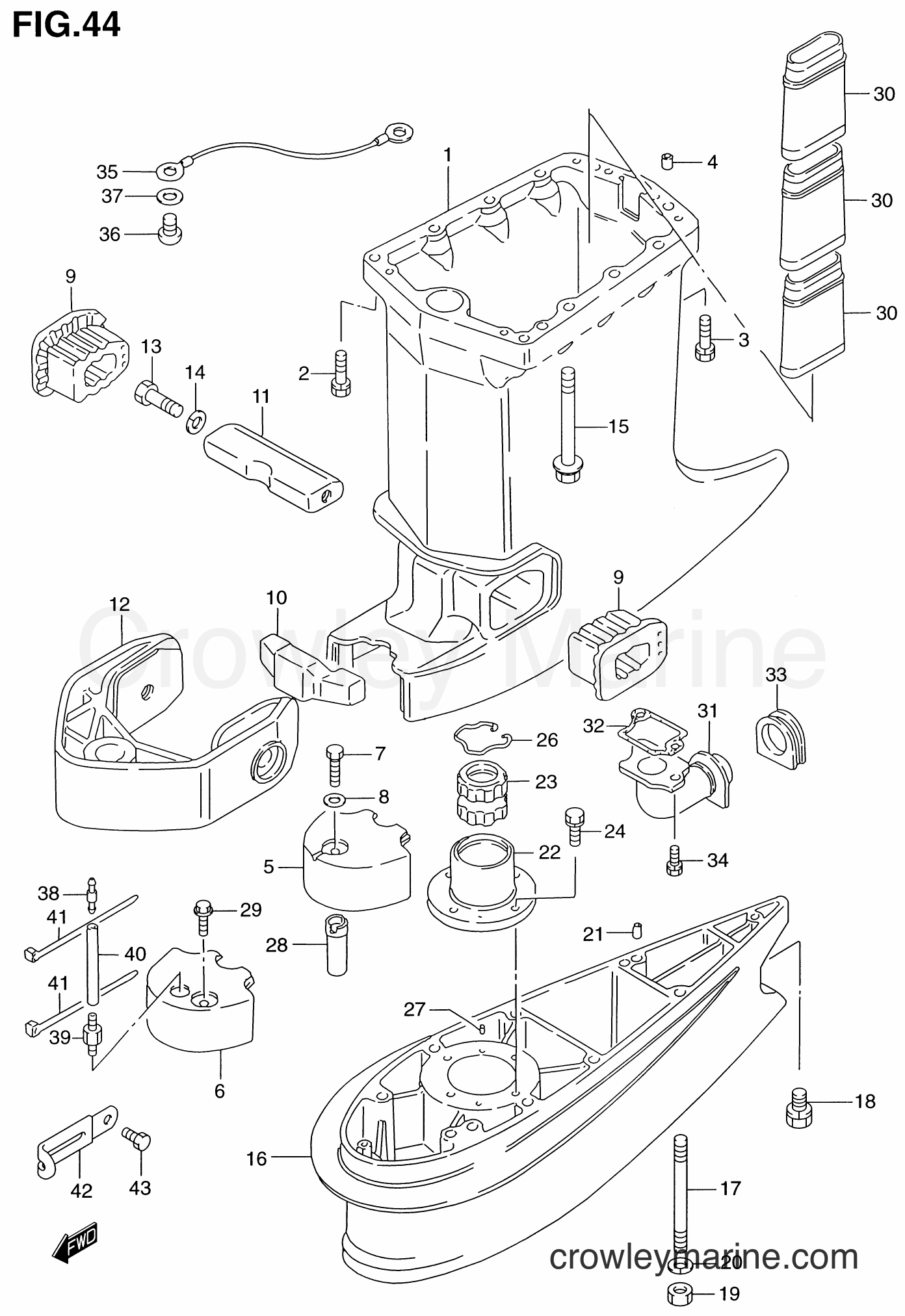

1986 Two-Stroke Outboard 115 - DT115 DRIVESHAFT HOUSING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1986 Two-Stroke Outboard 115 - DT115 - DRIVESHAFT HOUSING 1986 Two-Stroke Outboard 115 - DT115 - DRIVESHAFT HOUSING
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
BOLT,8X40
09117-08056-XC0

BOLT (8X40)

$7.10
You save 5%. $7.47
Cross Ship
4
PIN, 11X12
09206-11016 ← 09206-11016

PIN (11X12)

$3.33
No longer available
7
BOLT
01550-06657

BOLT (6X65)

Notes:DT115:~709842
$3.23
You save 5%. $3.40
Cross Ship
9
Obsolete Suzuki Part
54161-94503 ← 54161-94503

MOUNTING, LOWER

Notes:DT115/140/140EFI
$12.53
No longer available
9
Obsolete Suzuki Part
54161-94510 ← 54161-94510

MOUNTING, LOWER

Notes:DT115S
$12.53
No longer available
9
Obsolete Suzuki Part
54161-94510 ← 54161-94510

MOUNTING, LOWER

Notes:OPT:HARD TYPE
$12.53
No longer available
13
Obsolete Suzuki Part
09104-14002 ← 09104-14002

BOLT (14X55)

$6.13
No longer available
19
Nut
09140-10031 ← 09140-10031

NUT

$1.83
You save 5%. $1.93
Cross Ship
26
SET RING (SUS)
09387-45001 ← 09387-45001

RING

$2.57
You save 5%. $2.71
Cross Ship
27
PIN
04221-05109 ← 04221-05109

PIN

$1.33
You save 5%. $1.40
Cross Ship
28
Obsolete Suzuki Part
52122-94500 ← 52122-94500

SPACER, COVER

Notes:DT115:~709842
$2.41
No longer available
29
BOLT L=60(SUS)
09103-06118 ← 09103-06118

BOLT (6X60)

Notes:DT115:709843~
$2.41
No longer available
34
Obsolete Suzuki Part
09117-06038 ← 09117-06038

BOLT (6X16)

$1.51
No longer available
35
LEAD,CLAMP TO S
36894-95201 ← 36894-95201

LEAD (L:165)

$11.12
You save 5%. $11.71
Cross Ship
36
SCREW 5X8
09125-05050 ← 09125-05050

SCREW (5X8)

$1.73
You save 5%. $1.82
Cross Ship
39
Nipple
09362-09008 ← 09362-09008

NIPPLE

Notes:DT115:709843~
$2.69
You save 5%. $2.83
Cross Ship
40
Hose
09355-40805-600 ← 09355-40805-600

HOSE (L) (4X8X600)

Notes:L:600->70
$8.82
You save 5%. $9.28
Cross Ship
40
Hose
09355-40805-600 ← 09355-40805-600

HOSE (X) (4X8X600)

Notes:L:600->210
$8.82
You save 5%. $9.28
Cross Ship
40
Hose
09355-40805-00B ← 09355-40805-00B

HOSE (L,X) (4X8X2000)

Notes:L:2000->900
$26.30
You save $1.38. $27.68
Cross Ship
42
CLAMP(L:65)
09404-06039

CLAMP

$1.57
You save 5%. $1.65
Cross Ship
Notes:DT140:~709964 DT140:709965~ DT140:~709964 DT140:~709964 DT140:709965~ DT140:709965~ DT140:709965~ DT115:709843~ DT140:709965~ DT115:709843~ DT140:709965~ MODEL:96~01 DT140:709965~
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
