1986 Two-Stroke Outboard 115 - DT115 CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

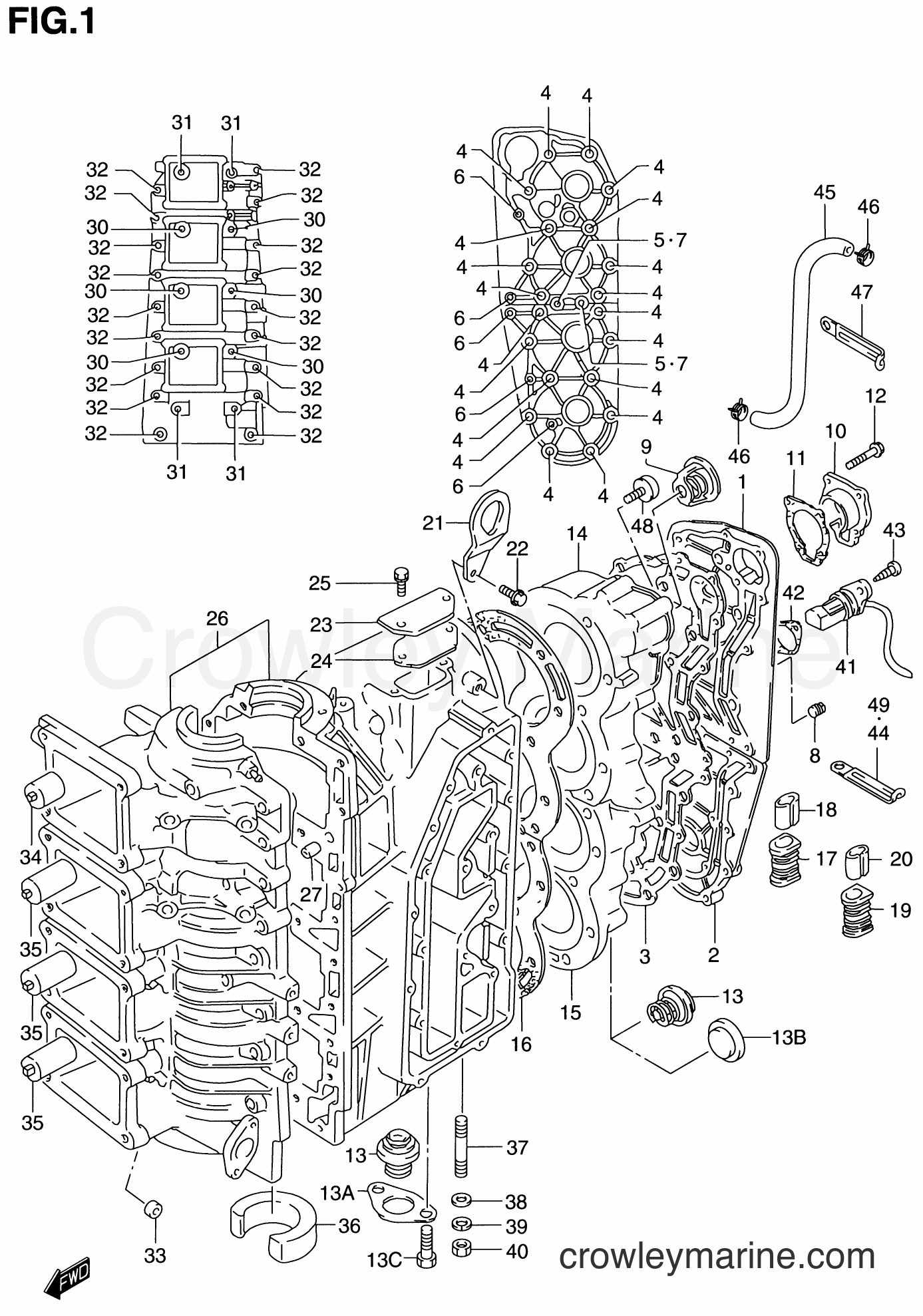

1986 Two-Stroke Outboard 115 - DT115 - CRANKCASE 1986 Two-Stroke Outboard 115 - DT115 - CRANKCASE
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

11
GASKET,THERMO C
17685-94610 ← 17685-94610

GASKET

$6.16
You save 5%. $6.48
Ships immediately
1 in stock
14
Notes:DT140:~131262
Cross Ship
14
Notes:DT140 EFI
Cross Ship
14
Obsolete Suzuki Part
11111-94620-0ED ← 11111-94620-0ED

CYLINDER HEAD, UPPER

Notes:DT140:131263~
$199.95
You save $1.79. $201.74
No longer available
15
Obsolete Suzuki Part
11121-94610-0ED ← 11121-94610-0ED

CYLINDER HEAD, LOWER

Notes:DT115/140
$199.95
$200.39
No longer available
15
Notes:DT140:~131262
Cross Ship
15
Notes:DT140 EFI
Cross Ship
15
Obsolete Suzuki Part
11121-94900-0ED ← 11121-94900-0ED

CYLINDER HEAD, LOWER

Notes:DT115S
$204.95
$205.89
No longer available
21
Obsolete Suzuki Part
11291-94600 ← 11291-94600

HOOK, ENGINE REAR

Notes:DT115S/140EFI
$5.27
No longer available
25
BOLT
01570-06207 ← 01570-06207

BOLT

$2.43
You save 5%. $2.56
Cross Ship
26
Notes:~MODEL:96 ->11301-94640-0ED USED WITH 17666-94600 17665-94600,09128-06021
Cross Ship
26
Obsolete Suzuki Part
11301-94640-0ED ← 11301-94640-0ED

CYLINDER/CRANKCASE ASSY

Notes:DT115, MODEL:97
$1,690.00
You save $32.88. $1,722.88
No longer available
26
Notes:~MODEL:96 ->11301-94910-0ED USED WITH 17666-94600 17665-94600,09128-06021
Cross Ship
26
Notes:DT140 EFI
Cross Ship
26
Obsolete Suzuki Part
11301-94920-0ED ← 11301-94920-0ED

CYLINDER/CRANKCASE ASSY

Notes:DT115S/140 EFI
$1,890.00
You save $23.47. $1,913.47
No longer available
26
Notes:MODEL:98~01
Cross Ship
27
11 X 12 DOWEL P
04211-11129 ← 04211-11129

.PIN (11.0X8.4X12)

$0.99
You save 41%. $1.68
Ships immediately
5+ in stock
30
BOLT
01560-10557 ← 01560-10557

.BOLT

$3.67
You save 5%. $3.86
Cross Ship
31
Obsolete Suzuki Part
01560-10757 ← 01560-10757

.BOLT

$3.28
No longer available
32
BOLT 8 X 40
01550-08407 ← 01550-08407

.BOLT

$3.13
You save 5%. $3.29
Cross Ship
37
Obsolete Suzuki Part
09108-10026 ← 09108-10026

STUD BOLT

$2.11
No longer available
38
WASHER
08322-01107 ← 08322-01107

WASHER

$0.99
You save 43%. $1.75
Ships immediately
3 in stock
40
Nut
09140-10031 ← 09140-10031

NUT

$1.83
You save 5%. $1.93
Cross Ship
41
Notes:DT140:~011168 ->34870-94630 USED WITH 03212-05163(4)
Cross Ship
41
Notes:DT140:011169~
Cross Ship
43
Screw (M8 X 40)
03212-0512B

SCREW (5X12)

Notes:DT115:~011278 DT140:~011168
$2.34
You save 5%. $2.46
Cross Ship
43
Screw (M8 X 40)
13765-48GV0

SCREW

Notes:DT115:011279~ DT140:011169~
$2.09
You save 5%. $2.20
Cross Ship
44
CLAMP(L:62)
09404-10206

CLAMP

$1.81
You save 5%. $1.91
Cross Ship
46
Clip
09401-08411 ← 09401-08411

CLIP (ID:8.6)

$1.60
You save 5%. $1.68
Cross Ship
48
ZINC, ANODE
11130-94600 ← 11130-94600

ZINC, CYLINDER

$8.31
You save 5%. $8.75
Cross Ship
49
CLAMP(L:65)
09404-06039

CLAMP

Notes:FOR 34870-94630
$1.57
You save 5%. $1.65
Cross Ship
Notes:34820-94610
Cross Ship
