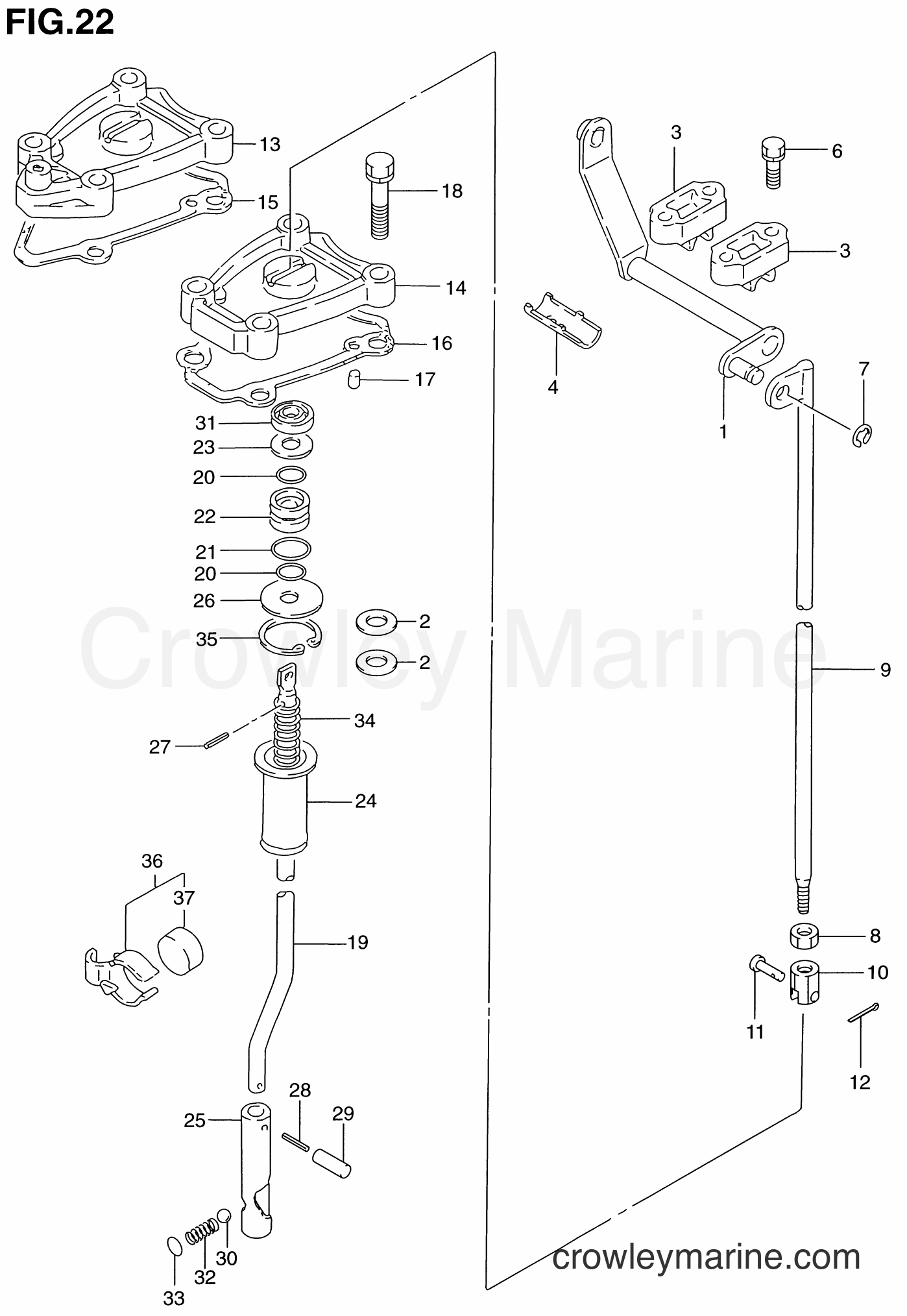

1986 Two-Stroke Outboard 115 - DT115 CLUTCH diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1986 Two-Stroke Outboard 115 - DT115 - CLUTCH 1986 Two-Stroke Outboard 115 - DT115 - CLUTCH
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
WASHER
09160-08090

WASHER

Notes:DT115S 971072~ DT140EFI(L) 971110~ DT140EFI(X) 971202~
$2.15
You save 5%. $2.26
Cross Ship
4
BUSH CLUTCH SHA
21312-94500 ← 21312-94500

BUSH

$8.12
No longer available
7
E RING
09383-08004 ← 09383-08004

E RING

$0.87
Cross Ship
8
NUT 8MM
09140-08019 ← 09140-08019

NUT (M8)

Notes:TYPE:X
$1.84
You save 5%. $1.94
Cross Ship
8
Nut
09140-08023-XC0

NUT (M8)

Notes:TYPE:X
$2.33
You save 5%. $2.45
Cross Ship
8
Nut
09140-08023-XC0

NUT

Notes:TYPE:X
$2.33
You save 5%. $2.45
Cross Ship
14
HOUSING,SHIFT R
25141-94510 ← 25141-94510

HOUSING, SHIFT ROD GUIDE

Notes:DT115:709843~ DT140:709965~
$33.34
You save $1.75. $35.09
Cross Ship
17
PIN
04221-05109 ← 04221-05109

PIN

$1.33
You save 5%. $1.40
Cross Ship
19
Obsolete Suzuki Part
25111-94503 ← 25111-94503

ROD, SHIFT (L)

Notes:DT115S 971072~
$24.47
No longer available
19
Obsolete Suzuki Part
25111-94511

ROD, SHIFT (X)

Notes:->25111-94511
$24.96
$25.96
No longer available
19
Obsolete Suzuki Part
25111-94511 ← 25111-94511

ROD, SHIFT (X)

Notes:DT115S 971072~
$24.96
$25.96
No longer available
22
GUIDE, SHIFT RO
25211-94501 ← 25211-94501

GUIDE, SHIFT ROD

$8.99
You save 19%. $11.11
Ships immediately
1 in stock
25
CAM CLUTCH
25311-94510 ← 25311-94510

CAM, CLUTCH

$44.95
You save $2.61. $47.56
Cross Ship
26
WASHER
09160-09010 ← 09160-09010

WASHER (9X30X1.6)

$0.99
You save 43%. $1.74
Ships immediately
1 in stock
27
PIN
09205-02004 ← 09205-02004

PIN (L:12)

$0.88
Cross Ship
29
Spring Pin
09205-03021 ← 09205-03021

SPRING PIN

$0.98
You save 5%. $1.03
Cross Ship
34
Spring
09440-12025 ← 09440-12025

SPRING, SHIFT ROD

$0.99
You save 45%. $1.79
Ships immediately
1 in stock
37
MAGNET,GEAR CAS
25232-94300 ← 25232-94300

.MAGNET

$2.98
You save 5%. $3.14
Cross Ship
Notes:~MODEL:94 MODEL:95~00 MODEL:01 DT140:~709964 USED WITH 09160-08119(2) DT140EFI 971110~ USED WITH 09160-08119(2) DT140EFI 971202~
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
