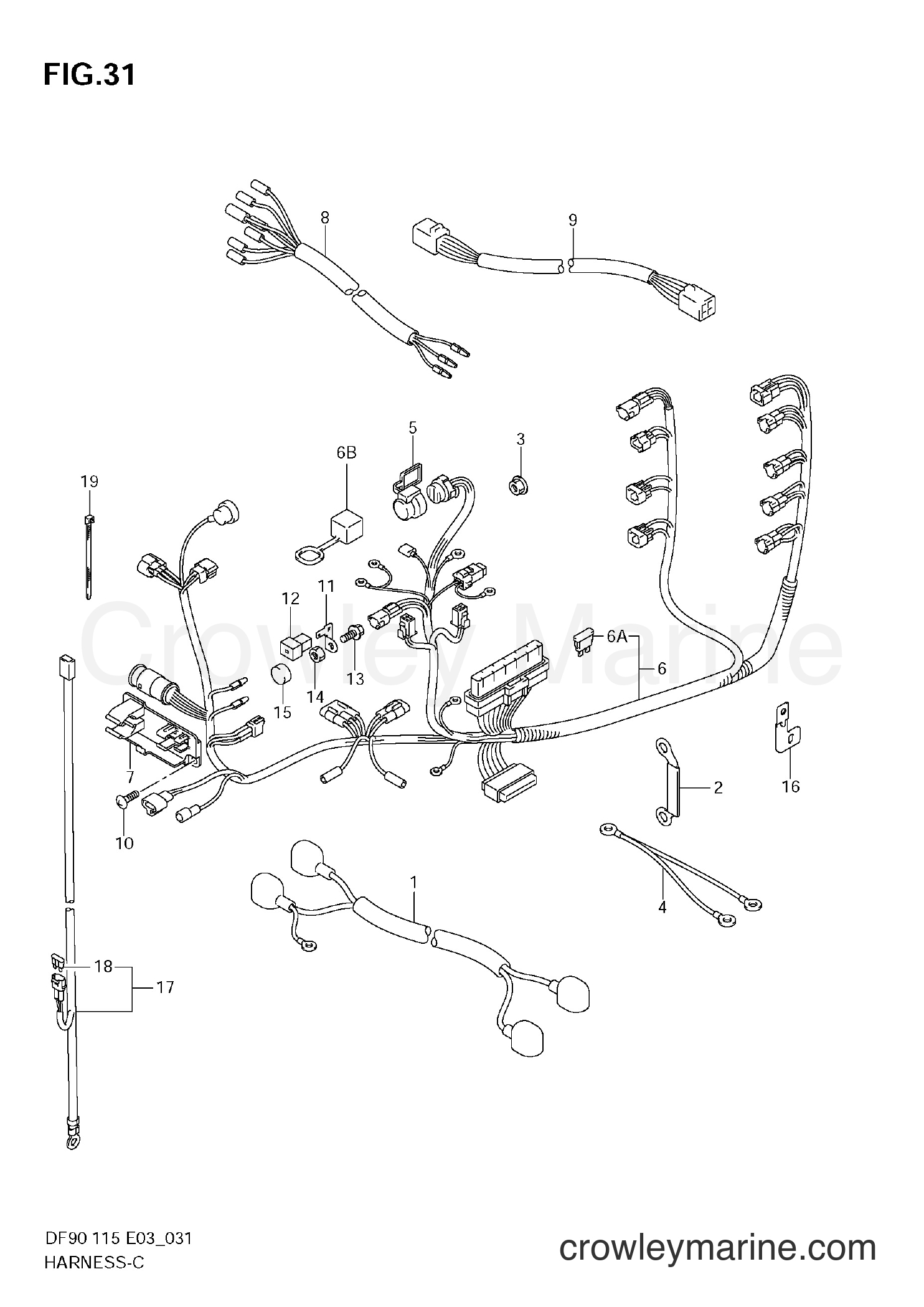

2002 Four-Stroke Outboard 115 - DF115 HARNESS diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2002 Four-Stroke Outboard 115 - DF115 - HARNESS 2002 Four-Stroke Outboard 115 - DF115 - HARNESS
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
Nut
08316-10087 ← 08316-10087

NUT

$2.02
You save 5%. $2.13
Cross Ship
6
FUSE,30A
09481-30501 ← 09481-30501

.FUSE (30A)

$2.09
You save 5%. $2.20
Cross Ship
6
HARNESS ASSY,WI
36610-90J20 ← 36610-90J20

HARNESS ASSY, WIRING

Notes:MODEL:03
$620.00
You save $33.12. $653.12
Cross Ship
6
HARNESS ASSY,WI
Notes:MODEL:05~07 ->36610-90J60
$448.49
You save $23.60. $472.09
Cross Ship
6
HARNESS ASSY,WI
Notes:MODEL:08~09 ->36610-90J91
$508.00
You save $26.89. $534.89
Cross Ship
8
WIRE ASSY,INSTR
36630-92E00 ← 36630-92E00

WIRE, INSTRUMENT

Notes:MODEL:01~04
$62.43
You save $3.29. $65.72
Cross Ship
10
6 X 16 CROSS SC
02142-06167 ← 02142-06167

SCREW

$1.23
You save 5%. $1.29
Cross Ship
13
BOLT
01570-06107 ← 01570-06107

BOLT

$2.31
You save 5%. $2.43
Cross Ship
14
Nut
08310-00067 ← 08310-00067

NUT

$0.99
You save 43%. $1.75
Ships immediately
5+ in stock
15
CAP(OD:13.6)
09251-09008

CAP

$3.18
You save 5%. $3.35
Cross Ship
17
LEAD,BATTERY
36625-93J01

LEAD, BATTERY

Notes:L:3700 MODEL:05~
$42.39
You save $2.23. $44.62
Cross Ship
17
15A-BATT-ECM-LE
36625-93J10 ← 36625-93J10

LEAD, BATTERY

Notes:OPT L:6500 MODEL:05~
$41.15
You save $2.17. $43.32
Cross Ship
18
Fuse (12V/10A)
09481-15501 ← 09481-15501

.FUSE (15A)

$1.83
You save 5%. $1.93
Cross Ship
19
Clamp
09407-14407 ← 09407-14407

CLAMP, BATTERY LEAD

Notes:MODEL:05~
$1.99
You save 32%. $2.92
Ships immediately
4 in stock

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
