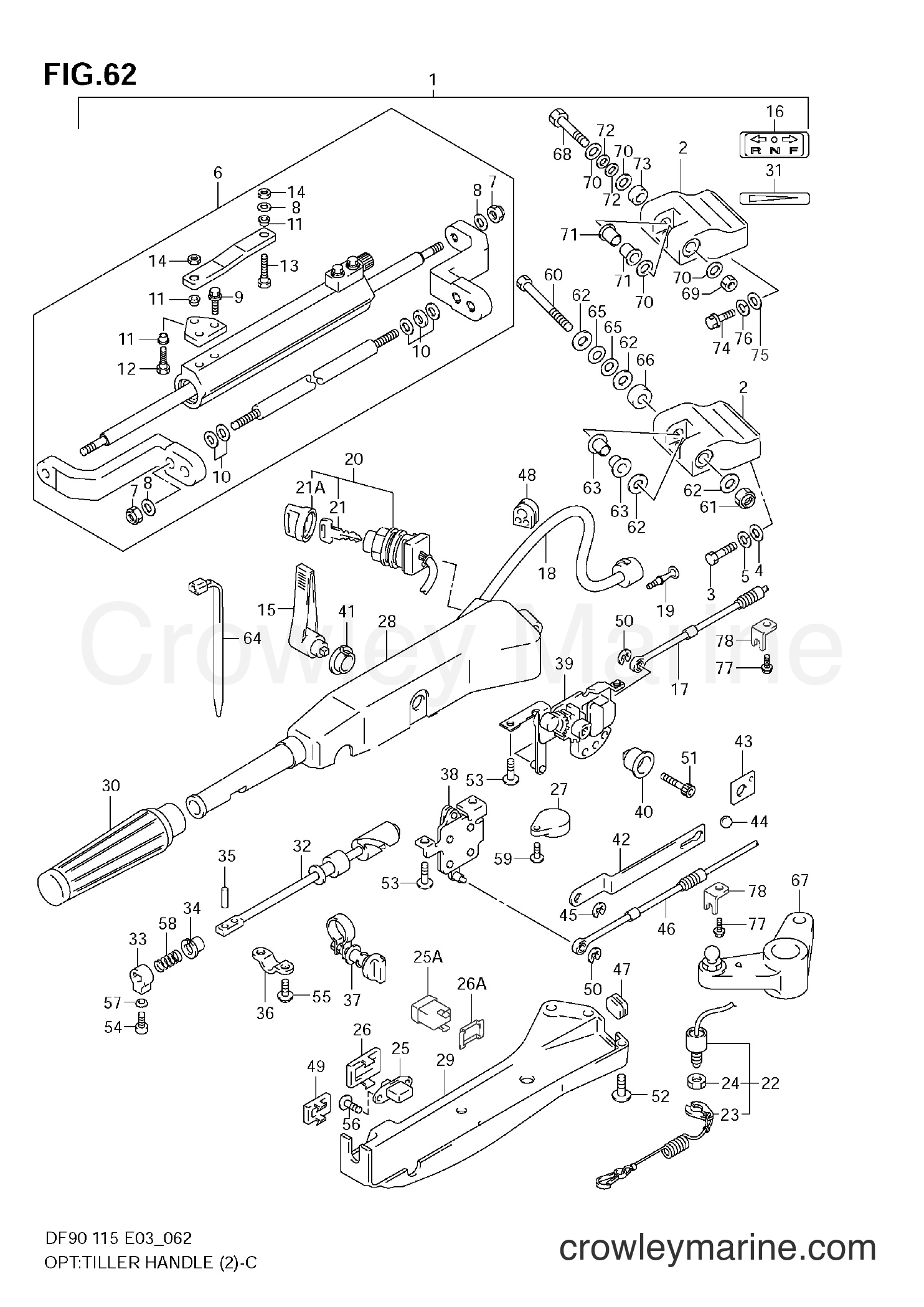

2002 Four-Stroke Outboard 115 - DF115 OPT:TILLER HANDLE (MODEL:04~) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2002 Four-Stroke Outboard 115 - DF115 - OPT:TILLER HANDLE (MODEL:04~) 2002 Four-Stroke Outboard 115 - DF115 - OPT:TILLER HANDLE (MODEL:04~)
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
BOLT
43769-90J00 ← 43769-90J00

.BOLT, TILLER HANDLE

Notes:FOR 63002-90J03-0EP 63002-90J21-0EP
$12.15
You save 5%. $12.79
Cross Ship
4
WASHER
09160-12066 ← 09160-12066

.WASHER

Notes:FOR 63002-90J03-0EP 63002-90J21-0EP
$1.67
You save 5%. $1.76
Cross Ship
5
WASHER
29162-93J20 ← 29162-93J20

.WASHER, LOCK

Notes:FOR 63002-90J03-0EP 63002-90J21-0EP
$1.78
You save 5%. $1.87
Cross Ship
16
MARK,CLUTCH SHI
21131-96010 ← 21131-96010

.MARK, SHIFT

$1.43
You save 5%. $1.50
Cross Ship
17
CABLE,SHIFT
23230-90J00 ← 23230-90J00

.CABLE, SHIFT

$93.51
You save $4.92. $98.43
Cross Ship
19
Terminal (Block)
36615-96300 ← 36615-96300

..TERMINAL

$1.20
You save 5%. $1.26
Cross Ship
24
Nut
37826-92E00 ← 37826-92E00

..NUT

$5.59
Cross Ship
25
SWITCH,TRIM
37860-94610 ← 37860-94610

.SWITCH ASSY, TRIM

Notes:FOR 63002-90J03-0EP FOR 63002-90J21-0EP FOR 63002-90J23-0EP FOR 63002-90J24-0EP FOR 63002-90J25-0EP
$92.30
You save $4.86. $97.16
Cross Ship
25
SWITCH ASSY, TR
37850-87J00 ← 37850-87J00

.SWITCH ASSY, TRIM

Notes:FOR 63002-90J26-0EP
$64.95
You save $2.90. $67.85
Cross Ship
26
CAP,TRIM SW
37869-95590 ← 37869-95590

.CAP

Notes:FOR 63002-90J03-0EP FOR 63002-90J21-0EP FOR 63002-90J23-0EP FOR 63002-90J24-0EP FOR 63002-90J25-0EP
$8.32
You save 5%. $8.76
Cross Ship
26
PLATE, TRIM SWI
37852-87J00 ← 37852-87J00

.PLATE, TRIM SWITCH

Notes:FOR 63002-90J26-0EP
$14.98
You save 11%. $16.82
Cross Ship
27
BUZZER SET,WARN
38500-92X51

.BUZZER

$74.95
You save $3.84. $78.79
Cross Ship
28
SET,TILLER HAND
Notes:->63111-87J10-0EP USED WITH 63611-87J00 X2 63612-87J00 X2
$263.88
You save $13.89. $277.77
Cross Ship
29
COVER,UNDER
63120-87J01

.COVER, UNDER

Notes:->63120-87J00 COVER KIT,UNDER FOR 63002-90J03-0EP FOR 63002-90J21-0EP FOR 63002-90J23-0EP FOR 63002-90J24-0EP FOR 63002-90J25-0EP
$53.17
You save $2.80. $55.97
Cross Ship
29
COVER,UNDER
63121-87J04

.COVER, UNDER

Notes:FOR 63002-90J26-0EP
$44.98
You save $2.37. $47.35
Cross Ship
32
ROD,HANDLE
63221-87J00 ← 63221-87J00

.SHAFT, THROTTLE

$47.18
You save $2.48. $49.66
Cross Ship
42
Obsolete Suzuki Part
63271-87J00 ← 63271-87J00

.PLATE, LOCK

$16.91
You save 5%. $17.80
Cross Ship
46
Throttle Cable
63610-90J00 ← 63610-90J00

.CABLE, THROTTLE

$52.57
You save $2.77. $55.34
Cross Ship
50
E-Ring
67292-87J00 ← 67292-87J00

.E RING

$2.58
You save 5%. $2.72
Cross Ship
52
Screw (M8 X 40)
09125-05047 ← 09125-05047

.SCREW (5X14)

$1.80
You save 5%. $1.89
Cross Ship
53
SCREW 6X12 (SUS
09125-06069 ← 09125-06069

.SCREW (6X12)

$1.92
You save 5%. $2.02
Cross Ship
54
SCREW,M6X23
09126-06015 ← 09126-06015

.SCREW (6X23)

$2.34
You save 5%. $2.46
Cross Ship
55
Screw (M8 X 40)
09136-05008 ← 09136-05008

.SCREW (5X12)

$2.38
You save 5%. $2.50
Cross Ship
56
Screw (M8 X 40)
09139-02003 ← 09139-02003

.SCREW (2X6)

$1.27
You save 5%. $1.34
Cross Ship
58
SPRING,HANDLE L
09440-12027 ← 09440-12027

.SPRING

$1.27
You save 5%. $1.34
Cross Ship
59
Screw (M8 X 40)
02142-05207 ← 02142-05207

.SCREW

$0.99
You save 26%. $1.34
Ships immediately
4 in stock
60
BOLT
09100-10264 ← 09100-10264

.BOLT (10X80)

Notes:FOR 63002-90J03-0EP 63002-90J21-0EP
$7.41
You save 5%. $7.80
Cross Ship
61
Nut
09159-10050 ← 09159-10050

.NUT

Notes:FOR 63002-90J03-0EP 63002-90J21-0EP
$2.38
You save 5%. $2.50
Cross Ship
62
WASHER,CLUTCH L
09160-10114 ← 09160-10114

.WASHER (10.5X22X1.5)

Notes:FOR 63002-90J03-0EP 63002-90J21-0EP
$1.92
You save 5%. $2.02
Cross Ship
63
BUSH
09306-10020 ← 09306-10020

.BUSH

Notes:FOR 63002-90J03-0EP 63002-90J21-0EP
$2.34
You save 5%. $2.46
Cross Ship
65
WASHER
09164-10013 ← 09164-10013

.WASHER, WAVE

Notes:FOR 63002-90J03-0EP 63002-90J21-0EP
$3.78
You save 5%. $3.98
Cross Ship
66
SPACER,TILLER H
43768-90J01

.SPACER

Notes:FOR 63002-90J03-0EP 63002-90J21-0EP
$43.30
You save $2.28. $45.58
Cross Ship
69
Nut
09159-10050 ← 09159-10050

.NUT, TILLER HANDLE PIVOT

Notes:FOR 63002-90J23-0EP 63002-90J24-0EP
$2.38
You save 5%. $2.50
Cross Ship
73
SPACER,TILLER H
43768-90J01 ← 43768-90J01

.SPACER, TILLER HANDLE

Notes:FOR 63002-90J23-0EP 63002-90J24-0EP
$43.30
You save $2.28. $45.58
Cross Ship
74
BOLT
43769-90J00 ← 43769-90J00

.BOLT, TILLER HANDLE

Notes:FOR 63002-90J23-0EP 63002-90J24-0EP
$12.15
You save 5%. $12.79
Cross Ship
75
WASHER
09160-12066 ← 09160-12066

.WASHER

Notes:FOR 63002-90J23-0EP 63002-90J24-0EP
$1.67
You save 5%. $1.76
Cross Ship
76
WASHER
29162-93J20 ← 29162-93J20

.WASHER LOCK

Notes:FOR 63002-90J23-0EP 63002-90J24-0EP
$1.78
You save 5%. $1.87
Cross Ship
77
BOLT,CLAMP BRAC
63611-87J00 ← 63611-87J00

.BOLT, CLAMP BRACKET

Notes:FOR 63002-90J23-0EP 63002-90J24-0EP
$6.42
You save 5%. $6.76
Cross Ship
78
Clamp Bracket
63612-87J00 ← 63612-87J00

.BRACKET, CLAMP

Notes:FOR 63002-90J23-0EP 63002-90J24-0EP
$31.97
You save $1.68. $33.65
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
