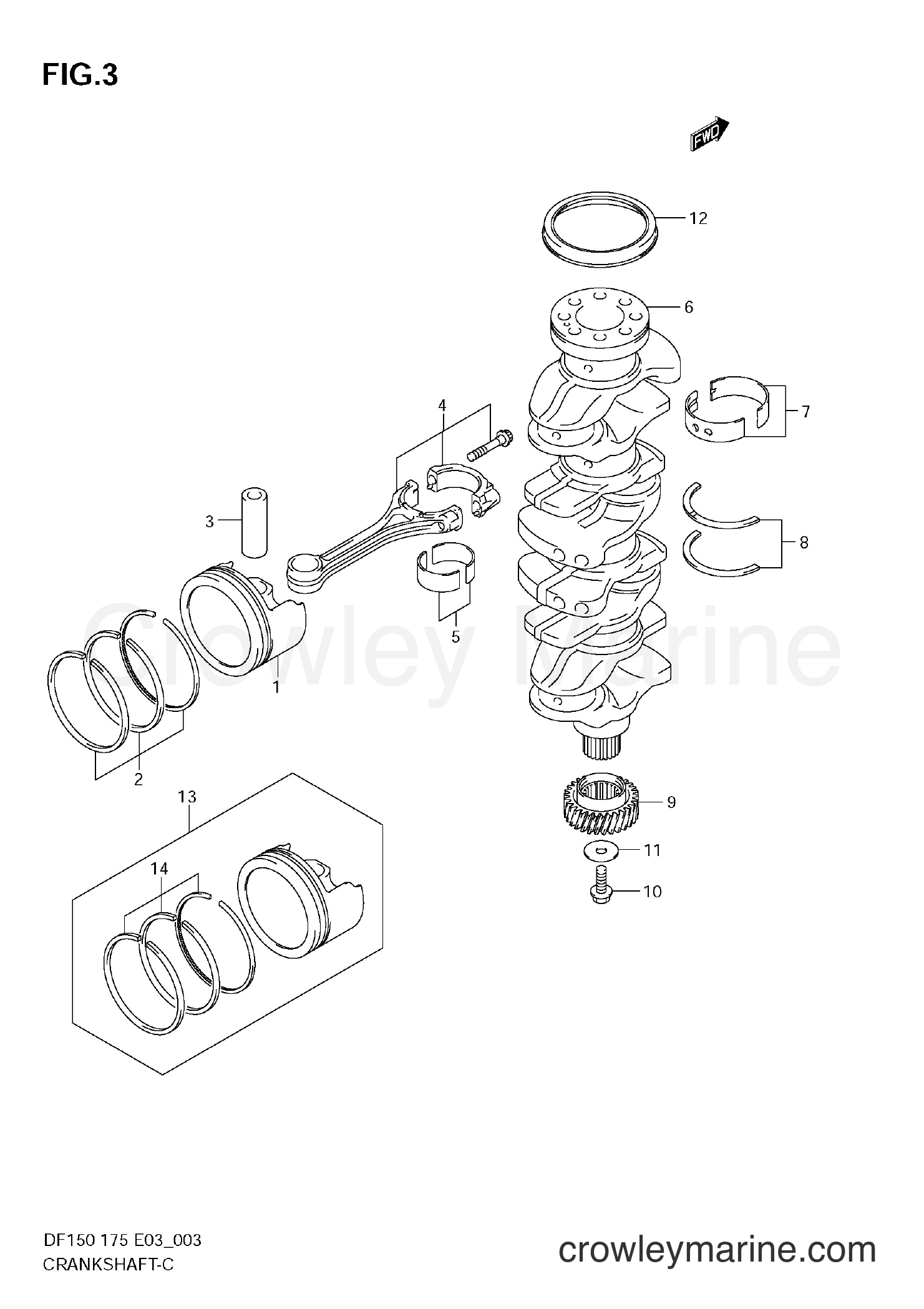

2006 Four-Stroke Outboard 150 - DF150 CRANKSHAFT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2006 Four-Stroke Outboard 150 - DF150 - CRANKSHAFT 2006 Four-Stroke Outboard 150 - DF150 - CRANKSHAFT
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
Piston
12111-96J01-0B0 ← 12111-96J01-0B0

PISTON

$184.95
You save $9.33. $194.28
Cross Ship
3
Piston Pin
12151-96J00 ← 12151-96J00

PIN, PISTON

$11.83
You save 5%. $12.45
Cross Ship
4
CONNROD ASSY
12160-96J10

CONNROD ASSY

$137.99
You save $7.26. $145.25
Cross Ship
6
Crankshaft 39 - see block comment 40
12221-96J10

CRANKSHAFT

$2,240.00
You save $197.98. $2,437.98
Cross Ship
6
Crankshaft 39 - see block comment 40
12221-96J10 ← 12221-96J10

CRANKSHAFT

Notes:DF150T:681545~ DF175T:681213~ DF150Z:680210~ DF175Z:680174~
$2,240.00
You save $197.98. $2,437.98
Cross Ship
9
Drive Gear
12242-96J00 ← 12242-96J00

GEAR, DRIVE

$164.95
You save $9.84. $174.79
Cross Ship
13
PISTON SET,OS(0
12100-96J01-050 ← 12100-96J01-050

PISTON SET (OS:0.50)

Notes:OPT
$239.95
You save $12.94. $252.89
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
