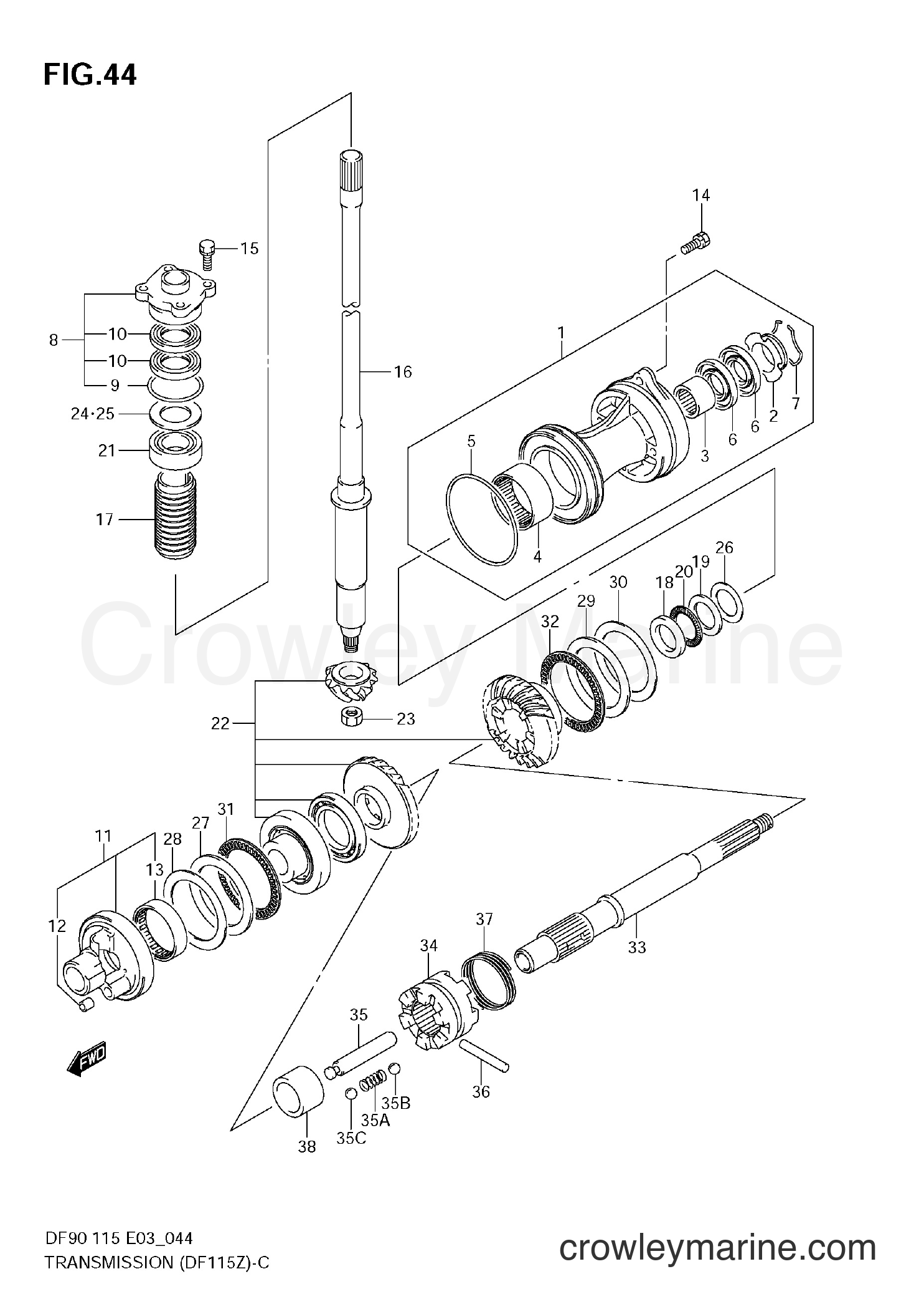

2002 Four-Stroke Outboard 115 - DF115 TRANSMISSION (DF115Z) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2002 Four-Stroke Outboard 115 - DF115 - TRANSMISSION (DF115Z) 2002 Four-Stroke Outboard 115 - DF115 - TRANSMISSION (DF115Z)
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

4
RN 50X62X25 BRG
09263-50001 ← 09263-50001

.BEARING (50X62X25)

$57.99
You save $1.21. $59.20
Ships immediately
1 in stock
6
Oil Seal
09282-30007 ← 09282-30007

.SEAL OIL

$7.42
You save 5%. $7.81
Cross Ship
12
PIN
09206-09012 ← 09206-09012

.PIN, KNOCK

$3.33
You save 5%. $3.51
Cross Ship
18
WASHER,30X47X6.
09160-30055 ← 09160-30055

WASHER (30X47X6.0)

Notes:PROP SHAFT REV
$103.48
You save $5.45. $108.93
Cross Ship
19
WASHER, 32X47X3
09160-30056 ← 09160-30056

WASHER (32X47X3.0)

Notes:PROP SHAFT REV
$32.55
You save $1.71. $34.26
Cross Ship
20
Thrust Bearing
09269-30014 ← 09269-30014

BEARING (30X47X2.0)

Notes:PROP SHAFT REV
$12.23
You save 5%. $12.87
Cross Ship
22
PINION / GEAR S
57300-92850 ← 57300-92850

PINION/GEAR SET

$908.00
You save $48.63. $956.63
Cross Ship
23
Nut
09140-14024 ← 09140-14024

NUT

$2.80
You save 5%. $2.95
Cross Ship
26
WASHER,35X46X0.
09160-35015 ← 09160-35015

WASHER (35X46X0.60)

Notes:PROP SHAFT REV
$6.57
You save 5%. $6.92
Cross Ship
27
WASHER,60X85X3
09160-60011 ← 09160-60011

WASHER (60X85X3.0)

Notes:REV GEAR
$48.03
You save $2.53. $50.56
Cross Ship
29
WASHER,THRUST F
09160-70005 ← 09160-70005

WASHER (70X95X2.0)

Notes:FWD GEAR
$39.95
You save $2.62. $42.57
Cross Ship
37
Spring
09440-49004 ← 09440-49004

SPRING

$2.77
You save 5%. $2.92
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
