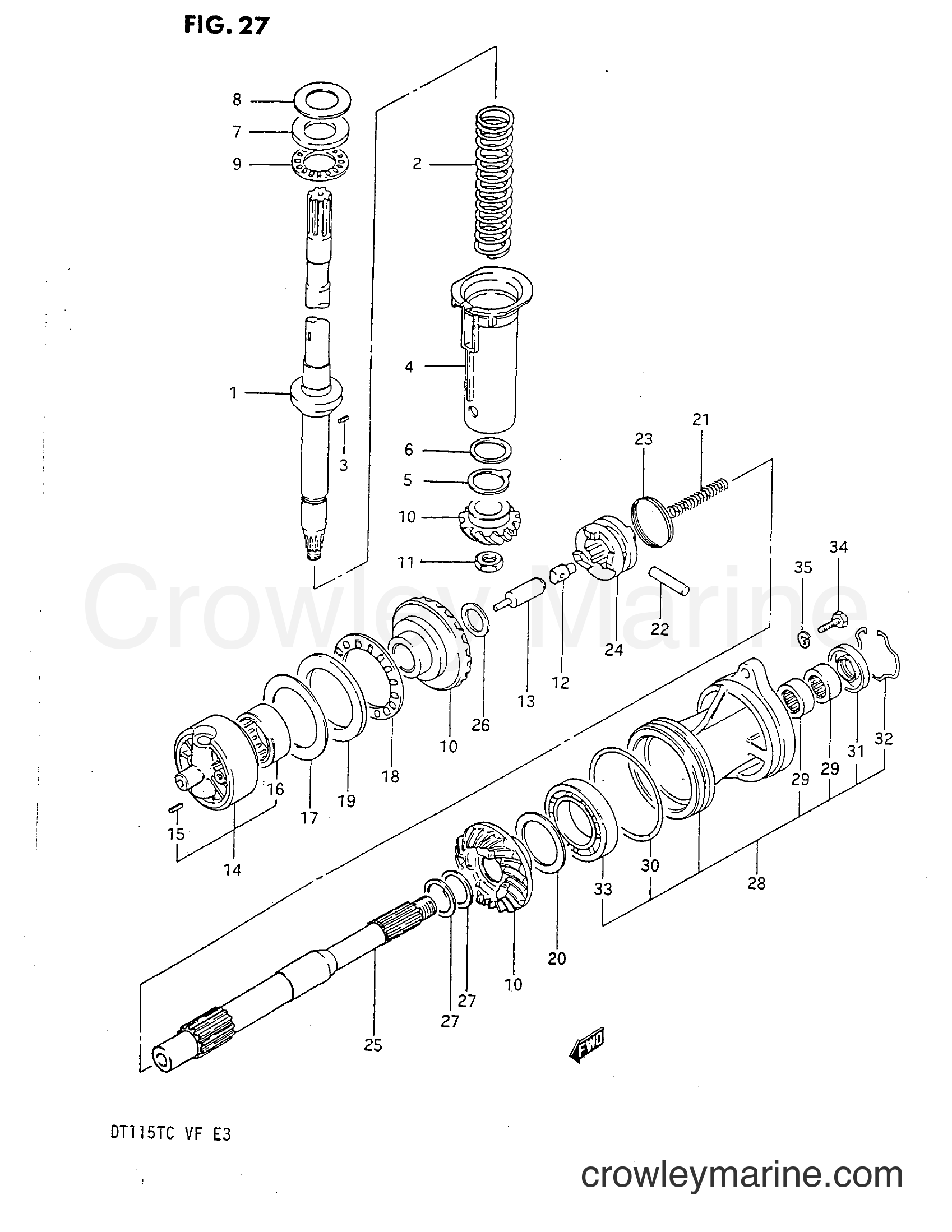

1983 Two-Stroke Outboard 115 - DT115 TRANSMISSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1983 Two-Stroke Outboard 115 - DT115 - TRANSMISSION 1983 Two-Stroke Outboard 115 - DT115 - TRANSMISSION
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

9
RC 30X52X8 BRNG
09263-30046

BEARING

$102.70
You save $5.41. $108.11
Cross Ship
11
NUT,PINION
09140-16021 ← 09140-16021

NUT

$3.38
You save 5%. $3.56
Cross Ship
15
PIN
09205-05011 ← 09205-05011

.PIN (L:14)

$1.29
You save 5%. $1.36
Cross Ship
16
RN 50X62X25 BRG
09263-50001 ← 09263-50001

.BEARING

$57.99
You save $1.21. $59.20
Ships immediately
1 in stock
18
RC 70X95X4 BRG
09269-70001 ← 09269-70001

BEARING

$54.95
You save $4.36. $59.31
Cross Ship
20
Shim
09181-45003 ← 09181-45003

SHIM (T:1.0)

$3.30
You save 5%. $3.47
Cross Ship
20
Shim
09181-45005 ← 09181-45005

SHIM (T:1.2)

$3.30
You save 5%. $3.47
Cross Ship
20
Shim
09181-45006 ← 09181-45006

SHIM (T:1.3)

$3.35
You save 5%. $3.53
Cross Ship
20
Shim
09181-45007 ← 09181-45007

SHIM (T:1.4)

$3.30
You save 5%. $3.47
Cross Ship
20
Shim
09181-45008 ← 09181-45008

SHIM (T:1.5)

$3.35
You save 5%. $3.53
Cross Ship
20
Shim
09181-45009 ← 09181-45009

SHIM (T:1.6)

$3.30
You save 5%. $3.47
Cross Ship
21
Spring
09440-11020

SPRING (L:65)

Notes:MODEL QD
$1.96
You save 5%. $2.06
Cross Ship
21
Spring
09440-11020 ← 09440-11020

SPRING (L:67)

Notes:MODEL VE/VF
$1.96
You save 5%. $2.06
Cross Ship
23
SPRING DOG
09440-50002 ← 09440-50002

SPRING (L:6.75)

Notes:405823~
$1.99
You save 13%. $2.28
Ships immediately
1 in stock
24
SHIFTER,CLUTCH
Notes:404575~405677
$102.99
You save $25.31. $128.30
Ships immediately
1 in stock
24
SHIFTER,CLUTCH
Notes:40568~406189
$102.99
You save $25.31. $128.30
Ships immediately
1 in stock
24
SHIFTER,CLUTCH
Notes:406188~
$102.99
You save $25.31. $128.30
Ships immediately
1 in stock
29
RN 28X37X20 BRG
09263-28013 ← 09263-28013

.BEARING

$29.95
$30.75
Cross Ship
31
PROP SHAFT OIL
09289-28006 ← 09289-28006

.OIL SEAL

Notes:MODEL QD
$14.75
Cross Ship
32
SET RING (SUS)
09387-52001 ← 09387-52001

.RING

$2.57
You save 5%. $2.71
Cross Ship
33
B1 45X75X16 BEA
08113-60097

.BEARING

$49.95
You save $3.34. $53.29
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
