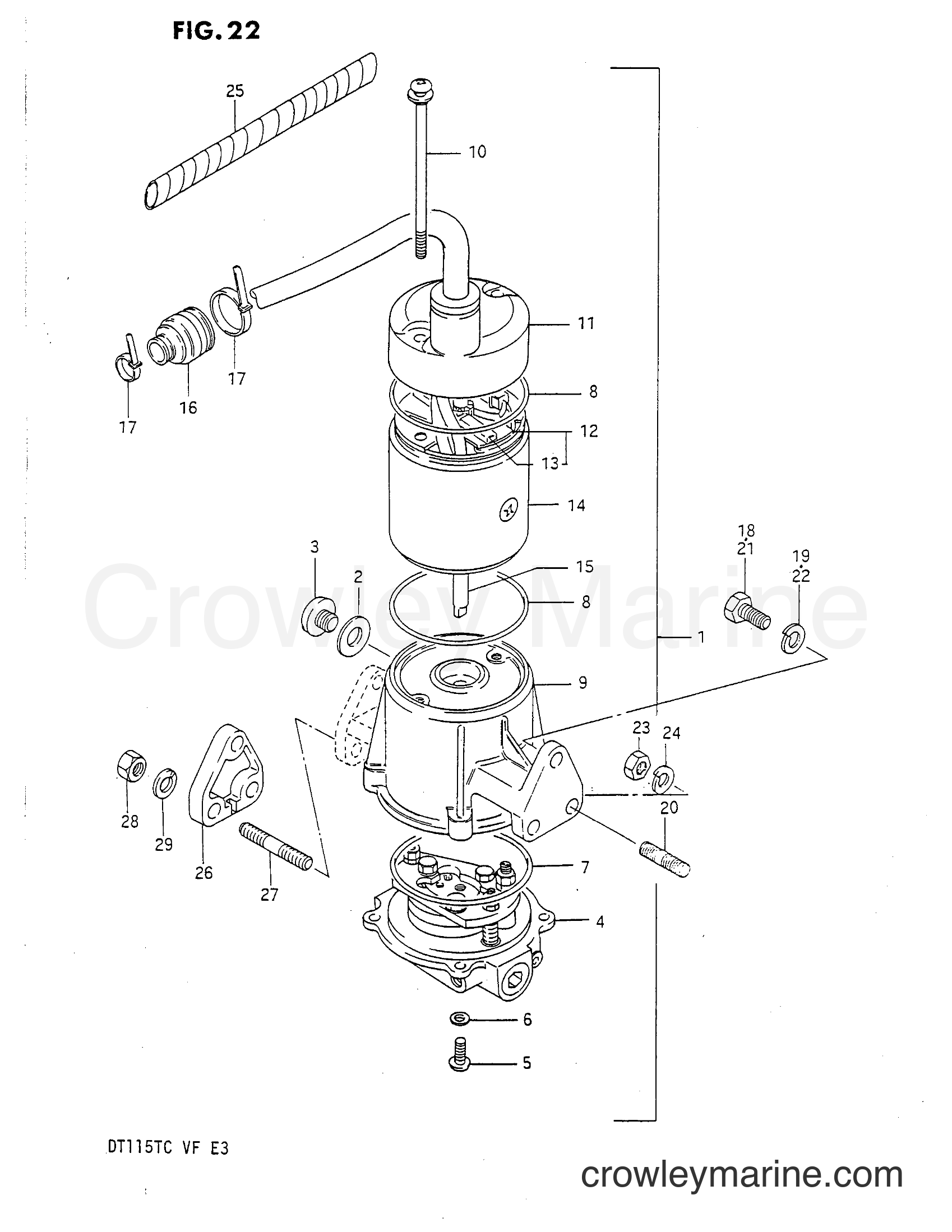

1983 Two-Stroke Outboard 115 - DT115 POWER UNIT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1983 Two-Stroke Outboard 115 - DT115 - POWER UNIT 1983 Two-Stroke Outboard 115 - DT115 - POWER UNIT
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

7
O RING, VAVE BO
48585-94520 ← 48585-94520

.O RING

$4.95
$5.18
Cross Ship
8
O RING DRIVEN B
09280-70005

.O RING

$5.95
$6.00
Cross Ship
10
BOLT
31281-94510

.SCREW

$14.95
$15.03
Cross Ship
17
Clamp
09407-25402

.CLAMP

$4.46
Cross Ship
23
Nut
09140-08023-XC0

NUT

Notes:MODEL VE/VF
$2.33
You save 5%. $2.45
Cross Ship
27
Stud
09108-08137 ← 09108-08137

BOLT (8X35)

Notes:OPT:PORT SIDE
$4.92
Cross Ship
28
Nut
09140-08023-XC0

NUT

Notes:OPT:PORT SIDE
$2.33
You save 5%. $2.45
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
