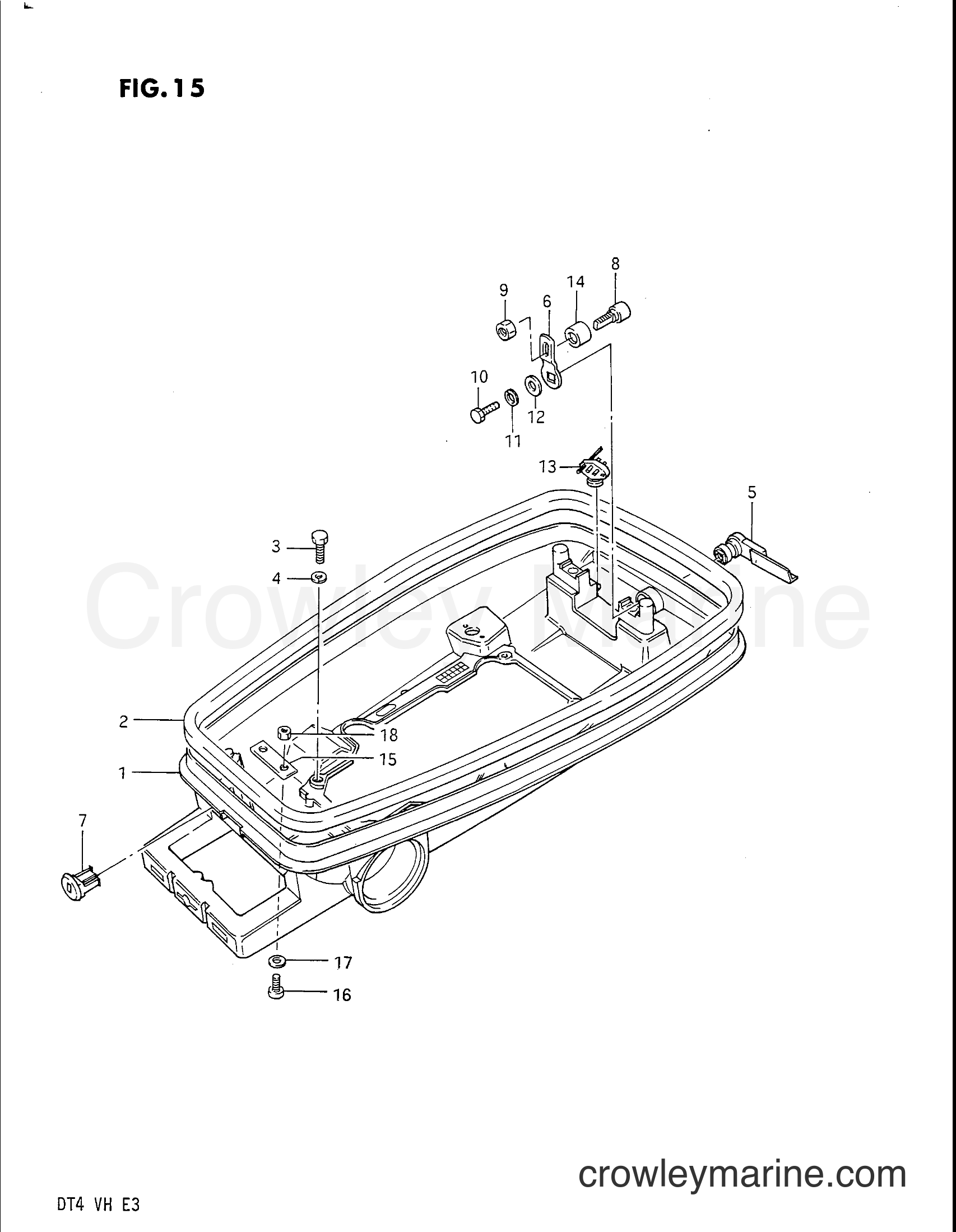

1986 Two-Stroke Outboard 4 - DT4V LOWER COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1986 Two-Stroke Outboard 4 - DT4V - LOWER COVER 1986 Two-Stroke Outboard 4 - DT4V - LOWER COVER
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
BOLT,6X15
09117-06040-XC0

BOLT (6X16)

$2.83
You save 5%. $2.98
Cross Ship
8
PIN UNDER COVER
61635-98602 ← 61635-98602

PIN

$5.95
$6.06
Cross Ship
9
Nut
08310-00067

NUT

$0.99
You save 42%. $1.70
Ships immediately
5+ in stock
10
BOLT,6X15
09117-06040-XC0

BOLT

$2.83
You save 5%. $2.98
Cross Ship
12
WASHER HANDLE C
09160-06052 ← 09160-06052

WASHER

$1.25
You save 5%. $1.32
Cross Ship
16
SCREW 4X8
02112-04087

SCREW

$0.97
You save 5%. $1.02
Cross Ship
17
WASHER
08322-01087

WASHER

$1.70
Ships immediately
5+ in stock
18
Nut
08310-0004A

NUT

$1.74
You save 5%. $1.83
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
