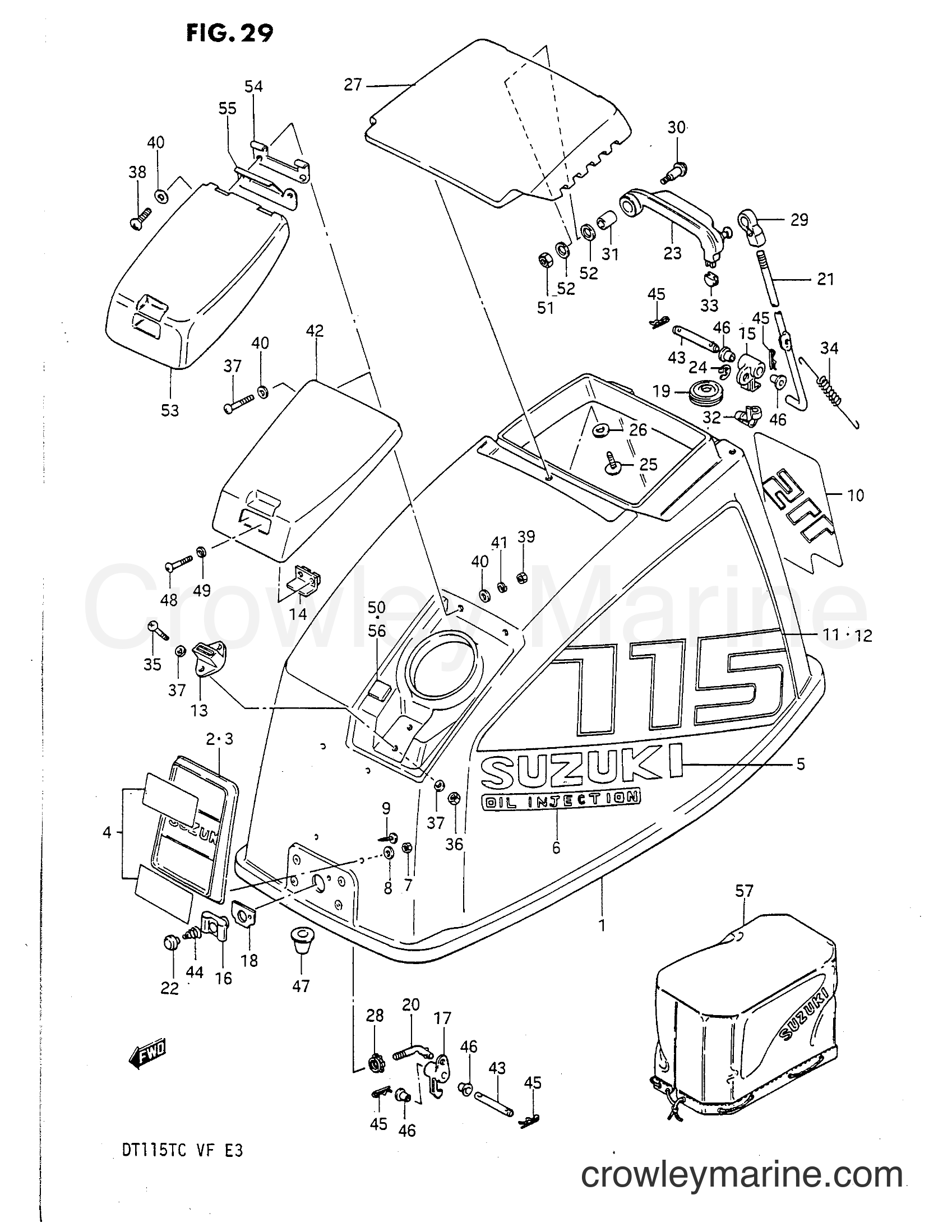

1983 Two-Stroke Outboard 115 - DT115 ENGINE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1983 Two-Stroke Outboard 115 - DT115 - ENGINE COVER 1983 Two-Stroke Outboard 115 - DT115 - ENGINE COVER
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

8
SPEEDOMETER WAS
09160-05024 ← 09160-05024

.WASHER

Notes:MODEL QD/VE
$1.38
You save 5%. $1.45
Cross Ship
9
Screw (M8 X 40)
03241-0510A

.SCREW

Notes:MODEL VF
$1.12
You save 5%. $1.18
Cross Ship
24
E RING
09383-03001 ← 09383-03001

.E RING

Notes:FOR 61653-94502
$0.79
Cross Ship
31
Spacer
09180-06097 ← 09180-06097

.SPACER

Notes:~304005
$5.41
Cross Ship
32
PIN
09209-05017 ← 09209-05017

.PIN, LINKAGE

$1.38
You save 5%. $1.45
Cross Ship
44
SPRING (SUS)
09441-12001 ← 09441-12001

.SPRING

$2.83
You save 5%. $2.98
Cross Ship
47
CUSHION,ENGINE
09329-10024

.CUSHION

$3.65
You save 5%. $3.84
Cross Ship
48
SCREW 4X8
02112-04087

.SCREW

Notes:~304004
$1.00
You save 5%. $1.05
Cross Ship
49
WASHER
08322-01047

.WASHER

Notes:~304004
$1.66
You save 5%. $1.75
Cross Ship
51
Nut
08310-00067

.NUT

Notes:~304005
$0.99
You save 43%. $1.75
Ships immediately
5+ in stock
55
SPRING,FILLER L
61485-94500 ← 61485-94500

.SPRING

Notes:304005~
$4.53
Cross Ship
56
PAD OIL FILLER
61544-94500 ← 61544-94500

.PAD

Notes:304005~
$1.62
You save 5%. $1.70
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
