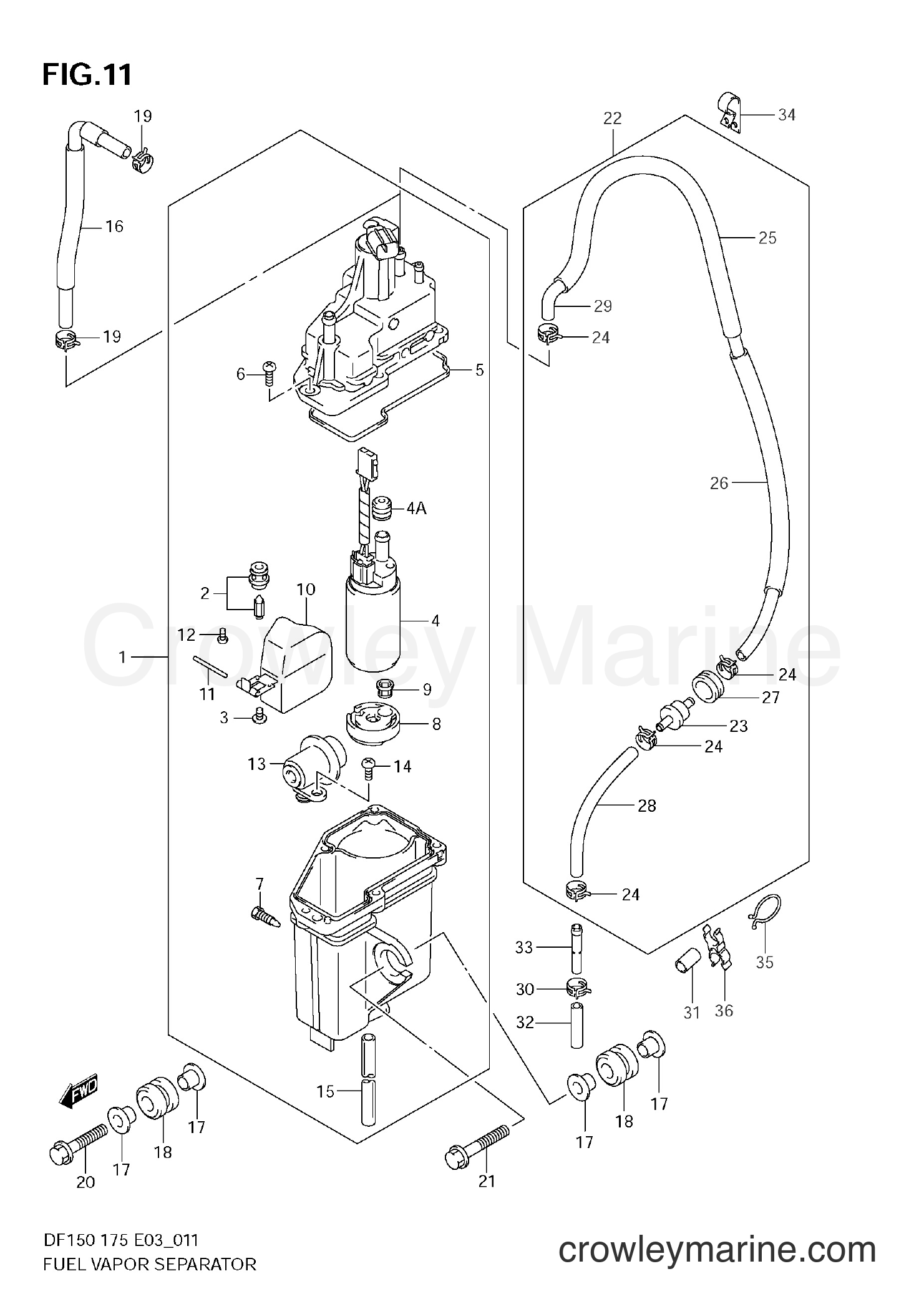

2006 Four-Stroke Outboard 150 - DF150 FUEL VAPOR SEPARATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2006 Four-Stroke Outboard 150 - DF150 - FUEL VAPOR SEPARATOR 2006 Four-Stroke Outboard 150 - DF150 - FUEL VAPOR SEPARATOR
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
SEPARATOR ASSY,
Notes:DF150T:110122~ DF175T:110093~ DF150Z:110010~ DF175Z:110012~
$671.00
You save $35.90. $706.90
Cross Ship
2
Needle Valve
13370-96J00 ← 13370-96J00

.VALVE, NEEDLE

$49.95
You save $3.03. $52.98
Cross Ship
4
PUMP ASSY,FUEL(
15200-96J00 ← 15200-96J00

.PUMP, FUEL

$403.98
You save $21.26. $425.24
Cross Ship
4
BUSH,FUEL PUMP
15647-93J00 ← 15647-93J00

.BUSH

$9.81
Cross Ship
5
Shift Bracket Seal
15626-96J00 ← 15626-96J00

.SEAL

$13.14
You save 5%. $13.83
Cross Ship
6
SCREW(L:15)
15628-99E00 ← 15628-99E00

.SCREW (L:15)

$2.22
You save 5%. $2.34
Cross Ship
10
Float
15650-96J00 ← 15650-96J00

.FLOAT

$69.95
You save $4.07. $74.02
Cross Ship
11
FLOAT PIN
13254-01010 ← 13254-01010

.PIN

$3.44
You save 5%. $3.62
Cross Ship
13
REGULATOR,FUEL
15760-93J01

.REGULATOR

$122.39
You save $6.44. $128.83
Cross Ship
18
CUSHION,SLCNR B
09320-12094

CUSHION

$2.00
You save 5%. $2.10
Cross Ship
19
Clip
09401-08412

CLIP

Notes:DF150T:~780700 DF175T:~780640 DF150Z:~780143 DF175Z:~780118
$1.91
You save 5%. $2.01
Cross Ship
20
BOLT
01550-08357 ← 01550-08357

BOLT, S

$3.16
You save 5%. $3.33
Cross Ship
21
BOLT 8 X 40
01550-08407 ← 01550-08407

BOLT, L

$3.13
You save 5%. $3.29
Cross Ship
22
HOSE,EVAPORATIO
Notes:DF150T:780701~ DF175T:780641~ DF150Z:780144~ DF175Z:780119~
$22.10
You save $1.16. $23.26
Cross Ship
27
Cushion
09320-20008 ← 09320-20008

.CUSHION FILTER

Notes:DF150T:780701~ DF175T:780641~ DF150Z:780144~ DF175Z:780119~
$3.35
You save 5%. $3.53
Cross Ship
29
HOSE(5X8.2X2000
Notes:L:2000->860 DF150T:780701~ DF175T:780641~ DF150Z:780144~ DF175Z:780119~
$12.75
You save 5%. $13.42
Cross Ship
33
Union
09364-06010 ← 09364-06010

UNION, EVAPORATION

Notes:DF150T:780701~ DF175T:780641~ DF150Z:780144~ DF175Z:780119~
$5.72
Cross Ship
34
Clamp
Notes:DF150T:780701~ DF175T:780641~ DF150Z:780144~ DF175Z:780119~
$3.99
You save 20%. $4.96
Ships immediately
2 in stock
35
Clamp
09408-00008 ← 09408-00008

CLAMP, EVAPORATION HOSE

Notes:DF150T:780701~ DF175T:780641~ DF150Z:780144~ DF175Z:780119~
$1.91
You save 5%. $2.01
Cross Ship
36
Clamp
09408-00078 ← 09408-00078

CLAMP, EVAPORATION HOSE

Notes:DF150T:780701~ DF175T:780641~ DF150Z:780144~ DF175Z:780119~
$3.48
You save 5%. $3.66
Cross Ship
37
HOSE SET,EVAPOR
Notes:OPT,NOT SHOWN INC.NO.22~36 DF150T:780701~ DF175T:780641~ DF150Z:780144~ DF175Z:780119~
$27.36
You save $1.44. $28.80
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
