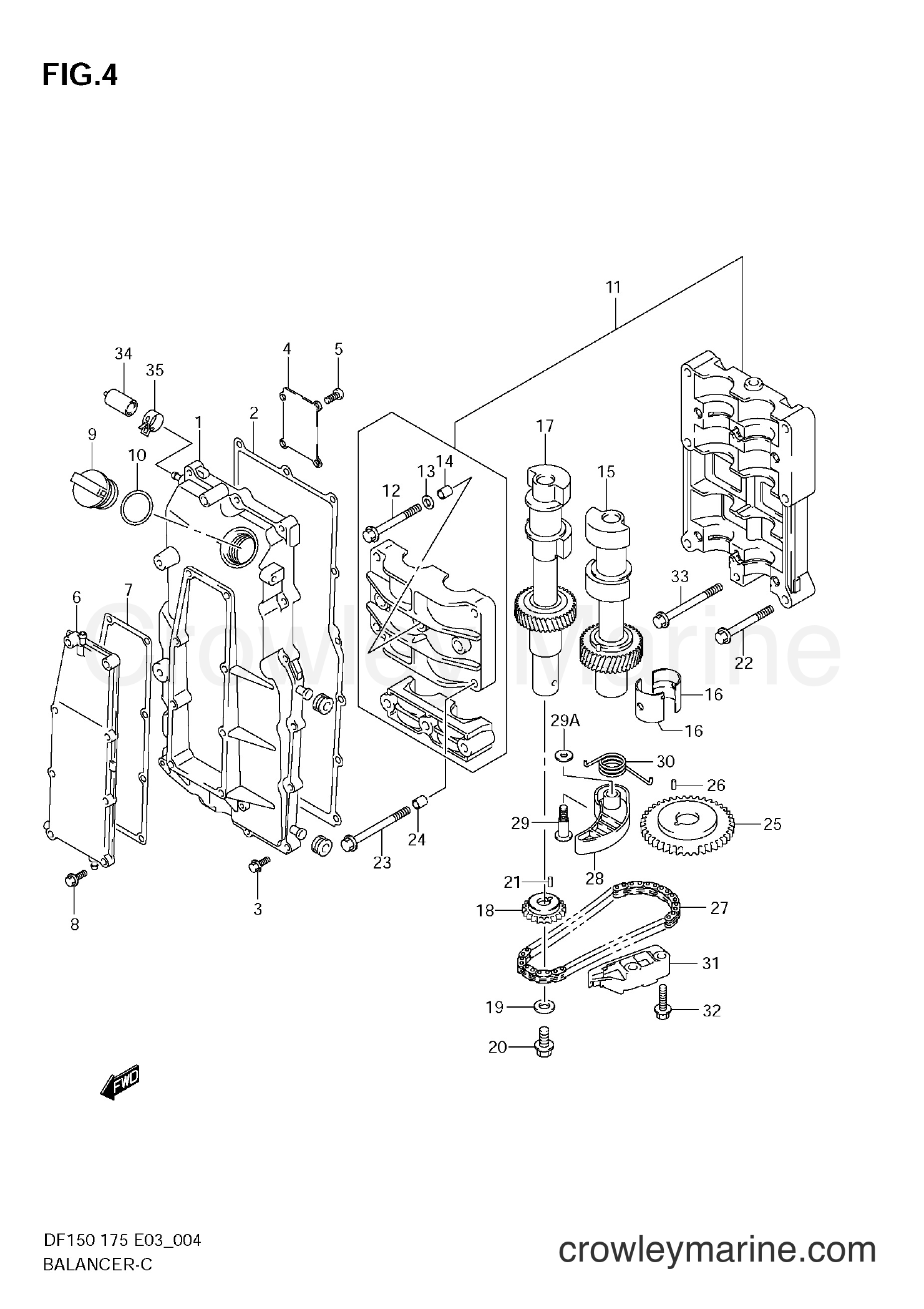

2006 Four-Stroke Outboard 150 - DF150 BALANCER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2006 Four-Stroke Outboard 150 - DF150 - BALANCER 2006 Four-Stroke Outboard 150 - DF150 - BALANCER
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
COVER,BALANCER
11330-96J10 ← 11330-96J10

COVER, BALANCER SHAFT

Notes:DF150T:782346~ DF175T:782633~ DF150Z:780355~ DF175Z:780481~
$264.95
You save $13.05. $278.00
Cross Ship
4
PLATE,BALANCER
11345-96J00 ← 11345-96J00

PLATE, BALANCER COVER

Notes:DF150T:~782345 DF175T:~782632 DF150Z:~780354 DF175Z:~780480
$3.77
You save 5%. $3.97
Cross Ship
5
Screw (M8 X 40)
02112-0612A ← 02112-0612A

BOLT, PLATE

Notes:DF150T:~782345 DF175T:~782632 DF150Z:~780354 DF175Z:~780480
$1.28
You save 5%. $1.35
Cross Ship
12
BOLT,BALANCER
12643-96J00 ← 12643-96J00

.BOLT

$6.37
You save 5%. $6.70
Cross Ship
13
WASHER
12644-96J00 ← 12644-96J00

.WASHER

$2.76
You save 5%. $2.91
Cross Ship
14
11 X 12 DOWEL P
04211-11129 ← 04211-11129

.PIN, UPPER

$1.68
Ships immediately
5+ in stock
27
CHAIN COMP,BALA
12670-96J00 ← 12670-96J00

CHAIN, BALANCER

$52.90
You save $2.78. $55.68
Cross Ship
28
TENSIONER,BALAN
12671-96J01 ← 12671-96J01

TENSIONER, BAL CHAIN

Notes:MODEL:09~
$24.95
You save $2.31. $27.26
Cross Ship
31
GUIDE,BALANCER
12695-96J00 ← 12695-96J00

GUIDE, BAL CHAIN

$59.95
You save $2.47. $62.42
Cross Ship
34
Plug
09251-05006 ← 09251-05006

CAP, BALANCER COVER

Notes:DF150T:780701~782345 DF175T:780641~782632 DF150Z:780144~780354 DF175Z:780119~780480
$5.59
Cross Ship
35
Clip
09401-10411 ← 09401-10411

CLIP, CAP

Notes:DF150T:780701~782345 DF175T:780641~782632 DF150Z:780144~780354 DF175Z:780119~780480
$2.16
You save 5%. $2.27
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
