Select Your Engine:

1988 Two-Stroke 150 - DT150G

CLUTCH (DT150/150S/175/200/200S)(MODEL:87,88) section

Change Section

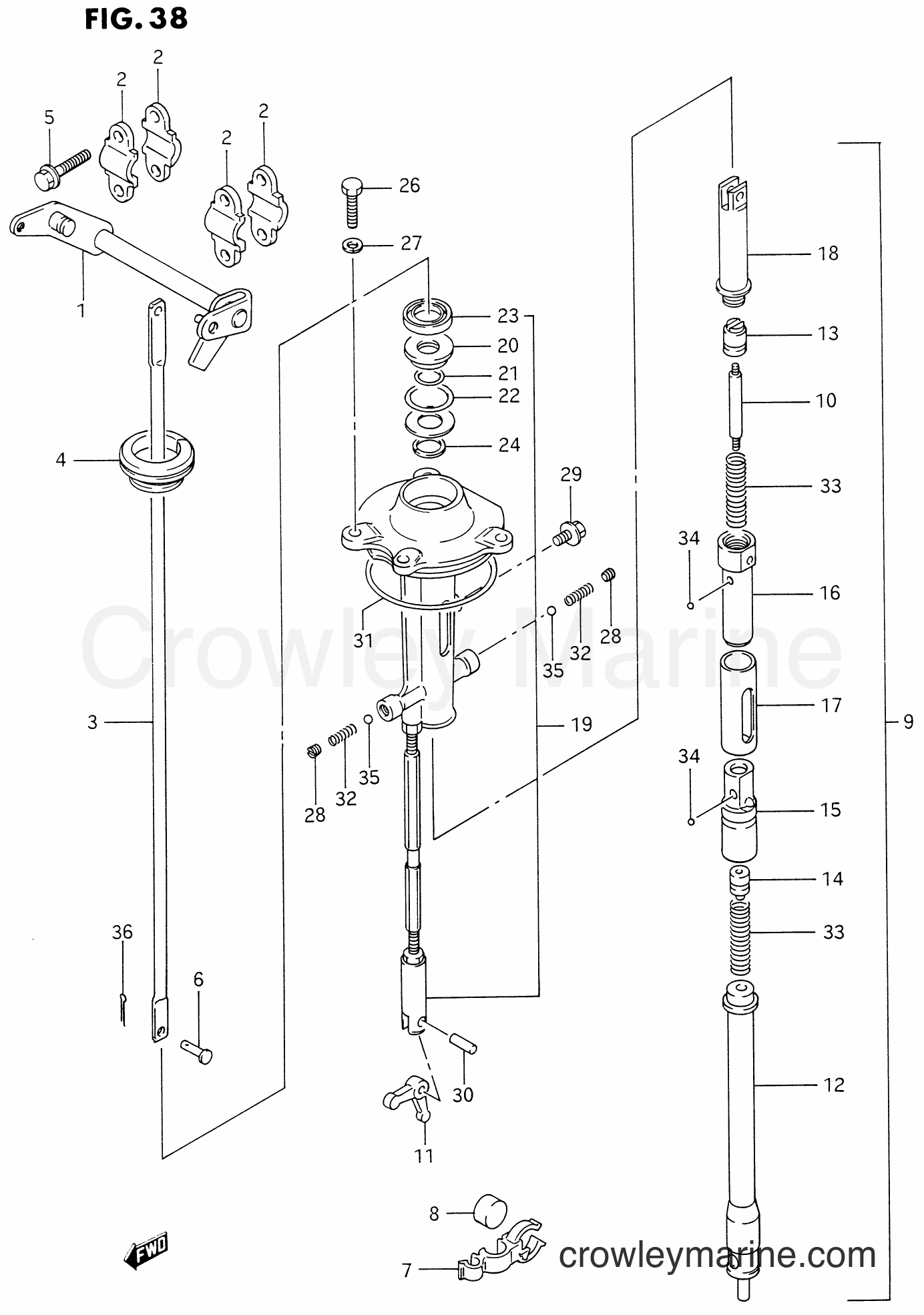

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1988 Two-Stroke 150 - DT150G CLUTCH (DT150/150S/175/200/200S)(MODEL:87,88) section
Use two fingers to zoom
and move the diagram
1988 Two-Stroke 150 - DT150G - CLUTCH (DT150/150S/175/200/200S)(MODEL:87,88) section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
21210-87D03 - SHAFT,CLUTCH
21210-87D03
21210-87D03 21210-87D03

SHAFT, CLUTCH

SHAFT, CLUTCH
$29.95
You save 19%. $37.12
Leaves in 3-5 days
Required: 1
4
23131-87D00 - BOOT,CLUTCH ROD
23131-87D00
23131-87D00 23131-87D00

BOOT, CLUTCH ROD

BOOT, CLUTCH ROD
$3.95
You save 18%. $4.82
Leaves in 3-5 days
Required: 1
11
25131-87D03 - YOKE,SHIFTER
25131-87D03
25131-87D03 25131-87D03

.YOKE, SHIFT

.YOKE, SHIFT
$32.60
You save 18%. $39.75
Leaves in 3-5 days
Required: 1
21
09280-14010 - O RING D:3.1 ID
09280-14010
09280-14010 09280-14010

..O RING, INNER

..O RING, INNER
$1.20
You save 18%. $1.46
Leaves in 3-5 days
Required: 1
22
09280-24003 - O RING
09280-24003
09280-24003 09280-24003

..O RING, OUTER

..O RING, OUTER
$1.05
You save 18%. $1.28
Leaves in 3-5 days
Required: 1
26
09117-06031 - BOLT
09117-06031
09117-06031 09117-06031

BOLT (6X20)

BOLT (6X20)
$2.35
You save 18%. $2.86
Leaves in 3-5 days
Required: 3
27
09162-06006 - WASHER
09162-06006
09162-06006 09162-06006

LOCK WASHER

LOCK WASHER
$.96
You save 18%. $1.17
Leaves in 3-5 days
Required: 3
29
09135-06016 - BOLT
09135-06016
09135-06016 09135-06016

BOLT

BOLT
$3.12
You save 18%. $3.80
Leaves in 3-5 days
Required: 1
30
09202-06032 - PIN
09202-06032
09202-06032 09202-06032

PIN

PIN
$2.78
You save 18%. $3.39
Leaves in 3-5 days
Required: 1
35
06111-07004 - STEEL BALL 7/32
06111-07004
06111-07004 06111-07004

BALL, NOTCH

BALL, NOTCH
$.95
You save 6%. $1.01
Leaves in 3-5 days
Required: 2
36
09204-01002 - PIN
09204-01002
09204-01002 09204-01002

PIN

PIN
$1.16
You save 18%. $1.41
Ships Immediately
1 Items in stock
Required: 1
 -
REFER TO FIG.39

N/A

N/A
Leaves in 3-5 days
5+ Items in stock
Required: 1
 -
N/A

N/A

N/A
Leaves in 3-5 days
5+ Items in stock
Required: 1
 -
REFER TO FIG.41

N/A

N/A
Leaves in 3-5 days
5+ Items in stock
Required: 1
 -
REFER TO FIG.40

N/A

N/A
Leaves in 3-5 days
5+ Items in stock
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
