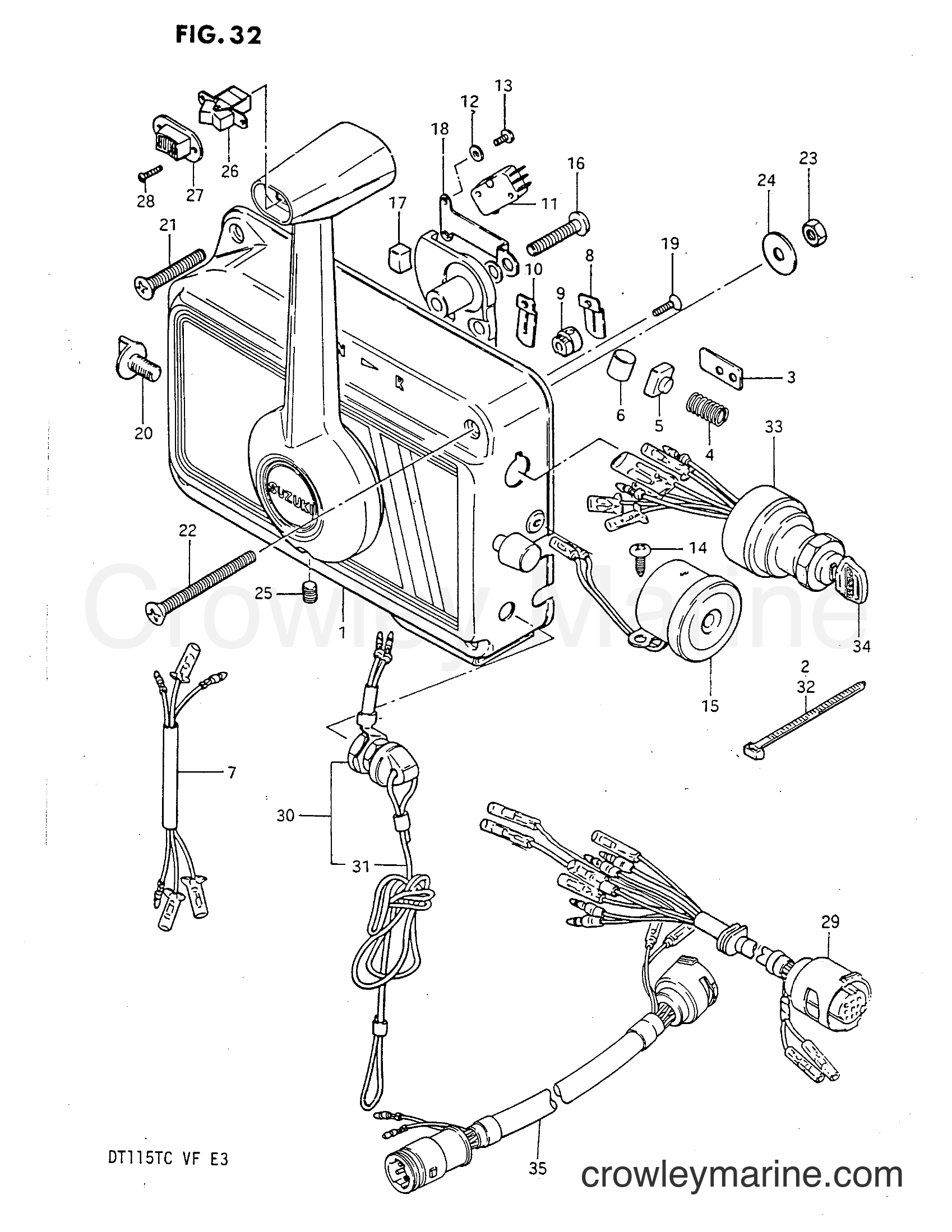

1983 Two-Stroke Outboard 115 - DT115 REMOTE CONTROL (1) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1983 Two-Stroke Outboard 115 - DT115 - REMOTE CONTROL (1) 1983 Two-Stroke Outboard 115 - DT115 - REMOTE CONTROL (1)
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

12
LOCK WASHER
08323-3105A

.WASHER

$1.11
You save 5%. $1.17
Cross Ship
13
5 X 10 CROSS SC
02112-05107 ← 02112-05107

.SCREW

$1.28
You save 5%. $1.35
Cross Ship
15
BUZZER SET,WARN
38500-92X51

.BUZZER

$74.95
You save $3.84. $78.79
Cross Ship
16
SCREW 6 X 35
02112-06357

.SCREW

$1.60
You save 5%. $1.68
Cross Ship
19
Screw (M8 X 40)
02122-0412A

.SCREW

$1.71
You save 5%. $1.80
Cross Ship
23
Nut
08310-00067

.NUT

$0.99
You save 43%. $1.75
Ships immediately
5+ in stock
28
Screw (M8 X 40)
09139-02003 ← 09139-02003

.SCREW

$1.27
You save 5%. $1.34
Cross Ship
32
Clamp
09407-25402

.CLAMP

$4.46
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
