Select Your Engine:

1998 Mercury Outboard 90 - 10904128N

STARTER ASSEMBLY (MANUAL) section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

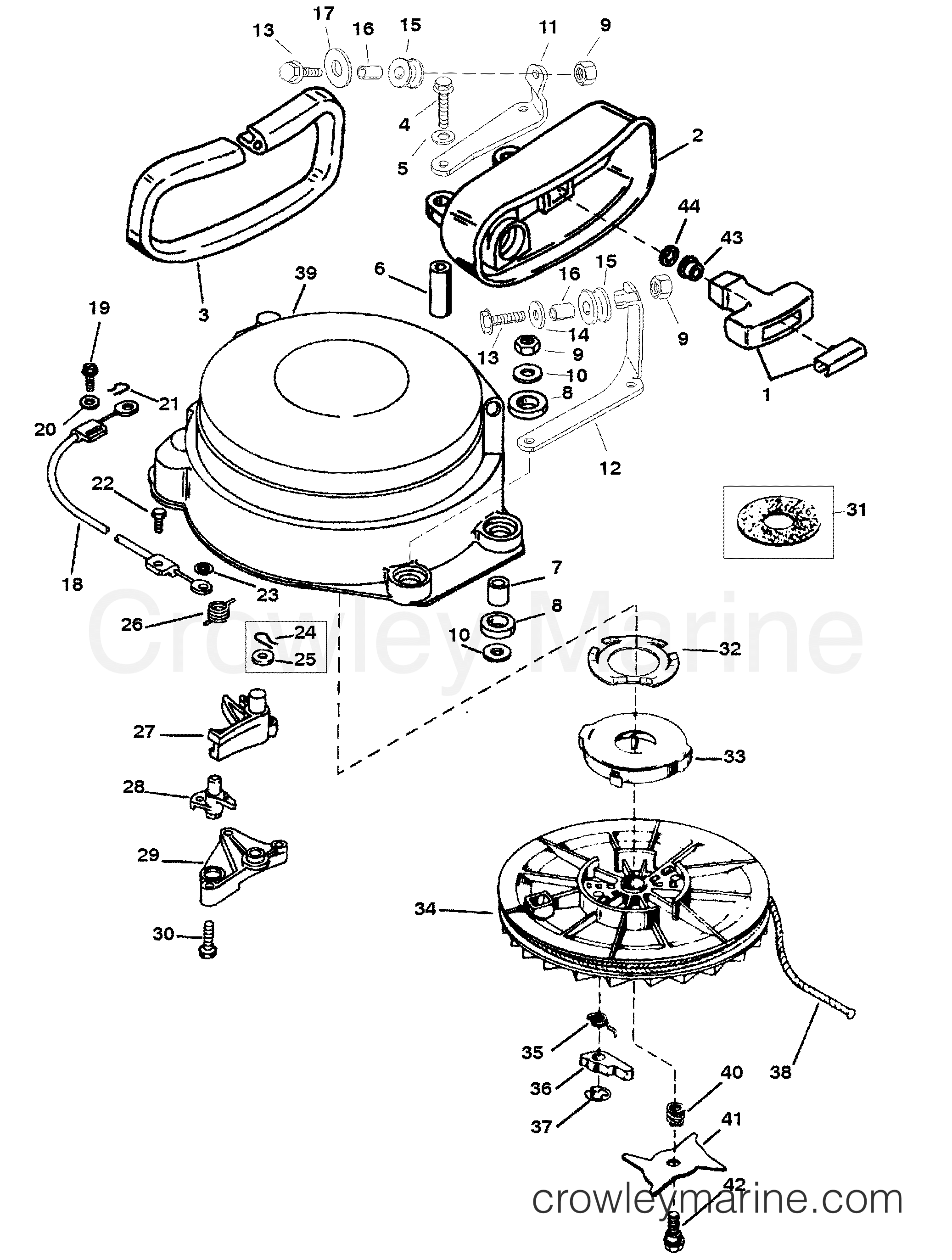

1998 Mercury Outboard 90 - 10904128N STARTER ASSEMBLY (MANUAL) section
Use two fingers to zoom
and move the diagram
1998 Mercury Outboard 90 - 10904128N - STARTER ASSEMBLY (MANUAL) section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
8220721 - Rest
8220721
8220721 822072 1

REST

REST
$23.67
You save $1.25. $24.92
Leaves in 3-5 days
Required: 1
3
8M0043270 - SEAL
8M0043270 823241
8M0043270

SEAL

SEAL
$18.99
You save 31%. $27.60
Ships Immediately
1 Items in stock
Required: 1
6
8217021 - Spacer
8217021
8217021 821702 1

SPACER

SPACER
$13.40
You save 5%. $14.10
Leaves in 3-5 days
Required: 2
9
401366 - (M6) Stainless Steel Nut
401366 40026 4
401366

NUT

NUT
Notes: (S/N-0G699128 & BELOW)
$2.80
$2.80
Ships Immediately
4 Items in stock
Required: 4
10
69057 - (.281 x .734 x .063) Washer
69057
69057 69057

WASHER

WASHER
Notes: (S/N-0G699128 & BELOW)
$.99
You save 29%. $1.40
Ships Immediately
3 Items in stock
Required: 8
10
69057 - (.281 x .734 x .063) Washer
69057
69057 69057

WASHER

WASHER
Notes: S/N-0G699129 & UP
$.99
You save 29%. $1.40
Ships Immediately
3 Items in stock
Required: 6
11 3
855596 - Bracket
855596
855596 855596

BRACKET

BRACKET
Notes: S/N-0G699129 & UP
$14.95
You save 10%. $16.58
Leaves in 3-5 days
Required: 1
12 3
855597 - Bracket
855597
855597 855597

BRACKET

BRACKET
Notes: S/N-0G699129 & UP
$22.64
You save $1.19. $23.83
Leaves in 3-5 days
Required: 1
13
40011129 - (M6 x 25) Stainless Steel Screw
40011129
40011129 40011129

SCREW

SCREW
Notes: S/N-0G699129 & UP
$3.80
You save 5%. $4.00
Leaves in 3-5 days
Required: 2
14
35462 - Stainless Steel Washer(.2656 X .625 X .0625)
35462
35462 35462

WASHER

WASHER
Notes: S/N-0G699129 & UP
$.99
You save 29%. $1.40
Ships Immediately
2 Items in stock
Required: 1
16 10
 -
NSS

SPACER

SPACER
Notes: S/N-0G699129 & UP
Leaves in 3-5 days
5+ Items in stock
Required: 2
17
67983 - Washer
67983
67983 67983

WASHER

WASHER
Notes: S/N-0G699129 & UP
$2.38
You save 5%. $2.50
Leaves in 3-5 days
Required: 1
20
73288 - Washer
73288
73288 73288

WASHER

WASHER
$1.05
You save 5%. $1.10
Leaves in 3-5 days
Required: 1
22
878608 - (#10-16 x .500) Screw
878608 812832
878608

SCREW

SCREW
$.99
You save 24%. $1.30
Ships Immediately
2 Items in stock
Required: 1
23
821027 - Push Nut-
821027
821027 821027

PUSH NUT

PUSH NUT
Notes: (DESIGN I)
$1.14
You save 5%. $1.20
Leaves in 3-5 days
Required: 1
24
35462 - Stainless Steel Washer(.2656 X .625 X .0625)
35462
35462 35462

WASHER

WASHER
Notes: DESIGN II
$.99
You save 29%. $1.40
Ships Immediately
2 Items in stock
Required: 1
26
826791 - Spring
826791
826791 826791

SPRING

SPRING
$4.90
$4.90
Leaves in 3-5 days
Required: 1
27
8166903 - Interlock Lever-
8166903
8166903 816690 3

INTERLOCK LEVER

INTERLOCK LEVER
Notes: (S/N-0G242651 & UP)
$19.95
You save $1.13. $21.08
Leaves in 3-5 days
Required: 1
28
816712T01 - CAM
816712T01 816712 1
816712T01

CAM

CAM
$16.53
You save 5%. $17.40
Leaves in 3-5 days
Required: 1
29
816711 - Retainer
816711
816711 816711

RETAINER

RETAINER
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 1
30
8182491 - Screw
8182491
8182491 818249 1

SCREW (10-16 X 1)

SCREW (10-16 X 1)
$2.85
You save 5%. $3.00
Leaves in 3-5 days
Required: 3
32
826229 - Sealing Washer-
826229
826229 826229

WASHER

WASHER
Notes: (DESIGN II)
$18.13
You save 5%. $19.08
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
