Select Your Engine:

1997 Mercruiser Race Sterndrive SSM6 - 5825N40HP

U JOINT HOUSING ASSEMBLY(DRY SUMP SIX/NXT1 SSM) section

Change Section

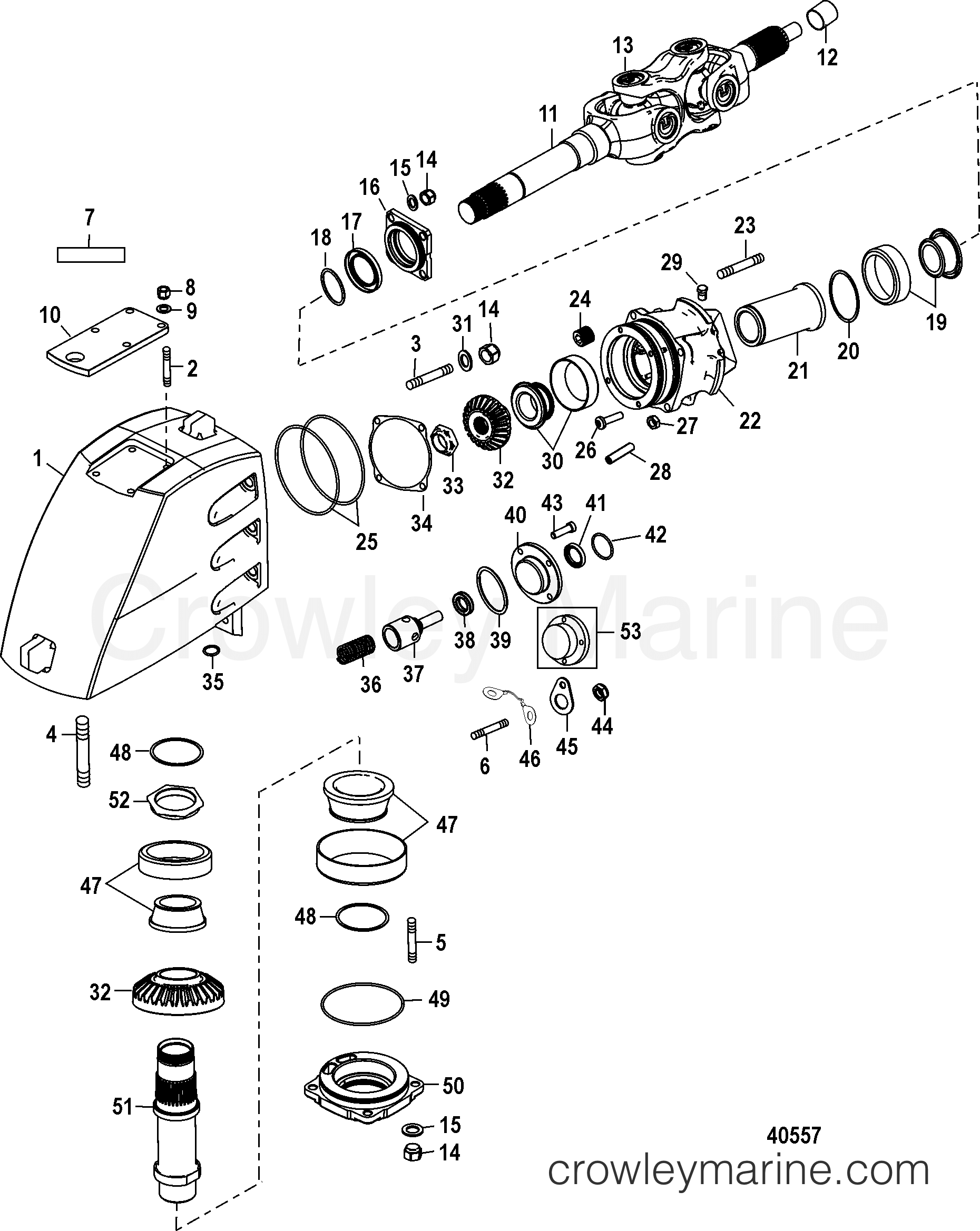

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1997 Mercruiser Race Sterndrive SSM6 - 5825N40HP - U JOINT HOUSING ASSEMBLY(DRY SUMP SIX/NXT1 SSM) section
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

6
846345 - Stud
846345
846345 846345

STUD, (#10-32 X .750)

STUD, (#10-32 X .750)
$17.20
You save 5%. $18.10
Leaves in 3-5 days
Required: 1
7
840359 - Mercury Racing Decal
840359
840359 840359

DECAL, MERCURY RACING

DECAL, MERCURY RACING
Notes: SN# 0M965835 & Below
$19.95
You save $1.63. $21.58
Leaves in 3-5 days
Required: 2
7
8M0048257 - Mercury Racing Decal
8M0048257
8M0048257 8M0048257

DECAL, MERCURY RACING

DECAL, MERCURY RACING
Notes: SN# 0M965836 & Up
$47.27
You save $2.49. $49.76
Leaves in 3-5 days
Required: 2
8
35000 - Nut
35000
35000 35000

NUT, (.500-20) STAINLESS STEEL

NUT, (.500-20) STAINLESS STEEL
$9.95
You save 14%. $11.60
Ships Immediately
5+ Items in stock
Required: 4
9
844104 - Washer
844104
844104 844104

WASHER

WASHER
$2.15
You save 5%. $2.26
Leaves in 3-5 days
Required: 4
11
841166T01 - U Joint Assembly
841166T01
841166T01 841166T01

U JOINT ASSEMBLY

U JOINT ASSEMBLY
Notes: Dry Sump Six
$2,317.00
You save $409.34. $2,726.34
Leaves in 3-5 days
Required: 1
11
899866T - U Joint Assembly
899866T
899866T 899866T

U JOINT ASSEMBLY

U JOINT ASSEMBLY
Notes: NXT1 Models
$1,348.00
You save $238.56. $1,586.56
Leaves in 3-5 days
Required: 1
12
848221 - Bearing Sleeve
848221
848221 848221

SLEEVE, BEARING

SLEEVE, BEARING
Notes: Dry Sump Six
$78.32
You save $4.12. $82.44
Leaves in 3-5 days
Required: 1
12
844358 - Bearing Sleeve
844358
844358 844358

SLEEVE, BEARING

SLEEVE, BEARING
Notes: NXT1 Models - Not included with U Joint
$31.01
You save $1.63. $32.64
Leaves in 3-5 days
Required: 1
16
847307A1 - Retainer Assembly
847307A1
847307A1 847307A 1

RETAINER ASSEMBLY

RETAINER ASSEMBLY
$541.00
You save $29.25. $570.25
Leaves in 3-5 days
Required: 1
17
846495 - Seal
846495
846495 846495

SEAL

SEAL
$74.95
You save $4.08. $79.03
Leaves in 3-5 days
Required: 1
18
847379 - O-Ring
847379
847379 847379

O-RING, (3.237 X .090)

O-RING, (3.237 X .090)
$2.94
You save 5%. $3.09
Leaves in 3-5 days
Required: 1
20
847553A1 - Shim Set
847553A1
847553A1 847553A 1

SHIM SET

SHIM SET
$22.95
You save $1.21. $24.16
Leaves in 3-5 days
Required: 1
22
847281A2 - Housing Assembly-Input
847281A2
847281A2 847281A 2

HOUSING ASSEMBLY, INPUT

HOUSING ASSEMBLY, INPUT
$579.00
You save $31.09. $610.09
Leaves in 3-5 days
Required: 1
24
568001 - Plug-Pipe
568001
568001 56800 1

PLUG, PIPE (.0625-27)

PLUG, PIPE (.0625-27)
$9.95
You save 7%. $10.75
Leaves in 3-5 days
Required: 1
28
8496731 - Nozzle Assembly
8496731
8496731 849673 1

NOZZLE

NOZZLE
$94.95
You save $4.92. $99.87
Leaves in 3-5 days
Required: 2
32
8M0051360 - GEAR SET-1.153:1
8M0051360 841171A01
8M0051360

GEAR SET

GEAR SET
Notes: (1.153:1)
$4,201.00
You save $743.02. $4,944.02
Leaves in 3-5 days
Required: 1
32
843201A01 - Gear Set
843201A01 846583A 1
843201A01

GEAR SET

GEAR SET
Notes: (1.24:1)
$2,554.00
You save $452.04. $3,006.04
Leaves in 3-5 days
Required: 1
32
849175A1 - Gear Set
849175A1
849175A1 849175A 1

GEAR SET

GEAR SET
Notes: (1.35:1)
$2,529.00
You save $447.00. $2,976.00
Leaves in 3-5 days
Required: 1
32
848787A1 - Gear Set
848787A1
848787A1 848787A 1

GEAR SET

GEAR SET
Notes: (1.47:1)
$2,431.00
You save $429.42. $2,860.42
Leaves in 3-5 days
Required: 1
32
849840A1 - Gear Set
849840A1
849840A1 849840A 1

GEAR SET

GEAR SET
Notes: (1.62:1)
$2,631.00
You save $465.22. $3,096.22
Leaves in 3-5 days
Required: 1
33
846392 - (1.25-16 RH) Nut
846392
846392 846392

NUT, (1.25-16 RH)

NUT, (1.25-16 RH)
$88.97
You save $4.68. $93.65
Leaves in 3-5 days
Required: 1
34
847306A1 - Shim Set
847306A1
847306A1 847306A 1

SHIM SET

SHIM SET
$87.22
You save $4.59. $91.81
Leaves in 3-5 days
Required: 1
36
846339 - Spring
846339
846339 846339

SPRING

SPRING
$5.69
$5.69
Leaves in 3-5 days
Required: 1
40
847304A1 - Seat Assembly
847304A1
847304A1 847304A 1

SEAT ASSEMBLY

SEAT ASSEMBLY
Notes: Dry Sump Six
$219.95
You save $13.44. $233.39
Leaves in 3-5 days
Required: 1
41
846349 - Seal
846349
846349 846349

SEAL

SEAL
Notes: Dry Sump Six
$29.95
$30.91
Leaves in 3-5 days
Required: 1
42
33466 - O-Ring
33466
33466 33466

O-RING

O-RING
Notes: Dry Sump Six
$1.95
You save 22%. $2.50
Ships Immediately
5+ Items in stock
Required: 1
45
847035 - Bonding Plate-
847035
847035 847035

PLATE, BONDING

PLATE, BONDING
$19.95
$20.50
Leaves in 3-5 days
Required: 1
46
847062A1 - Cable Bonding Kit
847062A1
847062A1 847062A 1

BONDING KIT

BONDING KIT
$39.95
You save $2.88. $42.83
Leaves in 3-5 days
Required: 1
48
34822A1 - Shim Set
34822A1
34822A1 34822A 1

SHIM SET

SHIM SET
$12.26
You save 5%. $12.90
Leaves in 3-5 days
Required: 2
50
8473112 - Cover-Bottom
8473112
8473112 847311 2

COVER, BOTTOM

COVER, BOTTOM
$194.95
You save $10.23. $205.18
Leaves in 3-5 days
Required: 1
52
848256 - (1.875-16) Special Nut
848256
848256 848256

NUT, (1.875-16) SPECIAL

NUT, (1.875-16) SPECIAL
$69.95
You save $2.75. $72.70
Leaves in 3-5 days
Required: 1
53
8M0010256 - Cover
8M0010256
8M0010256 8M0010256

COVER, SEAT VALVE

COVER, SEAT VALVE
Notes: NXT1
$24.95
$25.84
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
