Select Your Engine:

1983 Chrysler Outboard 50 - 507H3D

ENGINE COVER AND SUPPORT PLATE section

Change Section

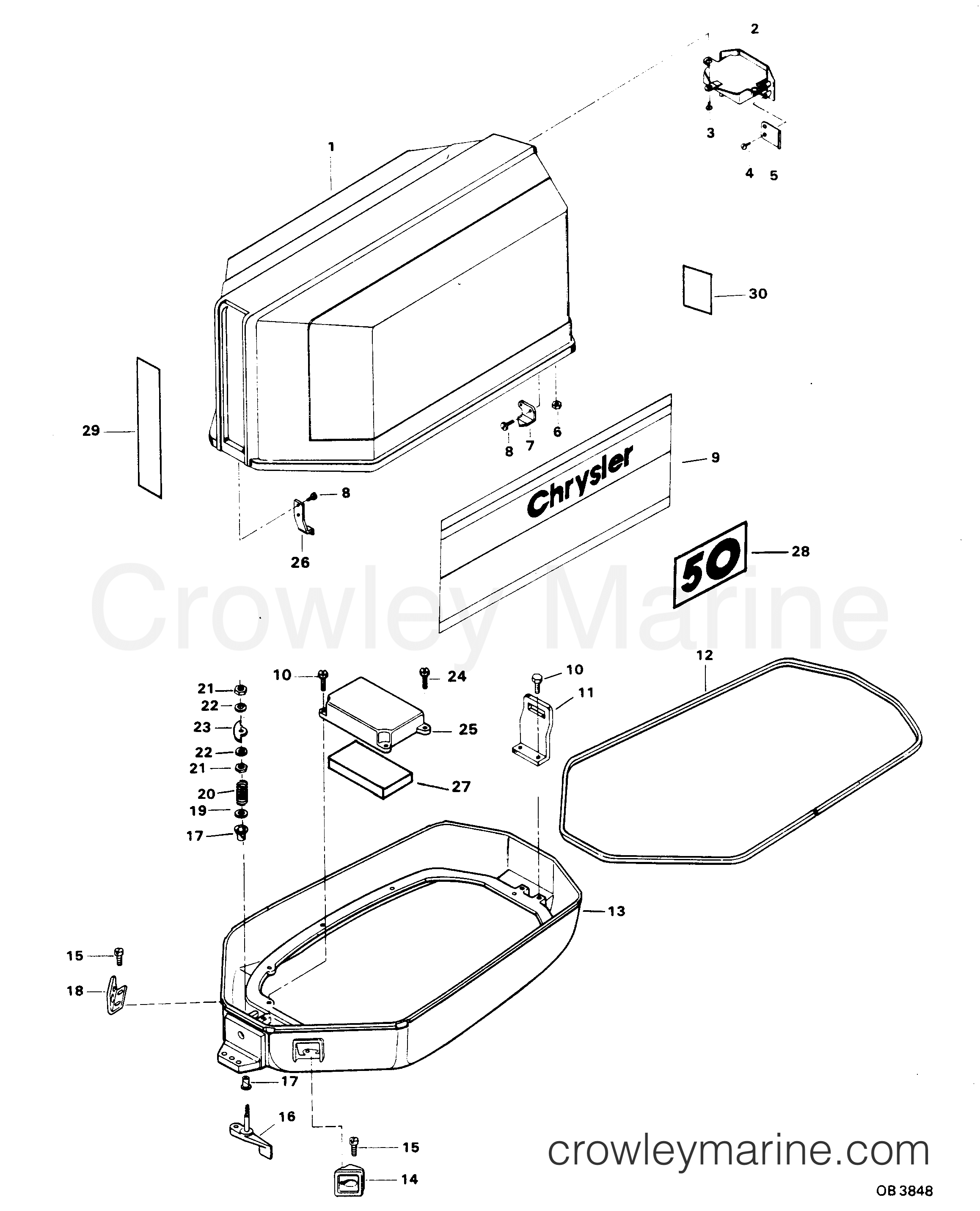

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

MFG NOTE: 507H2C, 507B2C, 507H3D, 507B3D<br />TO OBTAIN IDENTIFICATION PLATE, CALL OR WRITE TO: (414) 673-2200<br />CHRYSLER MARINE, 105 N. MARINE DRIVE, HARTFORD, WISCONSIN 53027, ATTN: LITERATURE SUPERVISOR
1983 Chrysler Outboard 50 - 507H3D ENGINE COVER AND SUPPORT PLATE section
Use two fingers to zoom
and move the diagram
1983 Chrysler Outboard 50 - 507H3D - ENGINE COVER AND SUPPORT PLATE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
 -
486712 1

ENGINE COVER

ENGINE COVER
Notes: W/ILLUS. 6, 7, 8 AND 26
Leaves in 3-5 days
5+ Items in stock
Required: 1
-
 -
613712

ENGINE COVER COMPLETE.

ENGINE COVER COMPLETE.
Notes: INCLUDES ITEMS MARKED WITH AN ASTERISK (*). (507H2C, 507B2C) ORDER NUMERAL SEPARATE
Leaves in 3-5 days
5+ Items in stock
Required: 1
7
 -
458480

ENGINE COVER RETAINER

ENGINE COVER RETAINER
Notes: W/ILLUS. 6 AND 8
Leaves in 3-5 days
5+ Items in stock
Required: 1
9
 -
605396

DECAL, ENGINE COVER ST'BD

DECAL, ENGINE COVER ST'BD
Notes: W/LITERATURE (507H2C, 507B2C)
Leaves in 3-5 days
5+ Items in stock
Required: 1
-
 -
606396

DECAL, ENGINE COVER ST'BD

DECAL, ENGINE COVER ST'BD
Notes: W/LITERATURE (507H3D, 507B3D)
Leaves in 3-5 days
5+ Items in stock
Required: 1
-
 -
605397

DECAL, ENGINE COVER PORT

DECAL, ENGINE COVER PORT
Notes: W/LITERATURE (507H2C, 507B2C)
Leaves in 3-5 days
5+ Items in stock
Required: 1
-
 -
606397

DECAL, ENGINE COVER PORT

DECAL, ENGINE COVER PORT
Notes: W/LITERATURE (507H3D, 507B3D)
Leaves in 3-5 days
5+ Items in stock
Required: 1
25
 -
307779

BAFFLE, AIR INTAKE

BAFFLE, AIR INTAKE
Notes: W/ILLUS. 27
Leaves in 3-5 days
5+ Items in stock
Required: 1
26
 -
366778

ENGINE COVER RETAINER FORWARD

ENGINE COVER RETAINER FORWARD
Notes: W/ILLUS. 6 AND 8
Leaves in 3-5 days
5+ Items in stock
Required: 1
28
 -
613386

DECAL, NUMERAL 50

DECAL, NUMERAL 50
Leaves in 3-5 days
5+ Items in stock
Required: 2
29
 -
604892

DECAL, ENGINE COVER FRONT

DECAL, ENGINE COVER FRONT
Notes: W/LITERATURE (507H3D, 507B3D)
Leaves in 3-5 days
5+ Items in stock
Required: 1
30
 -
606528

DECAL, ENGINE COVER REAR

DECAL, ENGINE COVER REAR
Notes: W/LITERATURE (507H3D, 507B3D)
Leaves in 3-5 days
5+ Items in stock
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
