AB Rotax Powertrains 150 - 440017ABA

CYLINDER HEAD section

Change Section

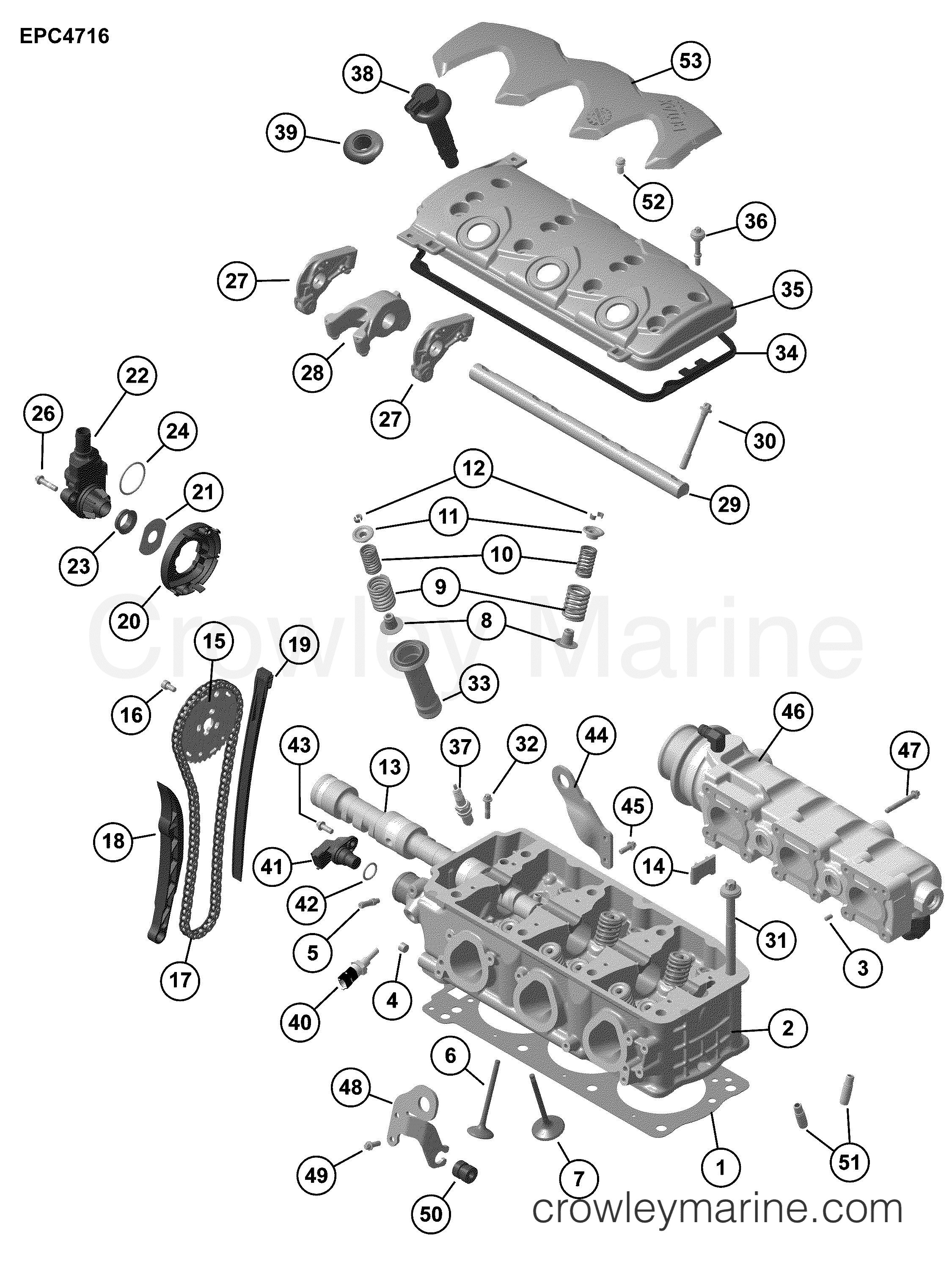

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

AB Rotax Powertrains 150 - 440017ABA CYLINDER HEAD section
Use two fingers to zoom
and move the diagram
AB Rotax Powertrains 150 - 440017ABA - CYLINDER HEAD section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
0460431 - Cylinder Head Assembly
0460431
0460431 ← 0460431

CYLINDER HEAD ASSEMBLY

CYLINDER HEAD ASSEMBLY
$1,009.00
You save $253.47. $1,262.47
Leaves in 3-5 days
Required: 1
3
0460565 - Drive Pin 5 X 10
0460565
0460565 ← 0460565

*DRIVE PIN 5 X 10

*DRIVE PIN 5 X 10
$1.25
You save 5%. $1.32
Leaves in 3-5 days
Required: 2
4
0460461 - Plug Screw M10 X 1
0460461
0460461 ← 0460461

*PLUG SCREW M10 X 1

*PLUG SCREW M10 X 1
$9.95
You save 9%. $10.90
Leaves in 3-5 days
Required: 1
5
0460560 - Hose Nipple
0460560
0460560 ← 0460560

*HOSE NIPPLE

*HOSE NIPPLE
$11.16
You save 5%. $11.75
Leaves in 3-5 days
Required: 1
6
0460415 - 31 mm EXHAUST VALVE
0460415
0460415 ← 0460415

EXHAUST VALVE, 31 MM

EXHAUST VALVE, 31 MM
$78.35
You save $4.12. $82.47
Leaves in 3-5 days
Required: 6
7
0460411 - Intake Valve 38 mm
0460411
0460411 ← 0460411

INTAKE VALVE, 38 MM

INTAKE VALVE, 38 MM
$29.95
You save $2.52. $32.47
Leaves in 3-5 days
Required: 6
9
0460403 - Valve Spring
0460403
0460403 ← 0460403

VALVE SPRING

VALVE SPRING
$11.95
You save 5%. $12.58
Leaves in 3-5 days
Required: 12
11
0460410 - Valve Spring Retainer
0460410
0460410 ← 0460410

VALVE SPRING RETAINER

VALVE SPRING RETAINER
$6.37
You save 5%. $6.70
Leaves in 3-5 days
Required: 12
12
0460408 - Valve Cotter
0460408
0460408 ← 0460408

VALVE COTTER

VALVE COTTER
$5.78
$5.78
Leaves in 3-5 days
Required: 24
16
0460500 - Screw (M6 x 12)
0460500
0460500 ← 0460500

SCREW M6 X 12

SCREW M6 X 12
$3.16
You save 5%. $3.33
Leaves in 3-5 days
Required: 3
18
0460402 - Chain Tension Guide
0460402
0460402 ← 0460402

CHAIN TENSION GUIDE

CHAIN TENSION GUIDE
$11.95
You save 5%. $12.58
Leaves in 3-5 days
Required: 1
19
0460401 - CHAIN GUIDE
0460401
0460401 ← 0460401

CHAIN GUIDE

CHAIN GUIDE
$9.95
You save 9%. $10.90
Leaves in 3-5 days
Required: 1
20
0460467 - Cover
0460467
0460467 ← 0460467

COVER

COVER
$16.60
You save 5%. $17.47
Leaves in 3-5 days
Required: 1
21
0460433 - Thrust Washer (200/250 Engines Only)
0460433
0460433 ← 0460433

THRUST WASHER

THRUST WASHER
$5.78
$5.78
Leaves in 3-5 days
Required: 1
27
0460414 - Rocker Arm Assembly (Exhaust)
0460414
0460414 ← 0460414

ROCKER ARM, EXHAUST

ROCKER ARM, EXHAUST
$103.67
You save $5.46. $109.13
Leaves in 3-5 days
Required: 6
28
0460413 - Inner Rocker Arm
0460413
0460413 ← 0460413

ROCKER ARM, INLET

ROCKER ARM, INLET
$129.95
You save $7.52. $137.47
Leaves in 3-5 days
Required: 3
29
0460522 - Shaft Rocker Arm
0460522
0460522 ← 0460522

ROCKER ARM, SHAFT

ROCKER ARM, SHAFT
$149.97
You save $10.00. $159.97
Leaves in 3-5 days
Required: 1
33
0460518 - Spark Plug Pipe
0460518
0460518 ← 0460518

SPARK PLUG PIPE

SPARK PLUG PIPE
$21.35
You save $1.12. $22.47
Leaves in 3-5 days
Required: 3
35
0460480 - VALVE COVER
0460480
0460480 ← 0460480

VALVE COVER

VALVE COVER
$98.92
You save $5.21. $104.13
Leaves in 3-5 days
Required: 1
38
0460679 - Ignition Coil
0460679
0460679 ← 0460679

STICK COIL

STICK COIL
$108.42
You save $5.71. $114.13
Leaves in 3-5 days
Required: 3
39
0460428 - Sealing Cup
0460428
0460428 ← 0460428

SEALING CUP

SEALING CUP
$14.95
You save 6%. $15.95
Leaves in 3-5 days
Required: 3
42
0460442 - O-Ring
0460442
0460442 ← 0460442

*O-RING

*O-RING
$3.96
You save 5%. $4.17
Leaves in 3-5 days
Required: 1
44
0460510 - Transport Bracket PTO
0460510
0460510 ← 0460510

TRANSPORT BRACKET PTO

TRANSPORT BRACKET PTO
$17.39
You save 5%. $18.30
Leaves in 3-5 days
Required: 1
46
0461005 - Exhaust Manifold
0461005
0461005 ← 0461005

EXHAUST MANIFOLD

EXHAUST MANIFOLD
$272.55
You save $14.34. $286.89
Leaves in 3-5 days
Required: 1
50
0460468 - Rubber Bracket
0460468
0460468 ← 0460468

RUBBER BRACKET

RUBBER BRACKET
$3.01
You save 5%. $3.17
Leaves in 3-5 days
Required: 1
51
0460409 - Valve Guide
0460409
0460409 ← 0460409

VALVE GUIDE

VALVE GUIDE
$33.22
You save $1.75. $34.97
Leaves in 3-5 days
Required: 12
53
0461024 - Cover
0461024
0461024 ← 0461024

COVER

COVER
$41.14
You save $2.16. $43.30
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
