2010 Evinrude Outboards 40 - E40DPLISF

ELECTRICAL HARNESS section

Change Section

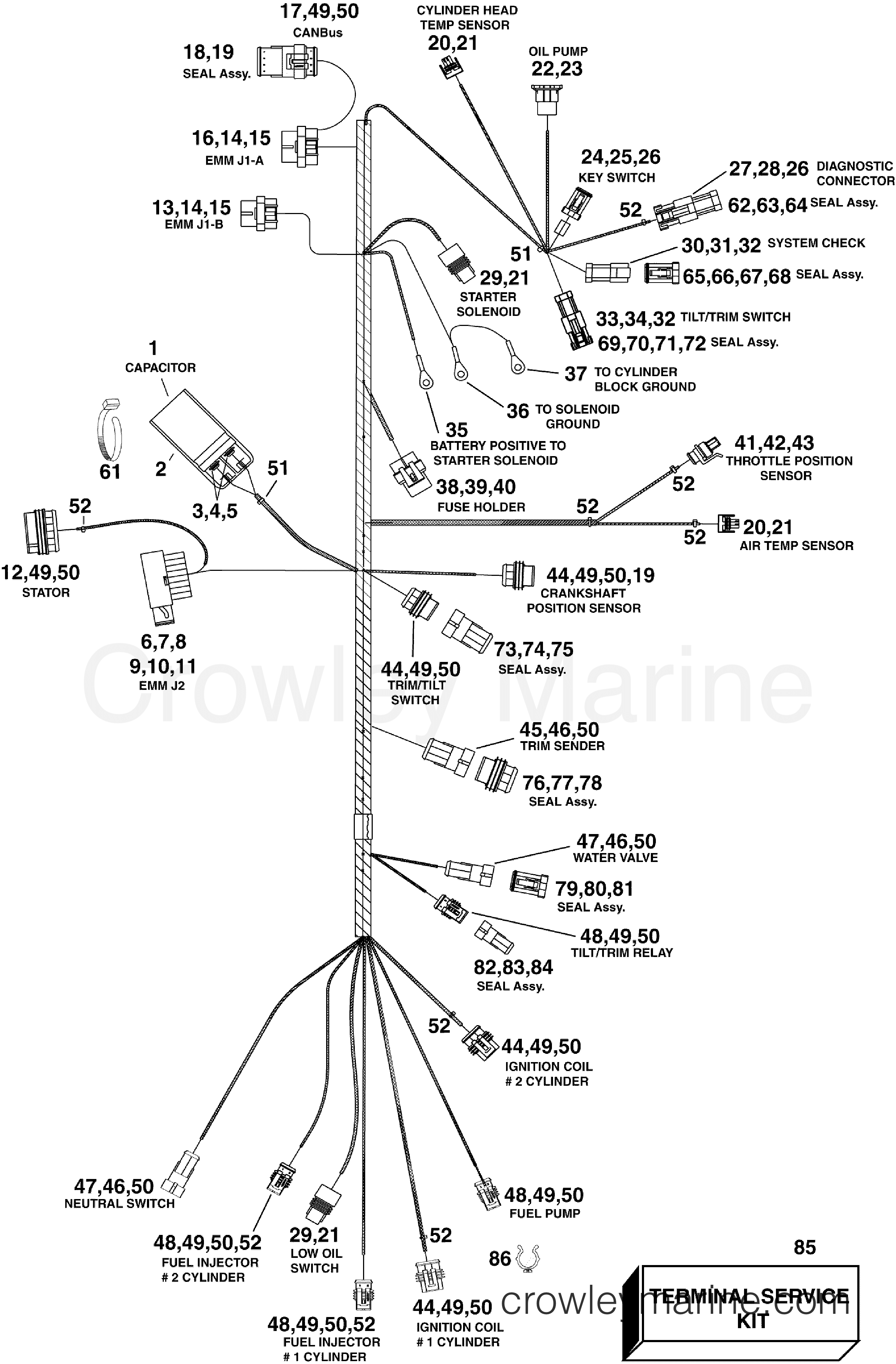

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2010 Evinrude Outboards 40 - E40DPLISF ELECTRICAL HARNESS section
Use two fingers to zoom
and move the diagram
2010 Evinrude Outboards 40 - E40DPLISF - ELECTRICAL HARNESS section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

-
 -
← 0587050

ENGINE HARNESS ASSEMBLY

ENGINE HARNESS ASSEMBLY
Leaves in 3-5 days
5+ Items in stock
Required: 1
1
3010449 - Capacitor
3010449
3010449 ← 3010449

*CAPACITOR

*CAPACITOR
$134.95
You save $9.05. $144.00
Leaves in 3-5 days
Required: 1
2
0514889 - Capacitor Cover
0514889
0514889 ← 0514889

*COVER

*COVER
$19.95
$20.00
Leaves in 3-5 days
Required: 1
3
0512550 - Terminal Ring
0512550
0512550 ← 0512550

*TERMINAL, RING-#10

*TERMINAL, RING-#10
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 2
4
0332067 - Screw
0332067
0332067 ← 0332067

*SCREW

*SCREW
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
7
3011166 - Terminal - 14 Ga
3011166
3011166 ← 3011166

*TERMINAL - 14 GAUGE

*TERMINAL - 14 GAUGE
$5.99
You save 14%. $7.00
Ships Immediately
1 Items in stock
Required: 3
8
3011350 - Wire Seal
3011350
3011350 ← 3011350

*SEAL,WIRE-12 GAUGE

*SEAL,WIRE-12 GAUGE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 3
9
3011174 - Terminal - 18 Ga
3011174
3011174 ← 3011174

*TERMINAL - 18 GAUGE

*TERMINAL - 18 GAUGE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 11
11
3011168 - Plug Cavity
3011168
3011168 ← 3011168

*PLUG, SEALING

*PLUG, SEALING
$2.14
You save 5%. $2.25
Leaves in 3-5 days
Required: 2
19
3011150 - Cavity Plug
3011150
3011150 ← 3011150

*PLUG, SEALING

*PLUG, SEALING
$4.75
$4.75
Leaves in 3-5 days
Required: 5
23
0514583 - Terminal
0514583
0514583 ← 0514583

*TERMINAL

*TERMINAL
$4.69
$4.69
Leaves in 3-5 days
Required: 2
38
3011258 - Connector
3011258
3011258 ← 3011258

*CONNECTOR, FUSE

*CONNECTOR, FUSE
$9.50
$9.50
Leaves in 3-5 days
Required: 1
43
3011447 - Wire Seal
3011447
3011447 ← 3011447

*SEAL, WIRE

*SEAL, WIRE
$2.18
You save 5%. $2.29
Leaves in 3-5 days
Required: 3
46
3011148 - Trim Switch Contact
3011148
3011148 ← 3011148

*CONTACT, MALE - TAB

*CONTACT, MALE - TAB
Notes: Included in accessory Terminal Service Kit, P/N 777283
$4.99
You save 13%. $5.75
Ships Immediately
4 Items in stock
Required: 7
64
0514690 - Sealing Plug
0514690
0514690 ← 0514690

*PLUG, SEALING

*PLUG, SEALING
$9.50
$9.50
Leaves in 3-5 days
Required: 3
65
0586076 - Connector & Seal Assembly
0586076
0586076 ← 0586076

SEAL ASSEMBLY, SYSTEM CHECK

SEAL ASSEMBLY, SYSTEM CHECK
Notes: DR Models
$19.95
You save $1.05. $21.00
Leaves in 3-5 days
Required: 1
68
0514690 - Sealing Plug
0514690
0514690 ← 0514690

*SEAL, PLUG

*SEAL, PLUG
$9.50
$9.50
Leaves in 3-5 days
Required: 6
72
0514690 - Sealing Plug
0514690
0514690 ← 0514690

*SEAL, PLUG

*SEAL, PLUG
$9.50
$9.50
Leaves in 3-5 days
Required: 3
73
0586811 - Connector & Seal Assembly
0586811
0586811 ← 0586811

SEAL ASSEMBLY, TRIM & TILT

SEAL ASSEMBLY, TRIM & TILT
Notes: DR Models
$13.54
You save 5%. $14.25
Leaves in 3-5 days
Required: 1
74
3011150 - Cavity Plug
3011150
3011150 ← 3011150

*PLUG, SEALING

*PLUG, SEALING
$4.75
$4.75
Leaves in 3-5 days
Required: 3
77
3011150 - Cavity Plug
3011150
3011150 ← 3011150

*PLUG, SEALING

*PLUG, SEALING
$4.75
$4.75
Leaves in 3-5 days
Required: 3
78
3011155 - Superseal 1.5 Plug Connector Connector, 3 Terminal
3011155
3011155 ← 3011155

*CONNECTOR, 3 POSITION CAP

*CONNECTOR, 3 POSITION CAP
$7.99
You save 9%. $8.75
Ships Immediately
4 Items in stock
Required: 1
81
3011150 - Cavity Plug
3011150
3011150 ← 3011150

*PLUG, SEALING

*PLUG, SEALING
$4.75
$4.75
Leaves in 3-5 days
Required: 2
83
3011150 - Cavity Plug
3011150
3011150 ← 3011150

*PLUG, SEALING

*PLUG, SEALING
$4.75
$4.75
Leaves in 3-5 days
Required: 2
