2010 Evinrude Outboards 250 - DE250CXISF

GEARCASE section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2010 Evinrude Outboards 250 - DE250CXISF GEARCASE section
Use two fingers to zoom
and move the diagram

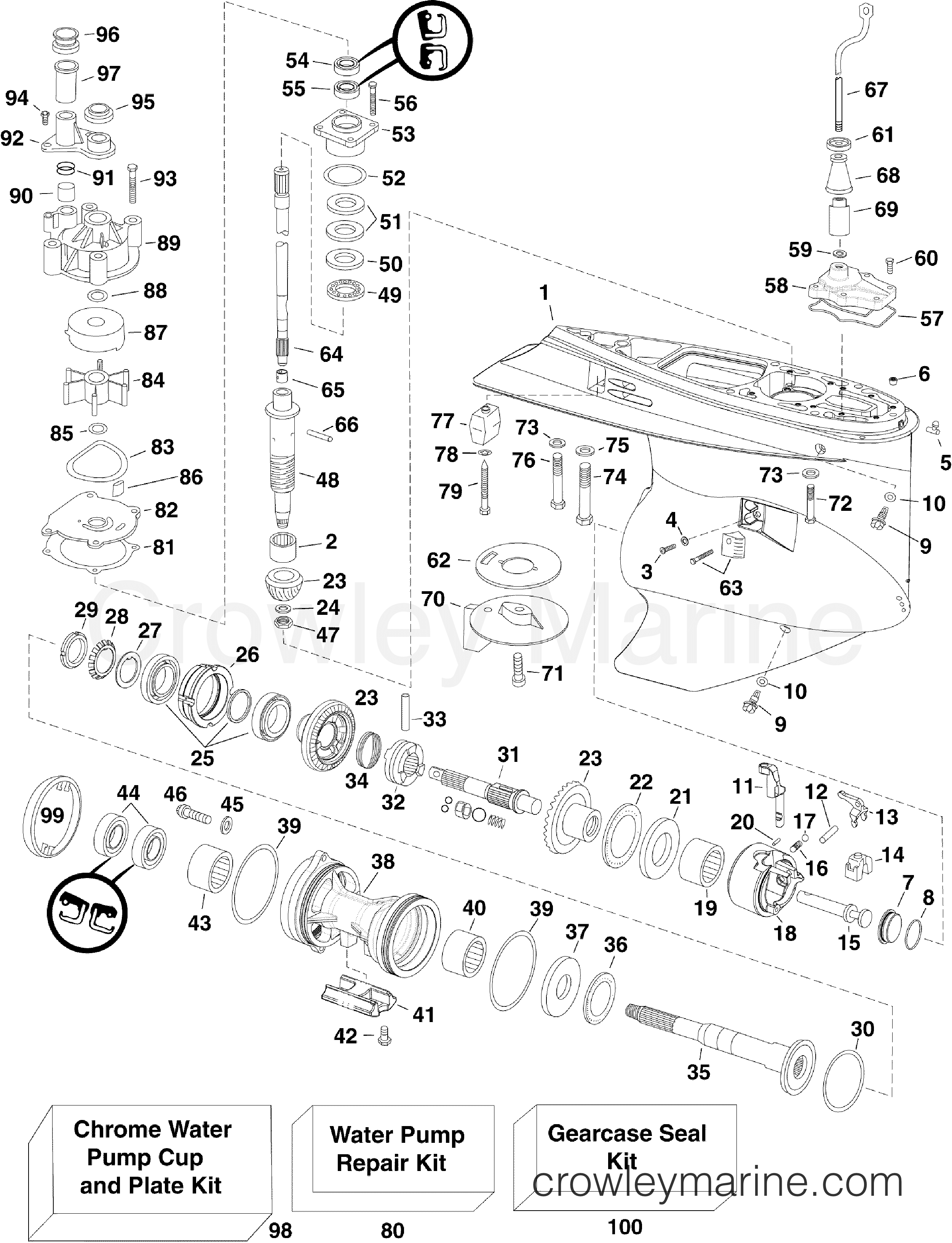

2010 Evinrude Outboards 250 - DE250CXISF - GEARCASE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

6
0321164 - Adapter Plug, port & Starboard
0321164
0321164 ← 0321164

**SCREW, PITOT SEAL

**SCREW, PITOT SEAL
$12.99
You save 12%. $14.75
Ships Immediately
3 Items in stock
Required: 1
7
5007386 - Plug & O-Ring Assembly
5007386
5007386 ← 5007386

**PLUG, GEARCASE

**PLUG, GEARCASE
$31.11
You save $1.64. $32.75
Leaves in 3-5 days
Required: 1
11
0353375 - Detent
0353375
0353375 ← 0353375

*DETENT, SHIFT

*DETENT, SHIFT
$89.95
You save $5.55. $95.50
Leaves in 3-5 days
Required: 1
12
0353973 - Dowel Pin
0353973
0353973 ← 0353973

*PIN, SHIFT LEVER

*PIN, SHIFT LEVER
$9.95
You save 13%. $11.50
Leaves in 3-5 days
Required: 1
13
0334160 - Shifter Lever
0334160
0334160 ← 0334160

*LEVER, SHIFT

*LEVER, SHIFT
$78.85
You save $4.15. $83.00
Leaves in 3-5 days
Required: 1
15
0348484 - Shifter Shaft
0348484
0348484 ← 0348484

*SHAFT, SHIFT

*SHAFT, SHIFT
$69.95
You save $3.55. $73.50
Leaves in 3-5 days
Required: 1
20
0353338 - Pin
0353338
0353338 ← 0353338

**PIN, HOUSING

**PIN, HOUSING
$5.75
$5.75
Leaves in 3-5 days
Required: 1
27
0353551 - Thrust Washer
0353551
0353551 ← 0353551

**THRUST WASHER

**THRUST WASHER
$44.95
You save $2.55. $47.50
Leaves in 3-5 days
Required: 1
28
0353336 - Lock Washer
0353336
0353336 ← 0353336

**WASHER, LOCK

**WASHER, LOCK
$16.15
You save 5%. $17.00
Leaves in 3-5 days
Required: 1
29
0353096 - Spanner Nut
0353096
0353096 ← 0353096

**NUT, SPANNER

**NUT, SPANNER
$63.41
You save $3.34. $66.75
Leaves in 3-5 days
Required: 1
31
5007404 - Clutch Shaft Assembly
5007404
5007404 ← 5007404

*CLUTCH SHAFT ASSEMBLY

*CLUTCH SHAFT ASSEMBLY
$279.95
You save $15.55. $295.50
Leaves in 3-5 days
Required: 1
35
5007360 - Propeller Shaft Assembly
5007360
5007360 ← 5007360

*PROPELLER SHAFT

*PROPELLER SHAFT
$383.80
You save $20.20. $404.00
Leaves in 3-5 days
Required: 1
39
0911700 - O-Ring
0911700
0911700 ← 0911700

**O-RING, PROPSHAFT SHAFT HOUSING

**O-RING, PROPSHAFT SHAFT HOUSING
Notes: (Contents of GEARCASE SEAL KIT.)
$6.99
You save 14%. $8.09
Ships Immediately
5+ Items in stock
Required: 2
44
0334950 - Propeller Shaft Seal
0334950
0334950 ← 0334950

**SEAL, PROPSHAFT

**SEAL, PROPSHAFT
Notes: (Contents of GEARCASE SEAL KIT.)
$14.95
You save 18%. $18.29
Ships Immediately
5+ Items in stock
Required: 2
55
0329923 - Driveshaft Oil Seal (Lower)
0329923
0329923 ← 0329923

**SEAL, LOWER

**SEAL, LOWER
Notes: (Contents of GEARCASE SEAL KIT.)
$9.99
You save 11%. $11.19
Ships Immediately
5+ Items in stock
Required: 1
57
0353162 - Seal
0353162
0353162 ← 0353162

*SEAL, SHIFT ROD COVER

*SEAL, SHIFT ROD COVER
Notes: (Contents of GEARCASE SEAL KIT.)
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
58
5007367 - Shift Rod Cover Assembly
5007367
5007367 ← 5007367

*COVER, SHIFT ROD

*COVER, SHIFT ROD
$72.68
You save $3.82. $76.50
Leaves in 3-5 days
Required: 1
60
0328725 - Screw
0328725
0328725 ← 0328725

*SCREW, SHIFT ROD COVER

*SCREW, SHIFT ROD COVER
$5.95
You save 8%. $6.50
Ships Immediately
5+ Items in stock
Required: 6
67
0347301 - Shift Rod 25"
0347301
0347301 ← 0347301

SHIFT ROD - 25"

SHIFT ROD - 25"
$87.88
You save $4.62. $92.50
Leaves in 3-5 days
Required: 1
67
0347391 - Shift Rod 30" Mag
0347391
0347391 ← 0347391

SHIFT ROD - 30"

SHIFT ROD - 30"
$63.99
You save $27.26. $91.25
Ships Immediately
1 Items in stock
Required: 1
91
 -
← 0346865

*O-RING, WATER TUBE

*O-RING, WATER TUBE
Notes: 3.4 L Models
Leaves in 3-5 days
5+ Items in stock
Required: 4
92
0354578 - Impeller Housing Cover
0354578
0354578 ← 0354578

*COVER, IMPELLER HOUSING

*COVER, IMPELLER HOUSING
Notes: 3.4 L Models
$6.26
You save 5%. $6.59
Leaves in 3-5 days
Required: 1
92
0338893 - Impeller Housing Cover
0338893
0338893 ← 0338893

*COVER, IMPELLER HOUSING

*COVER, IMPELLER HOUSING
Notes: 3.3 L Models
$7.99
You save 12%. $9.09
Ships Immediately
3 Items in stock
Required: 1
97
0354580 - Sleeve
0354580
0354580 ← 0354580

*SLEEVE, EXTENSION - 25"

*SLEEVE, EXTENSION - 25"
$11.99
You save 6%. $12.75
Ships Immediately
1 Items in stock
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
