2010 Evinrude Outboards 250 - DE250CXISF

CYLINDER & CRANKCASE section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

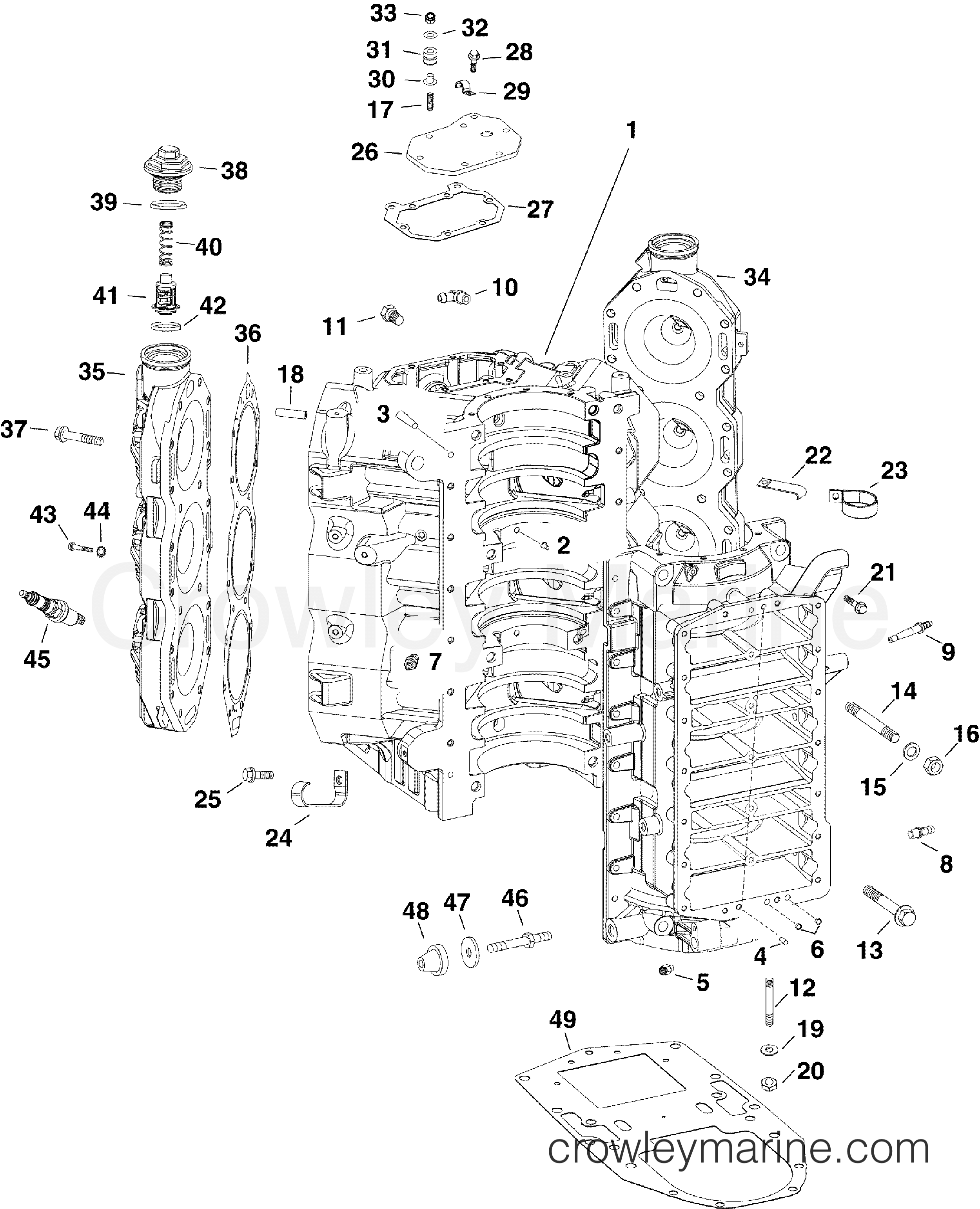

2010 Evinrude Outboards 250 - DE250CXISF CYLINDER & CRANKCASE section
Use two fingers to zoom
and move the diagram
2010 Evinrude Outboards 250 - DE250CXISF - CYLINDER & CRANKCASE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
0331095 - Taper Pin
0331095
0331095 ← 0331095

*PIN, C/C TAPER

*PIN, C/C TAPER
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
7
5000477 - Check Valve Assembly
5000477
5000477 ← 5000477

*CHECK VALVE, TRANSFER PORT DRAIN

*CHECK VALVE, TRANSFER PORT DRAIN
Notes: See "Recirculation Hoses"
$23.99
You save $1.26. $25.25
Leaves in 3-5 days
Required: 6
NS
0348478 - Check Valve
0348478
0348478 ← 0348478

*CHECK VALVE, RECIRCULATION HOSE

*CHECK VALVE, RECIRCULATION HOSE
Notes: See "Recirculation Hoses"
$44.99
You save $4.30. $49.29
Ships Immediately
2 Items in stock
Required: 1
NS
0772569 - 3/32" Drain Hose
0772569
0772569 ← 0772569

*HOSE, RECIRCULATION (BULK HOSE)

*HOSE, RECIRCULATION (BULK HOSE)
Notes: See "Recirculation Hoses"
$3.99
You save 6%. $4.25
Ships Immediately
5+ Items in stock
Required: 3
12
0314616 - Stud
0314616
0314616 ← 0314616

*STUD

*STUD
$18.99
You save 10%. $21.00
Ships Immediately
5+ Items in stock
Required: 2
13
0914024 - Screw
0914024
0914024 ← 0914024

*SCREW, C/C TO BLOCK

*SCREW, C/C TO BLOCK
$11.40
You save 5%. $12.00
Leaves in 3-5 days
Required: 6
14
0348843 - Stud
0348843
0348843 ← 0348843

*STUD, C/C TO BLOCK

*STUD, C/C TO BLOCK
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 2
18
0346237 - Dam Water Cylinder Assembly
0346237
0346237 ← 0346237

*DAM, C/C WATER

*DAM, C/C WATER
$11.16
You save 5%. $11.75
Leaves in 3-5 days
Required: 6
22
0316487 - Retainer
0316487
0316487 ← 0316487

RETAINER, HARNESS

RETAINER, HARNESS
$9.50
$9.50
Ships Immediately
3 Items in stock
Required: 2
26
0347318 - Cover
0347318
0347318 ← 0347318

COVER, WATER

COVER, WATER
$43.23
You save $2.27. $45.50
Leaves in 3-5 days
Required: 1
27
0344472 - Rectifier & regulator To Cylinder block Gasket
0344472
0344472 ← 0344472

GASKET, WATER COVER

GASKET, WATER COVER
Notes: Included in Cyl/Crankcase Gasket & Seal Kit
$5.99
You save 13%. $6.89
Ships Immediately
1 Items in stock
Required: 1
30
0338558 - Flanged Spacer
0338558
0338558 ← 0338558

SPACER FLANGED

SPACER FLANGED
$11.16
You save 5%. $11.75
Leaves in 3-5 days
Required: 2
33
0313022 - Lock Nut
0313022
0313022 ← 0313022

NUT, STUD

NUT, STUD
$7.99
You save 11%. $9.00
Ships Immediately
4 Items in stock
Required: 2
NS
0352881 - Pin
0352881
0352881 ← 0352881

*PIN, FUEL DEFLECTOR

*PIN, FUEL DEFLECTOR
$12.99
You save 31%. $18.79
Ships Immediately
1 Items in stock
Required: 3
36
0346007 - V6 Cylinder Head Gasket
0346007
0346007 ← 0346007

GASKET, CYLINDER HEAD

GASKET, CYLINDER HEAD
Notes: Included in Cyl/Crankcase Gasket & Seal Kit
$54.95
You save $4.34. $59.29
Leaves in 3-5 days
Required: 2
37
0352913 - Screw
0352913
0352913 ← 0352913

BOLT, CYLINDER HEAD

BOLT, CYLINDER HEAD
$12.99
You save 28%. $18.00
Ships Immediately
2 Items in stock
Required: 40
46
0329743 - Stud
0329743
0329743 ← 0329743

STUD, COVER MOUNT

STUD, COVER MOUNT
$23.04
You save $1.21. $24.25
Leaves in 3-5 days
Required: 2

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
