2010 Evinrude Outboards 250 - DE250CXISF

INTAKE MANIFOLD ASSEMBLY section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

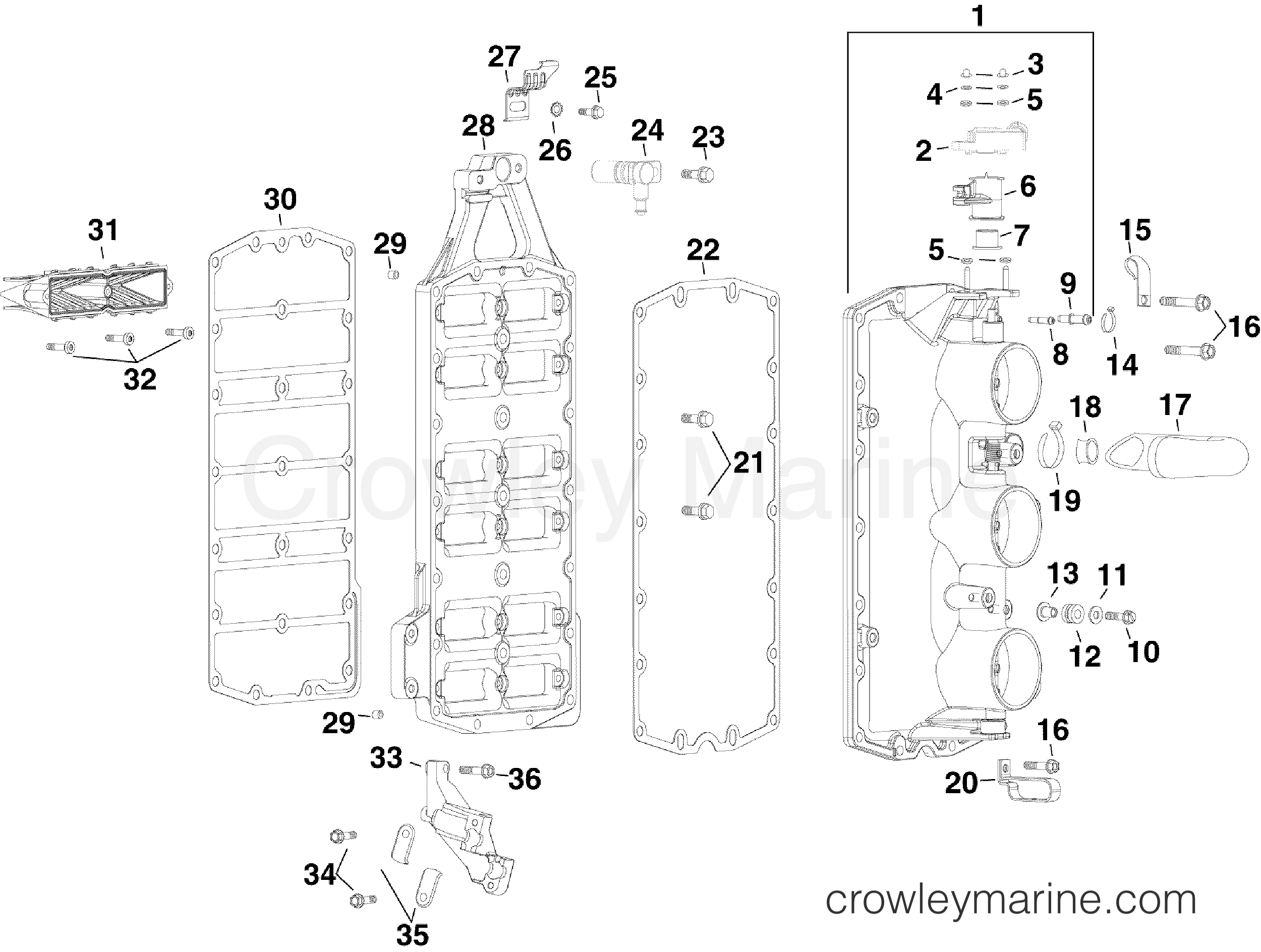

2010 Evinrude Outboards 250 - DE250CXISF INTAKE MANIFOLD ASSEMBLY section
Use two fingers to zoom
and move the diagram
2010 Evinrude Outboards 250 - DE250CXISF - INTAKE MANIFOLD ASSEMBLY section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
5006484 - Throttle position (TPS) Sensor
5006484
5006484 ← 5006484

*SENSOR, TPS

*SENSOR, TPS
Notes: (See "EMM, SENSORS, IGNITION..")
$84.95
You save $15.30. $100.25
Ships Immediately
5+ Items in stock
Required: 1
10
0333710 - Screw
0333710
0333710 ← 0333710

*SCREW, FUEL PUMP BRACKET

*SCREW, FUEL PUMP BRACKET
$7.99
You save 6%. $8.50
Ships Immediately
2 Items in stock
Required: 2
13
0338558 - Flanged Spacer
0338558
0338558 ← 0338558

*SPACER

*SPACER
$11.16
You save 5%. $11.75
Leaves in 3-5 days
Required: 2
22
0350933 - Throttle body to reed Plate Gasket
0350933
0350933 ← 0350933

GASKET, THROTTLE BODY TO REED PLATE

GASKET, THROTTLE BODY TO REED PLATE
Notes: Included in Cyl/Crankcase Gasket & Seal Kit
$18.99
You save 10%. $21.00
Ships Immediately
1 Items in stock
Required: 1
27
0350927 - Timing Pointer
0350927
0350927 ← 0350927

TIMING POINTER

TIMING POINTER
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
30
0350934 - Gasket
0350934
0350934 ← 0350934

GASKET, REED PLATE TO C/C

GASKET, REED PLATE TO C/C
Notes: Included in Cyl/Crankcase Gasket & Seal Kit
$18.99
You save 10%. $21.00
Ships Immediately
1 Items in stock
Required: 1
31
5006208 - Reed Valve
5006208
5006208 ← 5006208

REED VALVE ASSEMBLY.

REED VALVE ASSEMBLY.
$109.95
You save $6.55. $116.50
Leaves in 3-5 days
Required: 6
33
0351927 - Trunnion Bracket
0351927
0351927 ← 0351927

TRUNNION BRACKET

TRUNNION BRACKET
$32.78
You save $1.72. $34.50
Leaves in 3-5 days
Required: 1
35
0351928 - Retainer
0351928
0351928 ← 0351928

CLAMP, TRUNNION CABLE

CLAMP, TRUNNION CABLE
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 2

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
