2010 Evinrude Outboards 150 - E150DBXISF

FLYWHEEL & STATOR section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

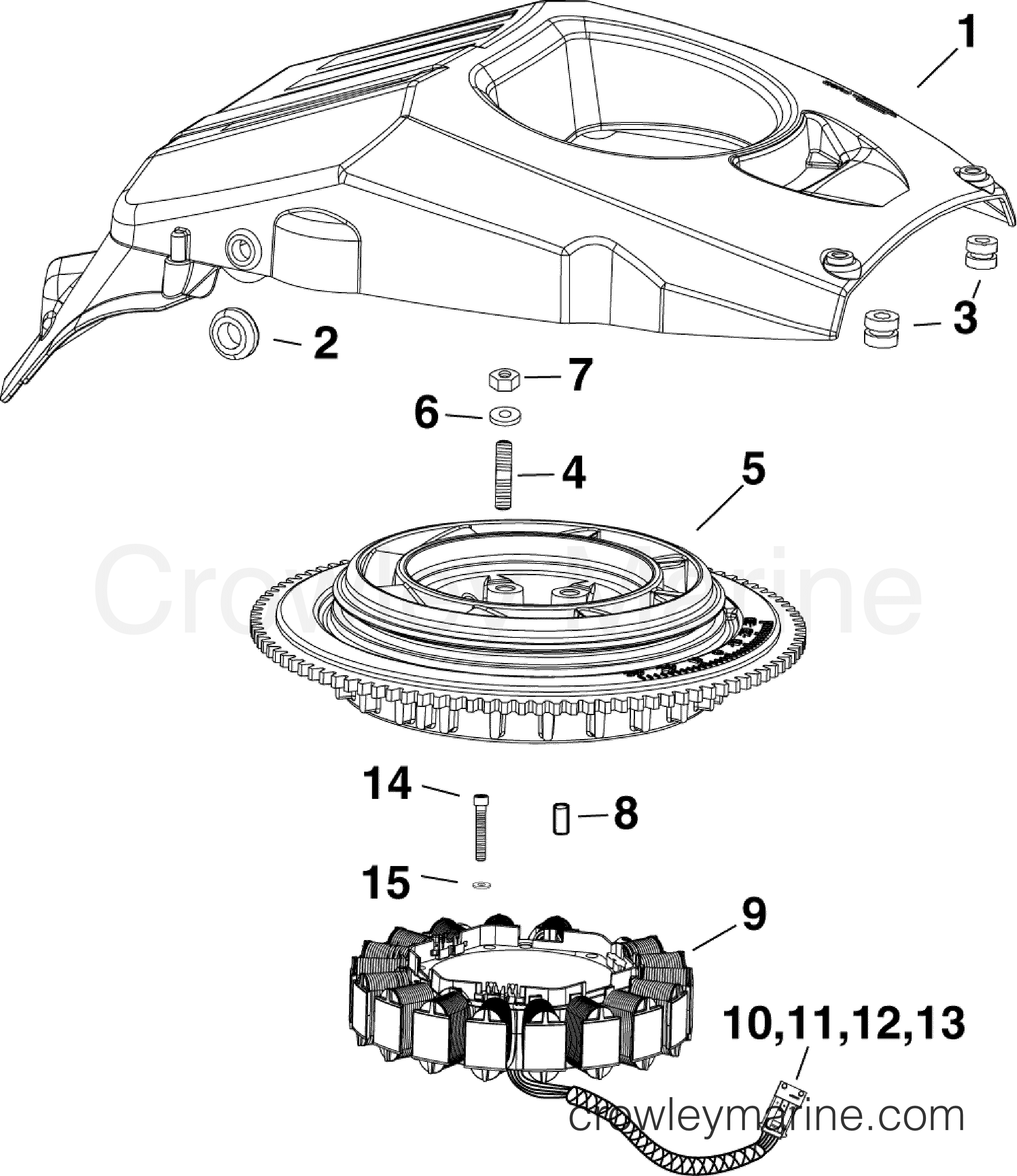

2010 Evinrude Outboards 150 - E150DBXISF FLYWHEEL & STATOR section
Use two fingers to zoom
and move the diagram
2010 Evinrude Outboards 150 - E150DBXISF - FLYWHEEL & STATOR section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

4
0352989 - Stud
0352989
0352989 ← 0352989

STUD, FLYWHEEL MOUNTING

STUD, FLYWHEEL MOUNTING
Notes: B, M, or R suffix
$27.99
You save $12.01. $40.00
Ships Immediately
4 Items in stock
Required: 5
4
0354069 - Flywheel mounting Stud
0354069
0354069 ← 0354069

STUD, FLYWHEEL MOUNTING

STUD, FLYWHEEL MOUNTING
Notes: F suffix
$3.33
You save 5%. $3.50
Leaves in 3-5 days
Required: 5
5
5007033 - Flywheel&Screw Assembly
5007033
5007033 ← 5007033

FLYWHEEL

FLYWHEEL
Notes: B, M, or R suffix
$770.00
You save $41.50. $811.50
Leaves in 3-5 days
Required: 1
5
 -
← 5007967

FLYWHEEL

FLYWHEEL
Notes: F suffix
Leaves in 3-5 days
5+ Items in stock
Required: 1
6
 -
← 0355192

*WASHER, FLYWHEEL MOUNTING

*WASHER, FLYWHEEL MOUNTING
Notes: F suffix
Leaves in 3-5 days
5+ Items in stock
Required: 5
7
0352990 - Flywheel Nut
0352990
0352990 ← 0352990

*NUT, FLYWHEEL

*NUT, FLYWHEEL
Notes: B, M, or R suffix
$4.75
$4.75
Leaves in 3-5 days
Required: 5
7
0320372 - Locknut
0320372
0320372 ← 0320372

*NUT, FLYWHEEL

*NUT, FLYWHEEL
Notes: F suffix
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 5
8
0306972 - Roll Pin
0306972
0306972 ← 0306972

ROLL PIN, FLYWHEEL

ROLL PIN, FLYWHEEL
Notes: B, M, or R suffix
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
8
 -
← 0354131

ROLL PIN, FLYWHEEL

ROLL PIN, FLYWHEEL
Notes: F suffix
Leaves in 3-5 days
5+ Items in stock
Required: 1
9
0586948 - Switcher Stator Assembly
0586948
0586948 ← 0586948

STATOR

STATOR
$304.99
You save $31.76. $336.75
Ships Immediately
1 Items in stock
Required: 1
10
3011401 - Pin Terminal
3011401
3011401 ← 3011401

*TERMINAL, PIN

*TERMINAL, PIN
$14.75
$14.75
Leaves in 3-5 days
Required: 6
11
3011167 - Wire Seal
3011167
3011167 ← 3011167

*SEAL, WIRE

*SEAL, WIRE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 6
12
3011392 - Junior Power Timer Tab Housing Connector, 6 Terminal
3011392
3011392 ← 3011392

*CONNECTOR

*CONNECTOR
$18.05
You save 5%. $19.00
Leaves in 3-5 days
Required: 1
13
3011393 - Seal
3011393
3011393 ← 3011393

*SEAL

*SEAL
$5.75
$5.75
Leaves in 3-5 days
Required: 1
14
0343525 - Stator mounting Screw
0343525
0343525 ← 0343525

SCREW, STATOR

SCREW, STATOR
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 6

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
