2010 Evinrude Outboards 40 - E40DPLISF

CYLINDER/CRANKCASE section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

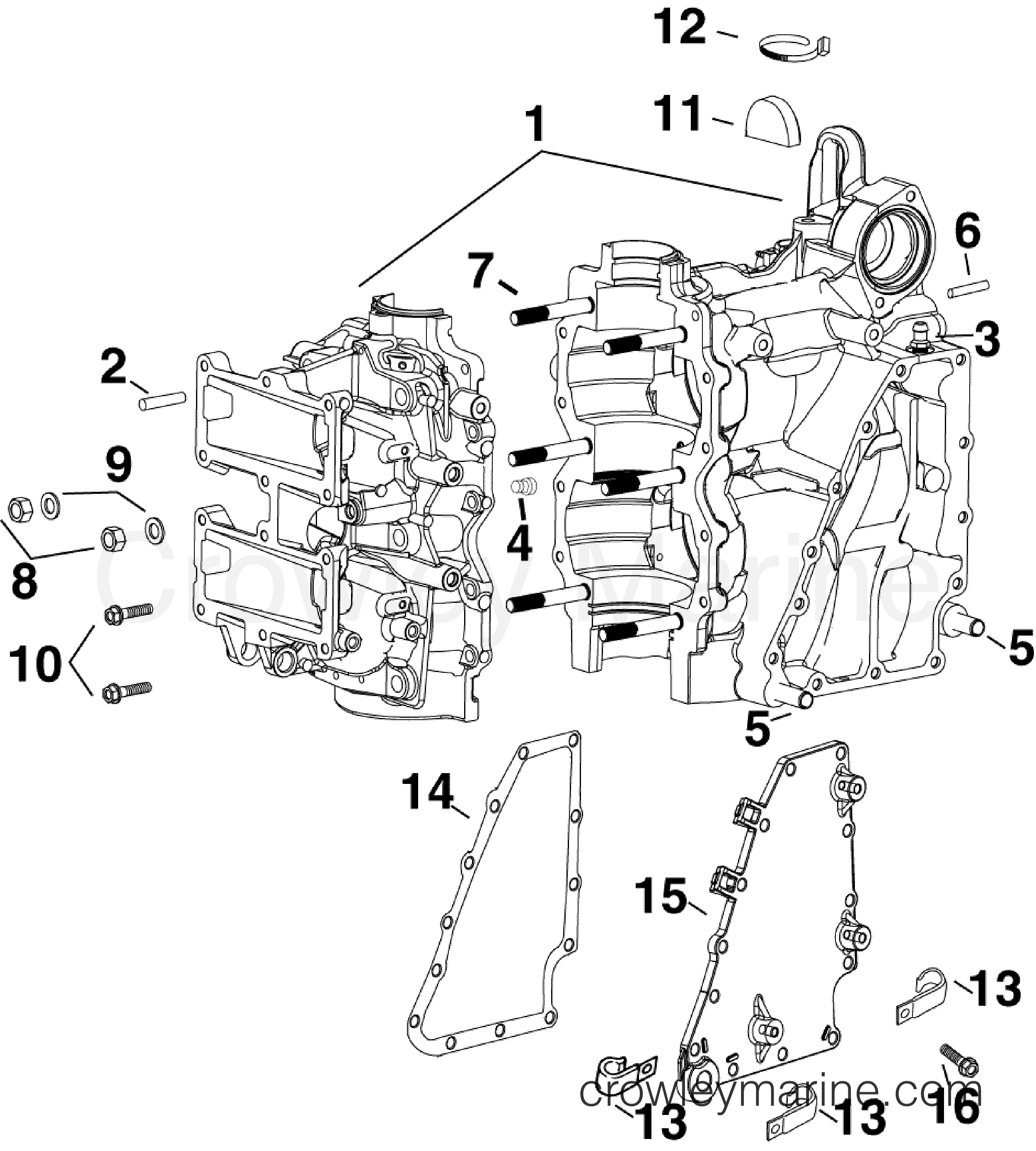

2010 Evinrude Outboards 40 - E40DPLISF CYLINDER/CRANKCASE section
Use two fingers to zoom
and move the diagram
2010 Evinrude Outboards 40 - E40DPLISF - CYLINDER/CRANKCASE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

8
0320372 - Locknut
0320372
0320372 ← 0320372

*NUT, C/C STUD

*NUT, C/C STUD
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 6
9
0306405 - Washer
0306405
0306405 ← 0306405

*WASHER, C/C STUD NUT

*WASHER, C/C STUD NUT
$3.99
You save 29%. $5.59
Ships Immediately
3 Items in stock
Required: 6
NS
0344821 - Nipple
0344821
0344821 ← 0344821

*FITTING, OIL INLET

*FITTING, OIL INLET
Notes: See "OIL RECIRCULATION SYSTEM"
$18.05
You save 5%. $19.00
Leaves in 3-5 days
Required: 2
NS
0346137 - Oil recirculation upper elbow Nipple
0346137
0346137 ← 0346137

*FITTING, OIL RECIRCULATION ELBOW

*FITTING, OIL RECIRCULATION ELBOW
Notes: See "OIL RECIRCULATION SYSTEM"
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 4
NS
0345854 - Fitting
0345854
0345854 ← 0345854

*FITTING, FUEL PULSE

*FITTING, FUEL PULSE
Notes: See "OIL RECIRCULATION SYSTEM"
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
11
0351329 - Vinyl Cap
0351329
0351329 ← 0351329

CAP, PROTECTIVE

CAP, PROTECTIVE
$3.09
You save 5%. $3.25
Leaves in 3-5 days
Required: 1
14
0350629 - Gasket
0350629
0350629 ← 0350629

GASKET, WATER COVER

GASKET, WATER COVER
$12.11
You save 5%. $12.75
Leaves in 3-5 days
Required: 1
15
0350628 - Cover
0350628
0350628 ← 0350628

WATER COVER

WATER COVER
$67.69
You save $3.56. $71.25
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
