2010 Evinrude Outboards 40 - E40DPLISF

INTAKE MANIFOLD ASSEMBLY section

Change Section

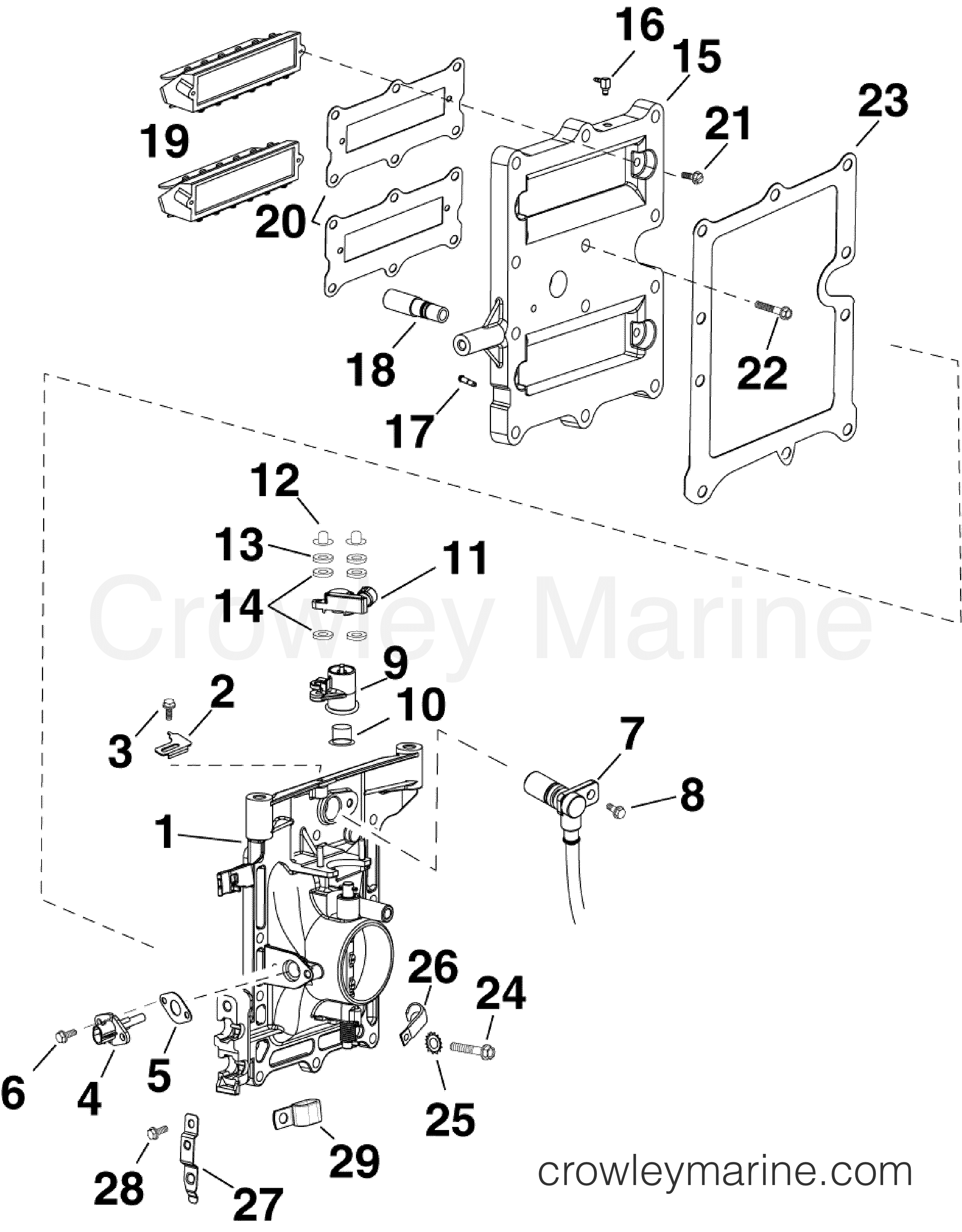

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2010 Evinrude Outboards 40 - E40DPLISF INTAKE MANIFOLD ASSEMBLY section
Use two fingers to zoom
and move the diagram
2010 Evinrude Outboards 40 - E40DPLISF - INTAKE MANIFOLD ASSEMBLY section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
0350649 - Timing Pointer
0350649
0350649 ← 0350649

*POINTER, TIMING

*POINTER, TIMING
$6.18
You save 5%. $6.50
Leaves in 3-5 days
Required: 1
9
5005188 - Throttle Lever
5005188
5005188 ← 5005188

THROTTLE LEVER

THROTTLE LEVER
$9.50
$9.50
Leaves in 3-5 days
Required: 1
15
5005279 - Reed Plate Assembly
5005279
5005279 ← 5005279

REED PLATE ASSEMBLY

REED PLATE ASSEMBLY
$224.95
You save $11.30. $236.25
Leaves in 3-5 days
Required: 1
19
0397336 - Reed Box
0397336
0397336 ← 0397336

REED VALVE ASSEMBLY

REED VALVE ASSEMBLY
$154.99
You save $16.01. $171.00
Ships Immediately
1 Items in stock
Required: 2
26
0310441 - J-Clamp
0310441
0310441 ← 0310441

CLAMP, CPS LEAD

CLAMP, CPS LEAD
$3.56
You save 5%. $3.75
Leaves in 3-5 days
Required: 1
27
0350657 - Trunnion Retainer
0350657
0350657 ← 0350657

RETAINER, TRUNNION

RETAINER, TRUNNION
$9.95
You save 13%. $11.50
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
