2007 Evinrude Outboards 150 - E150DBXSUF

GEARCASE section

Change Section

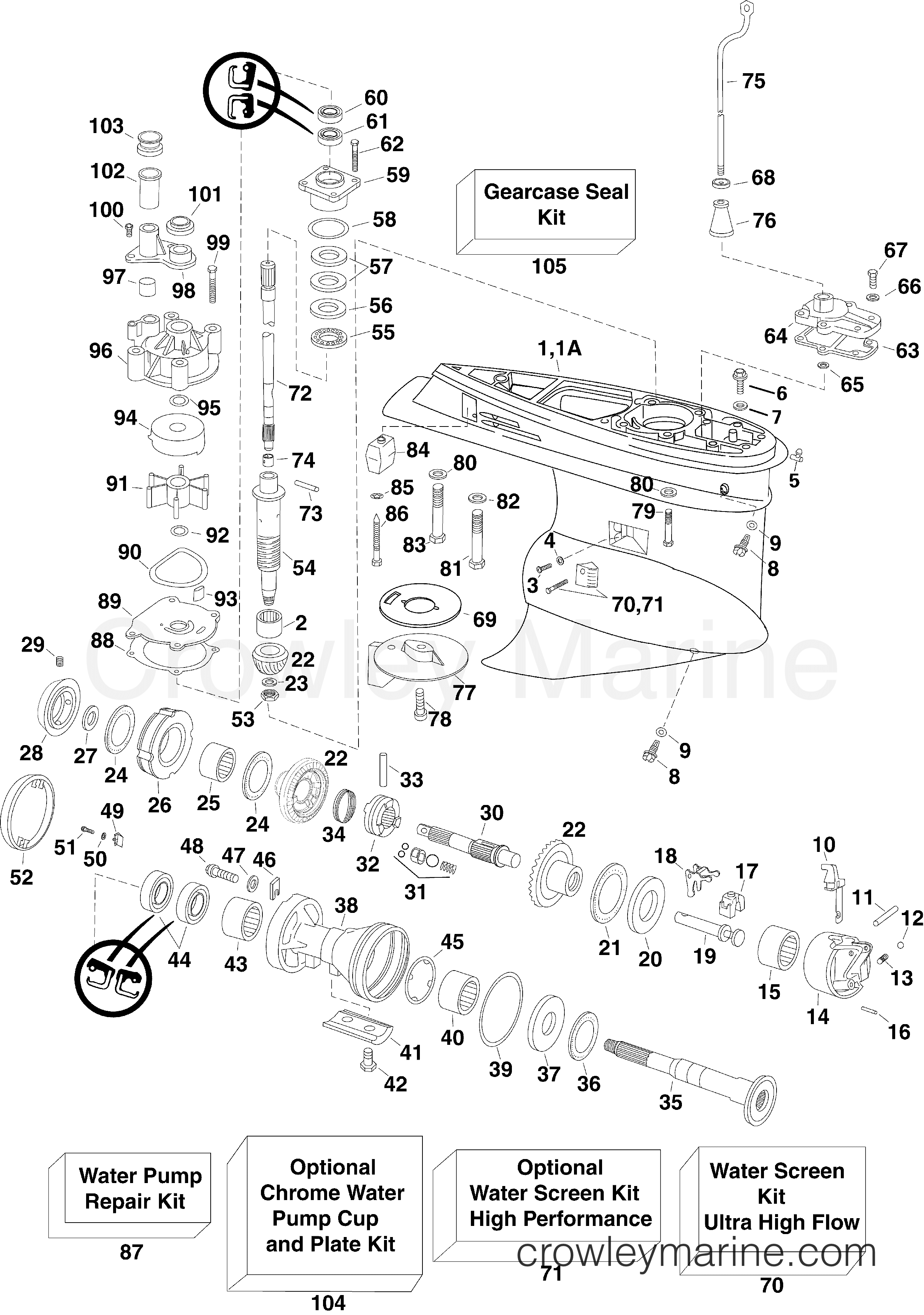

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2007 Evinrude Outboards 150 - E150DBXSUF GEARCASE section
Use two fingers to zoom
and move the diagram
2007 Evinrude Outboards 150 - E150DBXSUF - GEARCASE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

10
0347378 - Detent
0347378
0347378 ← 0347378

*DETENT, SHIFT

*DETENT, SHIFT
$73.86
You save $3.89. $77.75
Leaves in 3-5 days
Required: 1
19
0348484 - Shifter Shaft
0348484
0348484 ← 0348484

*SHAFT, SHIFT

*SHAFT, SHIFT
$69.95
You save $3.55. $73.50
Leaves in 3-5 days
Required: 1
22
5001586 - Coro-Magnm Gearset
5001586
5001586 ← 5001586

*GEAR SET, W/BEARINGS

*GEAR SET, W/BEARINGS
$1,014.00
You save $253.59. $1,267.59
Leaves in 3-5 days
Required: 1
26
0333885 - Bearing Housing
0333885
0333885 ← 0333885

**HOUSING, FORWARD GEAR

**HOUSING, FORWARD GEAR
$329.95
You save $17.55. $347.50
Leaves in 3-5 days
Required: 1
30
5000249 - Clutch Shaft Assembly
5000249
5000249 ← 5000249

*CLUTCH SHAFT ASSEMBLY

*CLUTCH SHAFT ASSEMBLY
$352.93
You save $18.57. $371.50
Leaves in 3-5 days
Required: 1
35
5001578 - Propeller Shaft Assembly
5001578
5001578 ← 5001578

*PROPELLER SHAFT

*PROPELLER SHAFT
$543.00
You save $29.49. $572.49
Leaves in 3-5 days
Required: 1
44
0334950 - Propeller Shaft Seal
0334950
0334950 ← 0334950

**SEAL, PROPSHAFT

**SEAL, PROPSHAFT
Notes: (Contents of GEARCASE SEAL KIT.)
$14.95
You save 18%. $18.29
Ships Immediately
5+ Items in stock
Required: 2
45
0350228 - Retainer
0350228
0350228 ← 0350228

*RETAINER, RING

*RETAINER, RING
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
46
0352741 - Retainer Tab
0352741
0352741 ← 0352741

*TAB, RETAINER

*TAB, RETAINER
$33.25
You save $1.75. $35.00
Leaves in 3-5 days
Required: 2
47
0328743 - Washer
0328743
0328743 ← 0328743

*WASHER, TAB SCREW

*WASHER, TAB SCREW
$4.99
You save 5%. $5.25
Ships Immediately
3 Items in stock
Required: 2
52
0346462 - Labyrinth Ring
0346462
0346462 ← 0346462

*RING, PROPELLER SEAL

*RING, PROPELLER SEAL
$9.99
You save 18%. $12.19
Ships Immediately
2 Items in stock
Required: 1
61
0329923 - Driveshaft Oil Seal (Lower)
0329923
0329923 ← 0329923

**SEAL, LOWER

**SEAL, LOWER
Notes: (Contents of GEARCASE SEAL KIT.)
$9.99
You save 11%. $11.19
Ships Immediately
5+ Items in stock
Required: 1
75
0352808 - Shift Rod
0352808
0352808 ← 0352808

SHIFT ROD - 25"

SHIFT ROD - 25"
$48.21
You save $2.54. $50.75
Leaves in 3-5 days
Required: 1
98
0338893 - Impeller Housing Cover
0338893
0338893 ← 0338893

*COVER, IMPELLER HOUSING

*COVER, IMPELLER HOUSING
$7.99
You save 12%. $9.09
Ships Immediately
3 Items in stock
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
