2004 Evinrude Outboards 200 - E200FCXSRB

POWER TRIM AND TILT section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

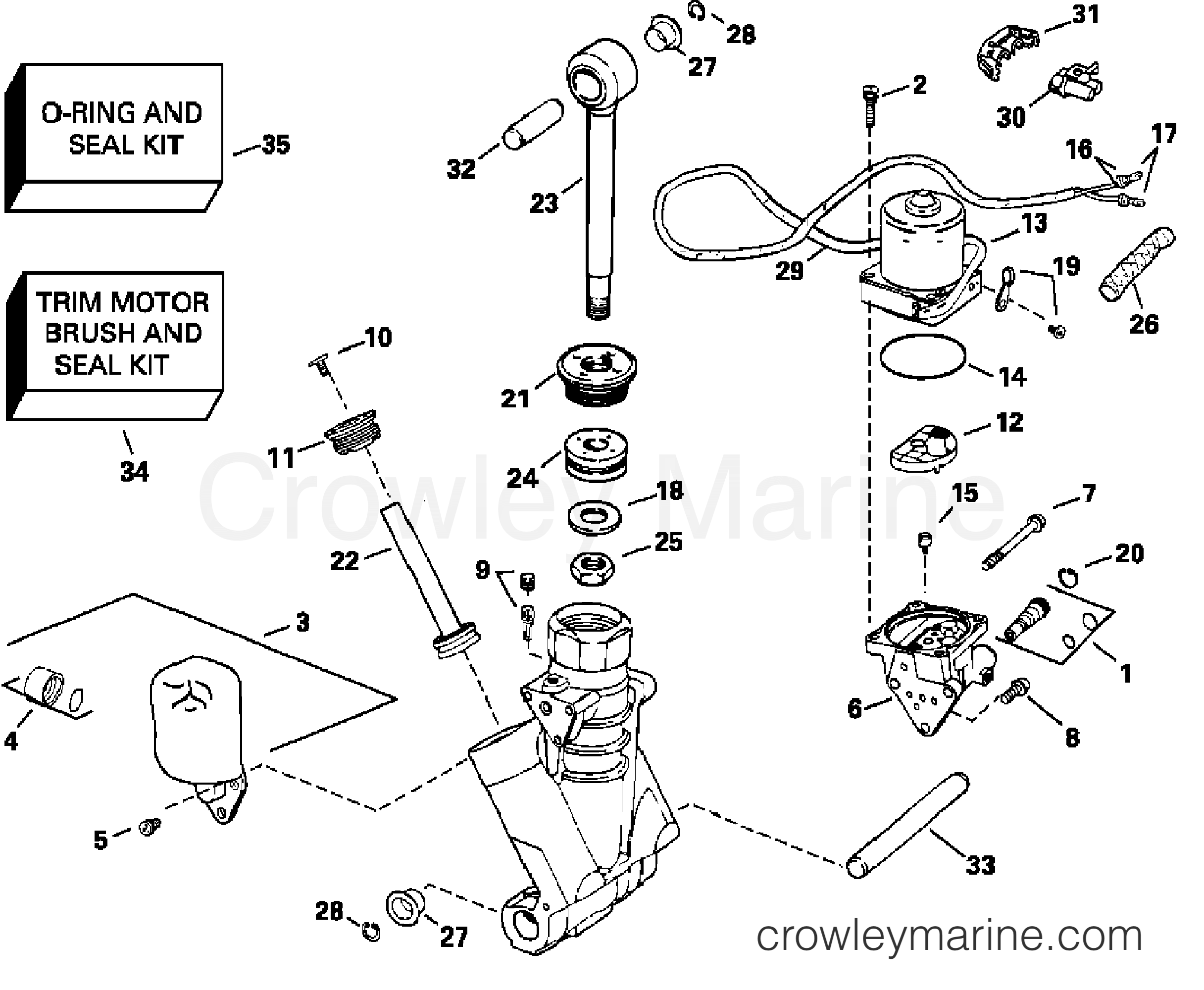

2004 Evinrude Outboards 200 - E200FCXSRB POWER TRIM AND TILT section
Use two fingers to zoom
and move the diagram
2004 Evinrude Outboards 200 - E200FCXSRB - POWER TRIM AND TILT section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

9
0337530 - Plug & Screen
0337530
0337530 ← 0337530

*PLUG & SCREEN

*PLUG & SCREEN
$74.95
You save $4.80. $79.75
Leaves in 3-5 days
Required: 1
15
0914053 - Coupling-Pump
0914053
0914053 ← 0914053

**DRIVE, PUMP

**DRIVE, PUMP
$13.86
You save 5%. $14.59
Leaves in 3-5 days
Required: 1
16
3010063 - Wire Seal
3010063
3010063 ← 3010063

**SEAL, WIRE

**SEAL, WIRE
$6.26
You save 5%. $6.59
Leaves in 6-8 days
Required: 2
18
0324385 - Rod end Washer
0324385
0324385 ← 0324385

*WASHER

*WASHER
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
23
0436390 - Rod & Eye Assembly
0436390
0436390 ← 0436390

*ROD & EYE

*ROD & EYE
$632.00
You save $34.00. $666.00
Leaves in 3-5 days
Required: 1
24
0435264 - Piston Assembly Tilt
0435264
0435264 ← 0435264

*PISTON ASSEMBLY

*PISTON ASSEMBLY
$117.80
You save $6.20. $124.00
Leaves in 3-5 days
Required: 1
25
0324390 - Hex Nut
0324390
0324390 ← 0324390

*NUT

*NUT
$16.15
You save 5%. $17.00
Leaves in 3-5 days
Required: 1
29
0513817 - Braided Sleeve
0513817
0513817 ← 0513817

SLEEVE, MOTOR LEADS

SLEEVE, MOTOR LEADS
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
31
3010050 - Secondary Lock
3010050
3010050 ← 3010050

LOCK, CONNECTOR

LOCK, CONNECTOR
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
