2004 Evinrude Outboards 200 - E200FCXSRB

OIL SYSTEM section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

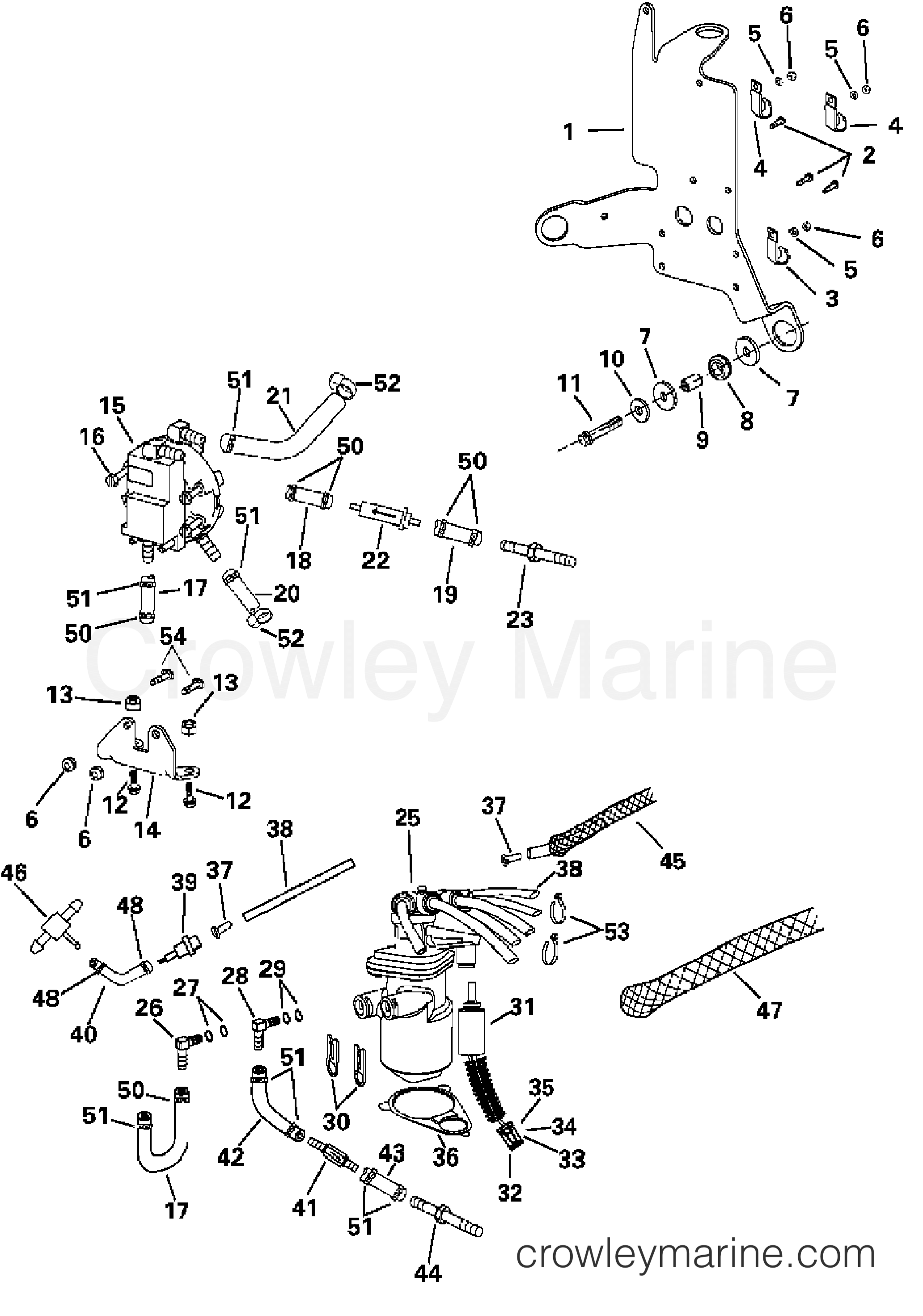

2004 Evinrude Outboards 200 - E200FCXSRB OIL SYSTEM section
Use two fingers to zoom
and move the diagram
2004 Evinrude Outboards 200 - E200FCXSRB - OIL SYSTEM section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
0348737 - Clamp
0348737
0348737 ← 0348737

CLAMP, OIL HOSES

CLAMP, OIL HOSES
$4.75
$4.75
Leaves in 3-5 days
Required: 1
13
0313022 - Lock Nut
0313022
0313022 ← 0313022

NUT, BRACKET TO INJECTOR

NUT, BRACKET TO INJECTOR
$7.99
You save 11%. $9.00
Ships Immediately
4 Items in stock
Required: 2
28
5000912 - Elbow Fitting Assembly
5000912
5000912 ← 5000912

FITTING, OIL INJECTOR OUTLET

FITTING, OIL INJECTOR OUTLET
Notes: Included with P/N 5004920
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
34
0514788 - Lead Plug Seal
0514788
0514788 ← 0514788

*SEAL

*SEAL
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
36
0346889 - Retainer
0346889
0346889 ← 0346889

RETAINER, SWITCH

RETAINER, SWITCH
$8.26
You save 5%. $8.69
Leaves in 6-8 days
Required: 1
41
5001054 - Housing & Valve Assembly
5001054
5001054 ← 5001054

PRESSURE REGULATOR

PRESSURE REGULATOR
Notes: Included with P/N 5004920
$134.95
You save $7.30. $142.25
Leaves in 3-5 days
Required: 1
47
0513817 - Braided Sleeve
0513817
0513817 ← 0513817

BRAIDED SLEEVE

BRAIDED SLEEVE
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
48
0348838 - (10.5mm) Clamp
0348838
0348838 ← 0348838

CLAMP, 10.5MM

CLAMP, 10.5MM
$2.99
You save 6%. $3.19
Ships Immediately
5+ Items in stock
Required: 2

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
