2004 Evinrude Outboards 200 - E200FCXSRB

MIDSECTION section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

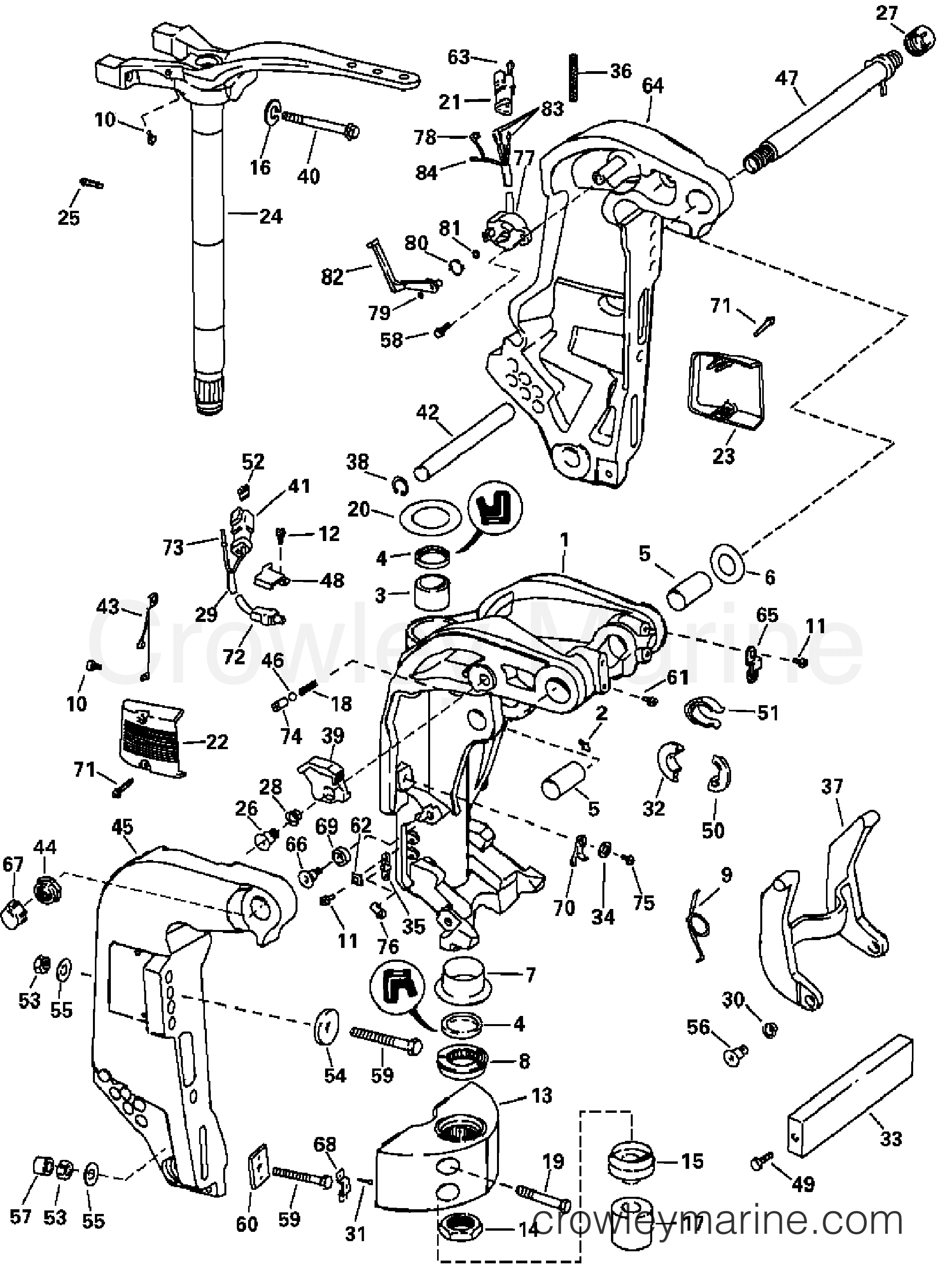

2004 Evinrude Outboards 200 - E200FCXSRB MIDSECTION section
Use two fingers to zoom
and move the diagram
2004 Evinrude Outboards 200 - E200FCXSRB - MIDSECTION section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
0434691 - Bracket Assembly
0434691
0434691 ← 0434691

SWIVEL BRACKET

SWIVEL BRACKET
Notes: 20 in. Models
$647.00
You save $35.00. $682.00
Leaves in 3-5 days
Required: 1
1
0434724 - Swivel Bracket 25"
0434724
0434724 ← 0434724

SWIVEL BRACKET

SWIVEL BRACKET
Notes: 25 in. Models
$701.00
You save $37.00. $738.00
Leaves in 3-5 days
Required: 1
1
0438084 - Swivel Bracket
0438084
0438084 ← 0438084

SWIVEL BRACKET

SWIVEL BRACKET
Notes: 30 in. Models
$1,175.00
You save $293.75. $1,468.75
Leaves in 3-5 days
Required: 1
10
0335200 - Screw
0335200
0335200 ← 0335200

SCREW, GROUND LEAD

SCREW, GROUND LEAD
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 2
11
0335200 - Screw
0335200
0335200 ← 0335200

SCREW, RETAINER

SCREW, RETAINER
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 2
13
0338744 - Mount
0338744
0338744 ← 0338744

MOUNT BRACKET

MOUNT BRACKET
Notes: 25 & 30 in. Models
$492.58
You save $25.92. $518.50
Leaves in 3-5 days
Required: 1
23
0335475 - Port Cover
0335475
0335475 ← 0335475

COVER, STERN BRACKET, PORT

COVER, STERN BRACKET, PORT
Notes: Optional
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
24
5009615 - ARM&SHAFT AY,STRG
5009615 ← 0434164
5009615

STEERING ARM ASSEMBLY

STEERING ARM ASSEMBLY
Notes: 200FPL, 200FHL, 225FPL, and 225FHL Models, New P/N for 2004
$494.95
You save $26.05. $521.00
Leaves in 3-5 days
Required: 1
25
0123692 - Hose Connector
0123692
0123692 ← 0123692

CONNECTOR, SPEEDO HOSE

CONNECTOR, SPEEDO HOSE
Notes: 20 in. Models
$.99
You save 34%. $1.49
Ships Immediately
5+ Items in stock
Required: 1
35
0336467 - Retainer
0336467
0336467 ← 0336467

SUPPORT, TRAIL LOCK

SUPPORT, TRAIL LOCK
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 1
39
0335485 - Trail lock Lever
0335485
0335485 ← 0335485

LEVER, TILT LOCK

LEVER, TILT LOCK
$33.25
You save $1.75. $35.00
Leaves in 3-5 days
Required: 1
40
0912345 - Upper Mount Screw
0912345
0912345 ← 0912345

SCREW, UPPER MOUNT

SCREW, UPPER MOUNT
$26.13
You save $1.37. $27.50
Leaves in 3-5 days
Required: 2
41
0514696 - 2 Pin Rcpt Connector
0514696
0514696 ← 0514696

CONNECTOR, 2-PIN

CONNECTOR, 2-PIN
$12.11
You save 5%. $12.75
Leaves in 3-5 days
Required: 1
49
0324816 - Screw
0324816
0324816 ← 0324816

SCREW, ANODE

SCREW, ANODE
$12.99
You save 6%. $13.75
Ships Immediately
5+ Items in stock
Required: 2
52
0514697 - Lock Wedge
0514697
0514697 ← 0514697

WEDGE, 2-PIN

WEDGE, 2-PIN
$2.61
You save 5%. $2.75
Leaves in 3-5 days
Required: 1
